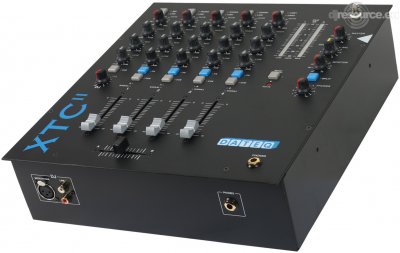

Dateq XTC 2

Dateq presents the XTC II, The new generation Dance mixer.

Predecessor : Dateq XTC

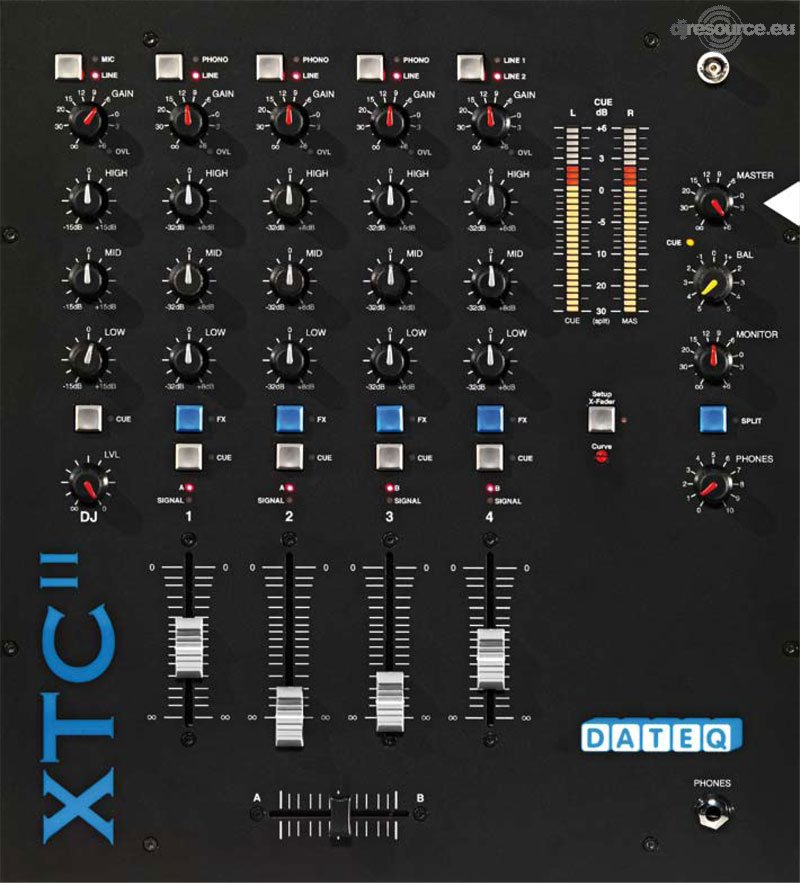

Features

4 Channels 10 inputs
The XTC II is a 4 + 1 channel mixer with inputs for nine stereo sources and a microphone. The FX-Send and Return function allows you to feed a signal through an effects processor and assign it to each individual channel. This advanced DJ mixer provides skilled DJs with creative challenges. A pure compact mixer, functional and rock solid.

The XTC II has four 60-mm VCA controlled fader channels and a separate microphone and line channel. Ten inputs (three phono inputs, six line inputs and a separate microphone input) provide flexibility and make source replugging a thing of the past.

Equalizers
With the very effective 3-band equalizer it is easy to make any adjustments you have in mind. The EQ system enables level control within a -32db to +8db range for fine-tuning high, mid and low bands. The vocally adapted 3-Band equalizer on the first microphoneline channel enables level control within a -15 to +15 dB range for high, mid and low bands.

Assignable Cross Fader
The crossfader can be easily assigned to each of the four input channels. The crossfader is VCA
controlled to prevent equipment failure. Fader curve adjust enables you to stageless modify the cross fader curve. From soft 'House' to hard 'Scratch'. The digital router allows flexible connectivity for a wide range of external effects equipment. This allows you to feed a signal through an external effects processor and assign it to each individual channel.

Cue Split Functionallity
Each channel has cue facilities with Dateq ‘split’ system, allowing you to simultaneously monitor both the cue signal and the master channel on your headphones.

Large VU Meter
A large VU meter gives an exact overview of the cue level indicating both the cue signal and the
effect send & return signal preventing overload distortion.

Software controlled Limiter
A software-controlled limiter on the output ensures flawless output control and prevents overload
distortion.

Outputs & Connectivity

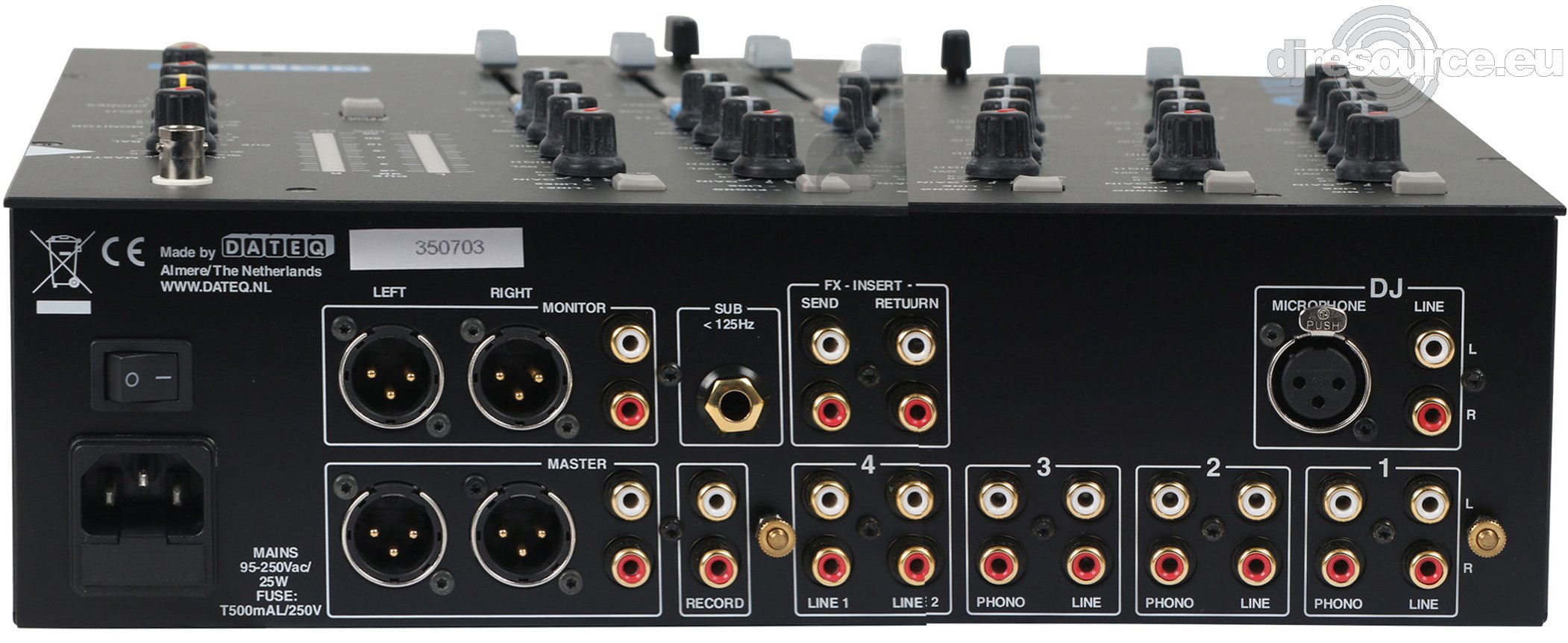

The XTC II is equipped with all the outputs you need. Both Master and Monitor have balanced XLR connections as well as stereo Chinch connections. The XTC II also features a record-out and an output for sub-low speakers.

Specifications

3 faders, 4 kanaals stereo mixer
3 Phono in , 1 x Mic & 3 Line in
3-voudige toonregeling per kanaal
Cross fader met Transform buttons
Master & Booth uitgang
Hoofdtelefoon-uitgang met 'split cue'
VCA Alps 60mm faders
Dimensions (WxDxH) : 286 x 355 x 107mm
Cutout hole (WxD) : 250 x 336mm
