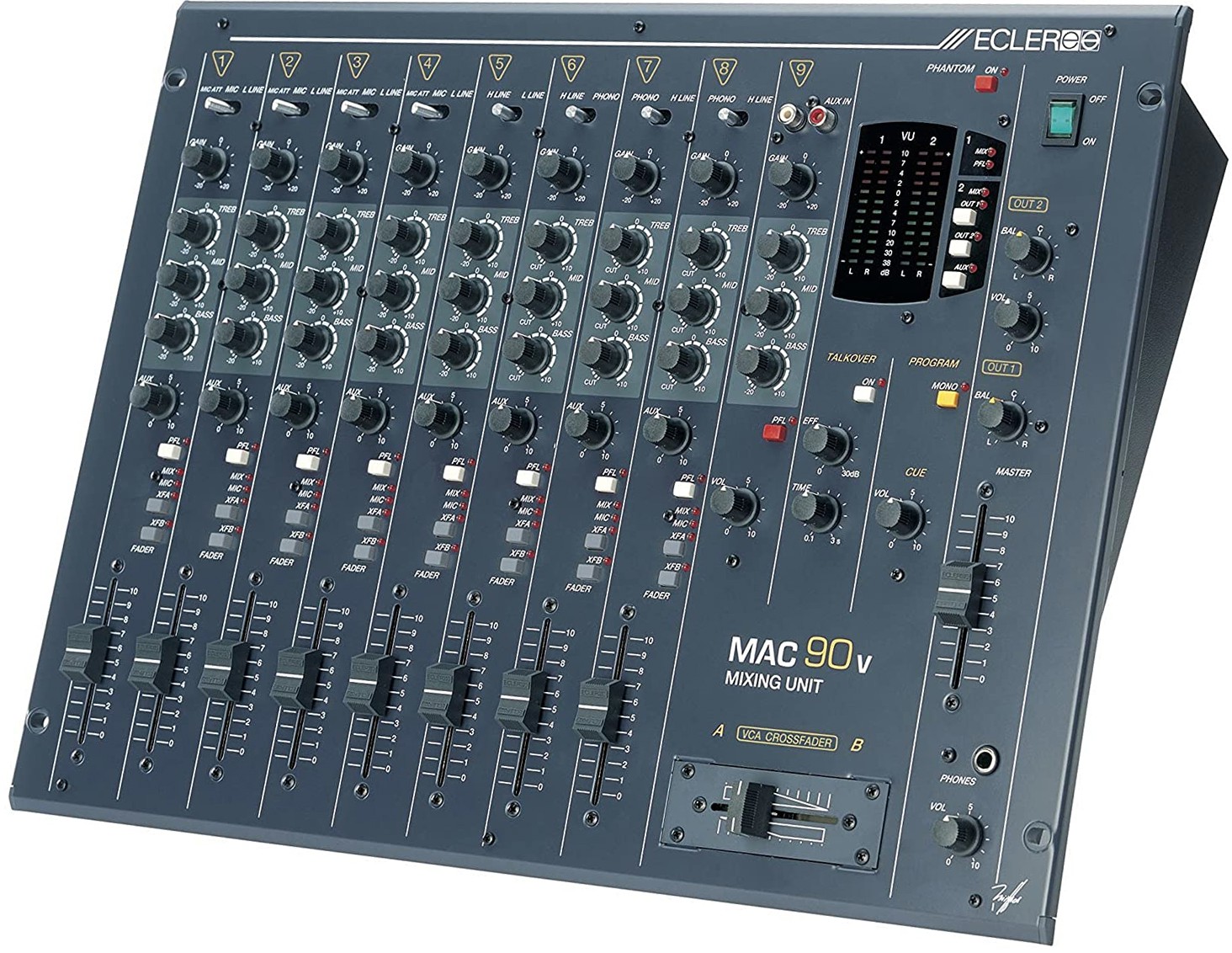

Ecler MAC90V

High profile electronics
The MAC series simply features today’s best analogue components available in the market. The circuit boards of the MAC series have been designed with the latest generation of Surface Mounting Technology (SMD). The line faders are 60mm high-end professional slide potentiometers. Last but not least, the MAC series employs an oversized internal power supply providing the best sound dynamics and rating the most excellent signal/noise ratio.

Inputs and outputs
The MAC 90v is a 8+1 channel 19 inch mixer with 18 different inputs:
3 PHONO
4 H-LINE (high lines for CD, DAT or MP3 players)
5 L-LINE (low lines for tape, samplers...)
4 MIC

The MAC 90v includes the following outputs:
OUT1 balanced
OUT2
CUE
REC1
> REC2

Total sound control
Each channel is equipped with independent GAIN control with ±20dB adjustment range, as well as a powerful 3 band tone control ranging from -20dB to 10 dB on channels 1 to 5/3, and from CUT to +10dB on all other channels.
MAC series mixers are also equipped with phantom power supply for condenser microphone (including individual internal ON/OFF settings) and assignable TALKOVER function with EFFICIENCY and RECOVERY time controls.

Flexible monitoring
Each channel is also equipped with pre-listening function (PFL) for headphones monitoring, which can be also done through the CUE output (with dedicated volume control) and an external amplifier.

A dual VU-Meter displays on the left prefader level of the channels which have the PFL switch activated or the main mix level when none of the PFL switches is activated, and on the right the signal level of the output selected in the section below it. If none of these switches is activated, the main mix level will be displayed.

There is independent Balance for each channel and L+R switch for summing both stereo signals.

VCA crossfader
The MAC 70v features the ECLER removable modular VCA crossfader assignable to any channel via push-button with associated LED indicator. The crossfader send buses can also be used as auxiliary sends, for which separate outputs exist on the rear panel. In this case, the crossfader can be replaced with a blank cover (Ref. BC01).
