Model : NUO 3.0

Brand : Ecler
Brand website :

Category : Mixer

This product has been discontinued

Vote :

Nobody votes this as Favourite yet.

 Show Booths

2 times used in 2 DJ Booths

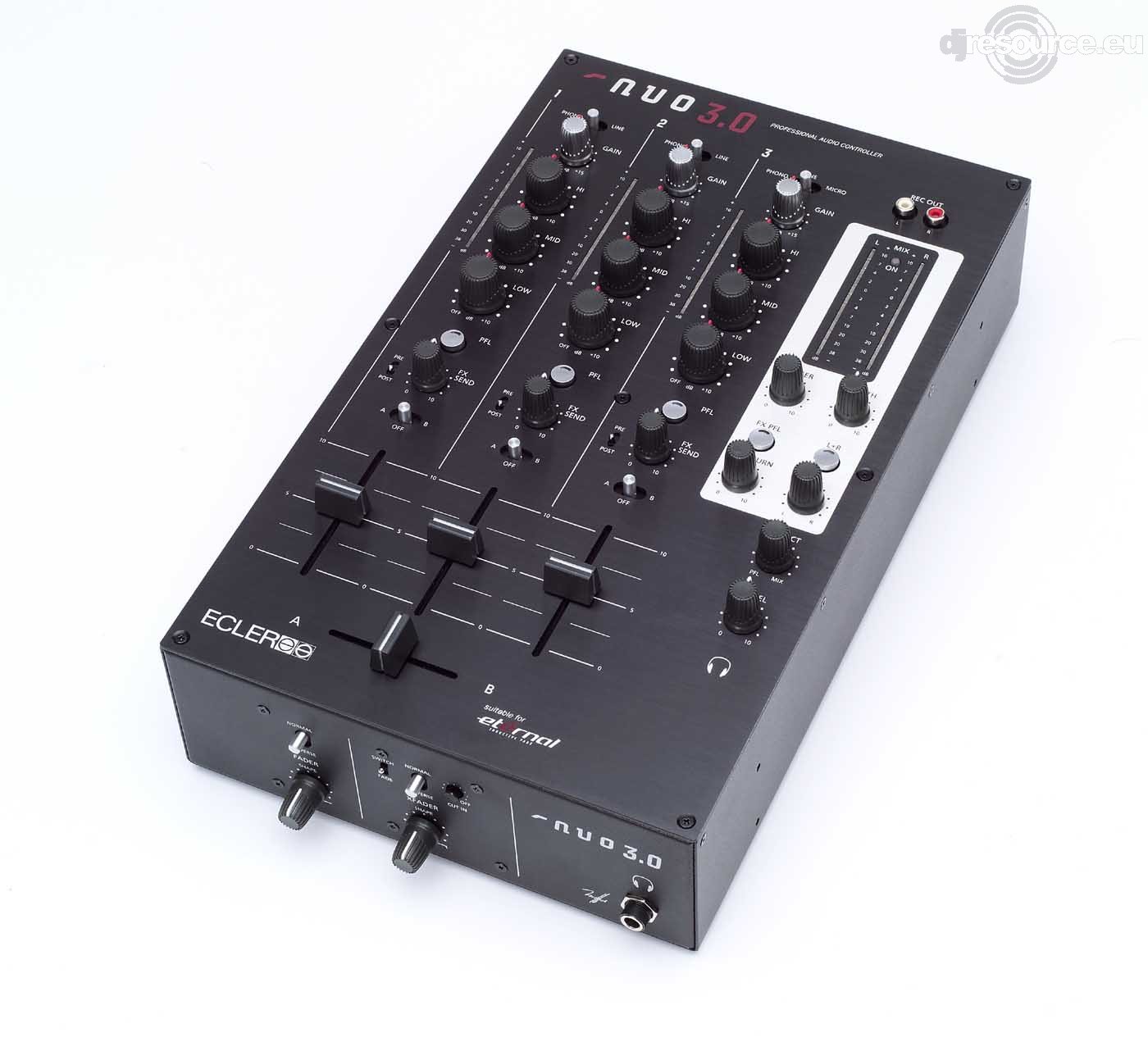

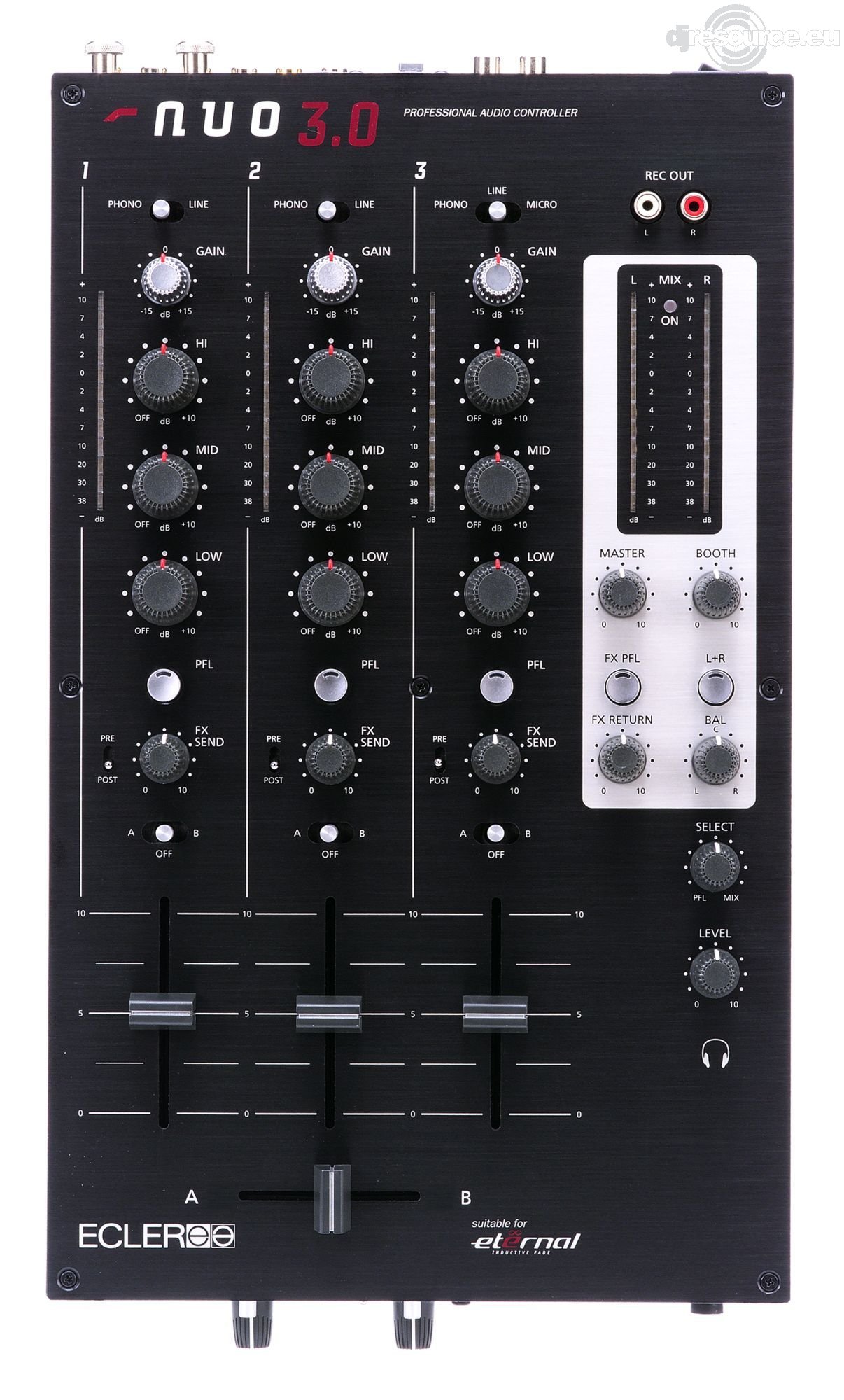

Ecler NUO 3.0 Mixer

The NUO 3.0 (basically an upgraded Nuo 3) is a 3 channel analogue mixer addressed to the professional DJ of any kind, in despite of the music style.

It features the professional characteristics that made its predecessors acclaimed worldwide, and it equips the best analogue components available in the market place in order to obtain the highest sound performance.

The NUO 3.0 is tailored to any kind of DJ and music style thanks to its versatility and plenty of features, such as the precise and ergonomic full cut EQ, professional FX loop with Send and Return control in pre or post fader mode, faders curve adjustments and suitability for the awarded magnetic ETERNAL crossfader for the professional scratch DJ. Whatever the music style you play, the NUO 3.0 will please all your needs.

Its superb sound quality and robust format, plus balanced XLR Master output and Booth output for monitoring make it also a perfect mixer for small installations.


feature 3+1 Channel Stereo Mixer
feature 3 PHONO inputs
feature 3 LINE inputs
feature 1 balanced XLR Microphone input
feature Master output – XLR and RCA
feature Booth output – RCA
feature VU Meter per channel
feature 3 band full cut EQ
feature Extra large ergonomic EQ knobs
feature FX Send control per channel
feature FX Pre/Post fader selector
feature Master FX Return and FX PFL control
feature Fully assignable crossfader
feature 60mm long life VCA faders
feature 45mm long life VCA crossfader
feature Fader and crossfader shape adjustment
feature Crossfader Reverse and Cut-In
feature Crossfader suitable for ETERNAL


feature Frequency Response (line) : 10 - 30kHz
feature THD+N (line) : < 0,07%
feature Signal to Noise Ratio (line) : >95dB
feature Phantom voltage : +18vDC / 5mA max.
feature Dimensions : 370 x 224 x 80 mm
feature Weight : 3,6 kg
