Ecler NUO 4.0

Submitted by jannickv  Flag on 16-03-2008 @ 11:49
Last edited by Lead  Flag on 10-01-2020 Images: Lead

Model : NUO 4.0

Brand : Ecler
Brand website :

Category : Mixer

This product has been discontinued

Vote :

1 votes for Favourite Mixer

 Show Booths

1 times used in 1 DJ Booths

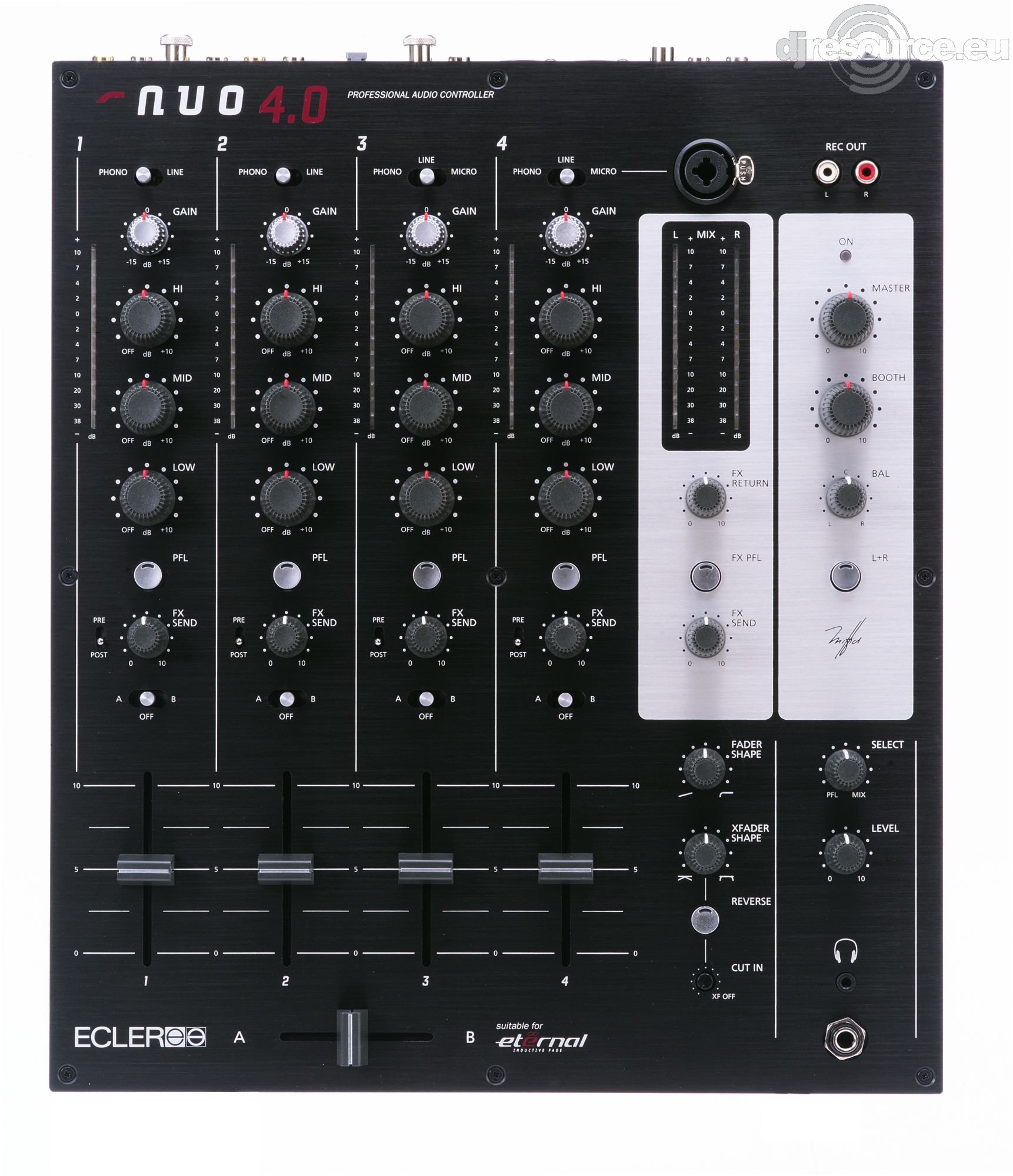

Ecler NUO 4.0 Mixer

The NUO 4.0 (basically an upgrade Nuo 4) is a 4 channel analogue mixer addressed to professional DJ and installations.

It features the professional characteristics that made its predecessors acclaimed worldwide, and it equips the best analogue components available in the market place in order to obtain the highest performance.

The NUO 4.0 is tailored to any kind of DJ and music style thanks to its versatility and plenty of features, such as the precise and ergonomic full cut EQ, professional FX loop with Send and Return control in pre or post fader mode, faders curve adjustments and suitability for the awarded magnetic ETERNAL crossfader for the professional scratch DJ. Whatever the music style you play, the NUO 4.0 will please all your needs.

Its superb sound quality and robust format, plus two balanced XLR microphone inputs and two balanced XLR outputs – for Master and Booth – make it also a perfect mixer for installations.


feature 4 mixing channels
feature 4 Phono and 4 Line inputs
feature 2 balanced XLR Microphone inputs
feature Master output – XLR and RCA
feature Booth output – RCA
feature VU Meter per channel
feature 3 band full cut EQ
feature Extra large ergonomic EQ knobs
feature FX Send control per channel
feature FX Pre/Post fader selector
feature Master FX Send, FX Return and FX PFL control
feature Fully assignable crossfader
feature 60mm long life VCA faders
feature 45mm long life VCA crossfader
feature Fader and crossfader shape adjustment
feature Crossfader Reverse and Cut-In
feature Crossfader suitable for ETERNAL
feature Gain control inputs 1-4 ±15dB *(±6dB )
feature Equalizers
- LOW +10 / -30dB
- MID +10 / -25dB
- HI +10 / -30dB


feature Frequency Response (LINE) : 10Hz-30kHz
feature THD+N (LINE) : <0.07%
feature Signal Noise Ratio (LINE) : >95dB
feature Phantom voltage : +18VDC/5mA max.
feature Power consumption : 38VA
feature Dimensions : 370x320x80mm
feature Weight : 4.8kg
