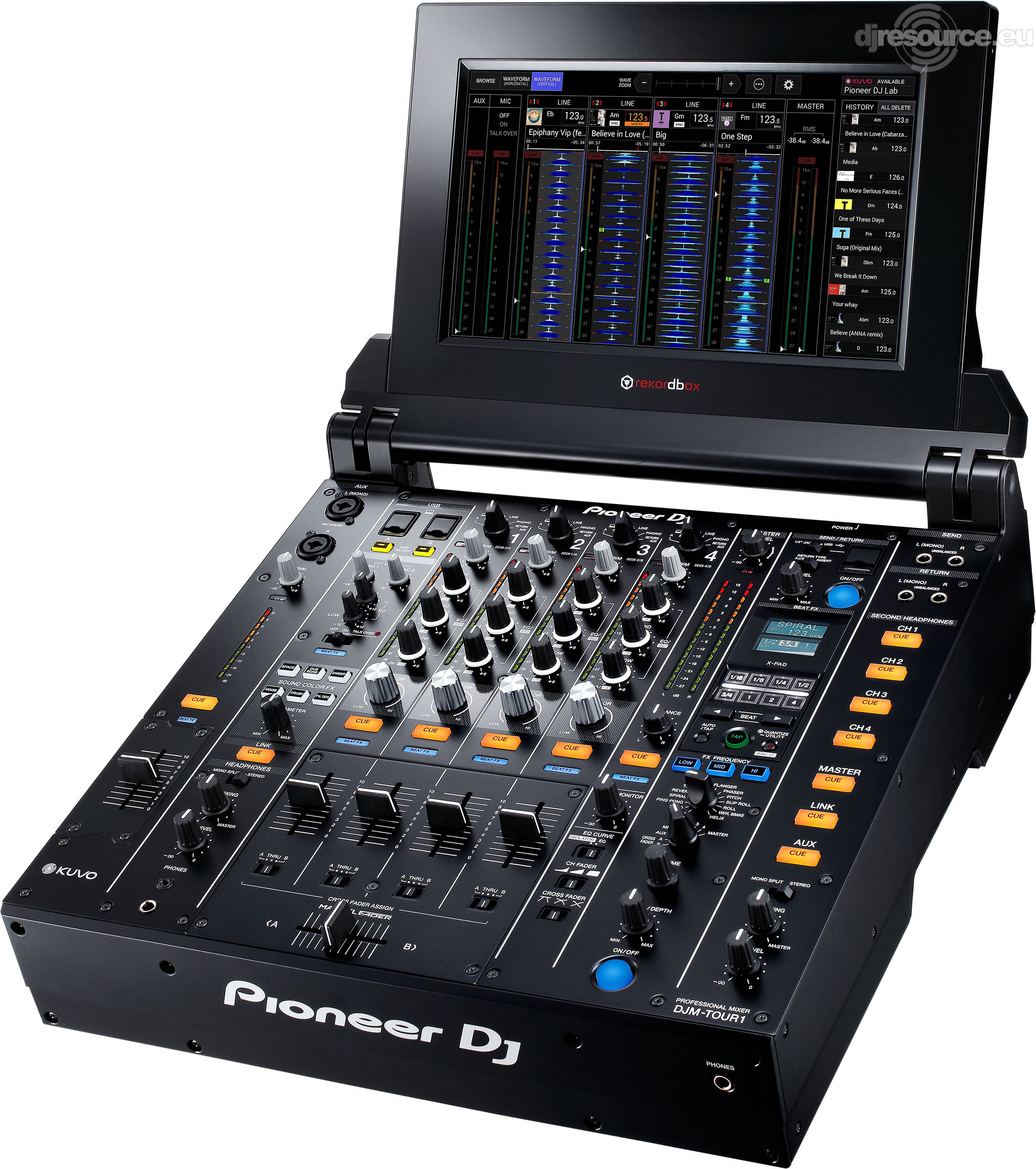

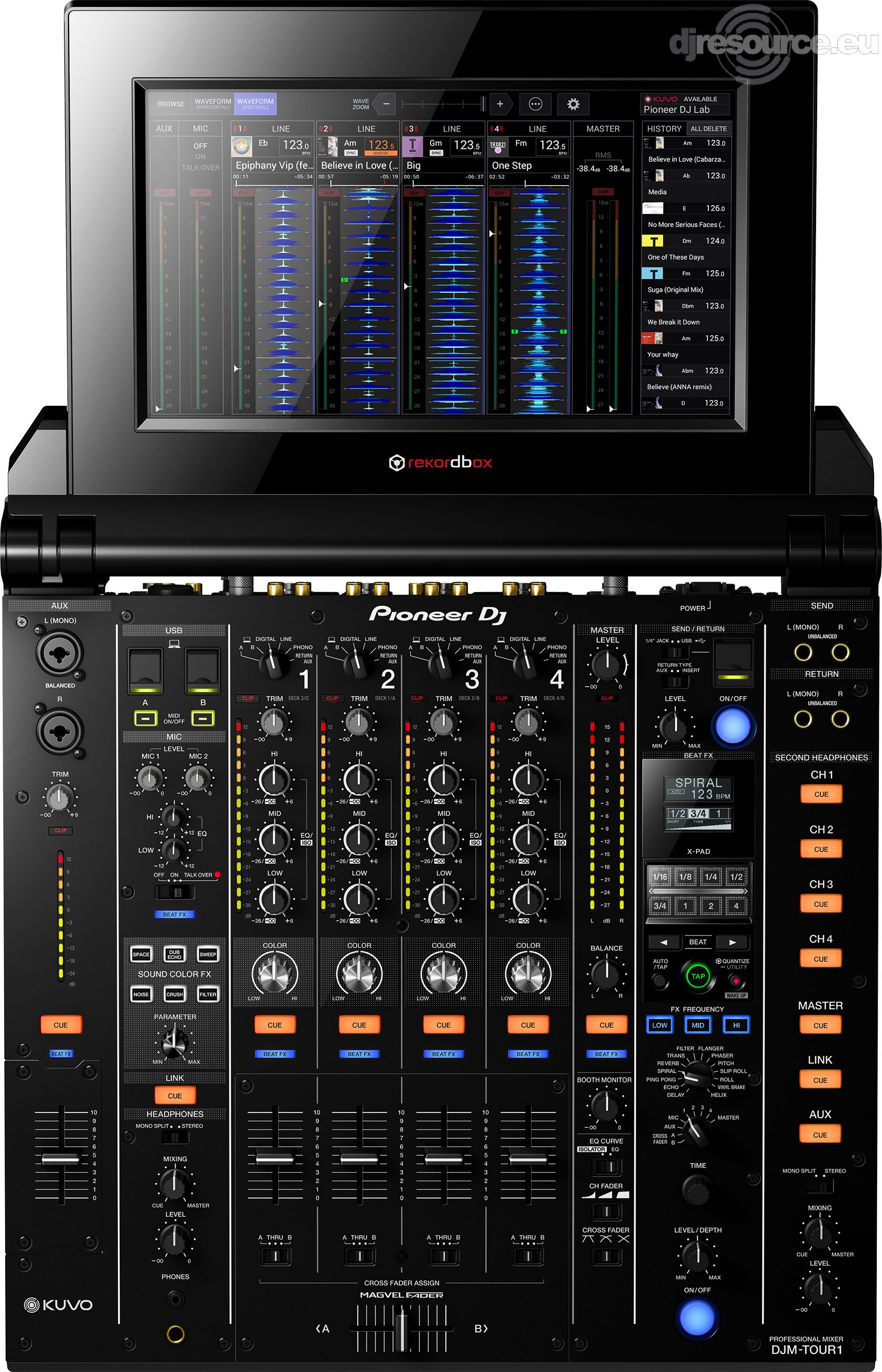

The DJM-TOUR1 is a festival-ready mixer with the highest sound quality possible, it has a 13-inch full color touch screens that give you instinctive, confident control when it matters most.

The CDJ-TOUR1 multiplayer and DJM-TOUR1 mixer take the professional sound quality of the NXS2 setup and add the components needed to deliver that performance in large venues such as festivals and arenas.

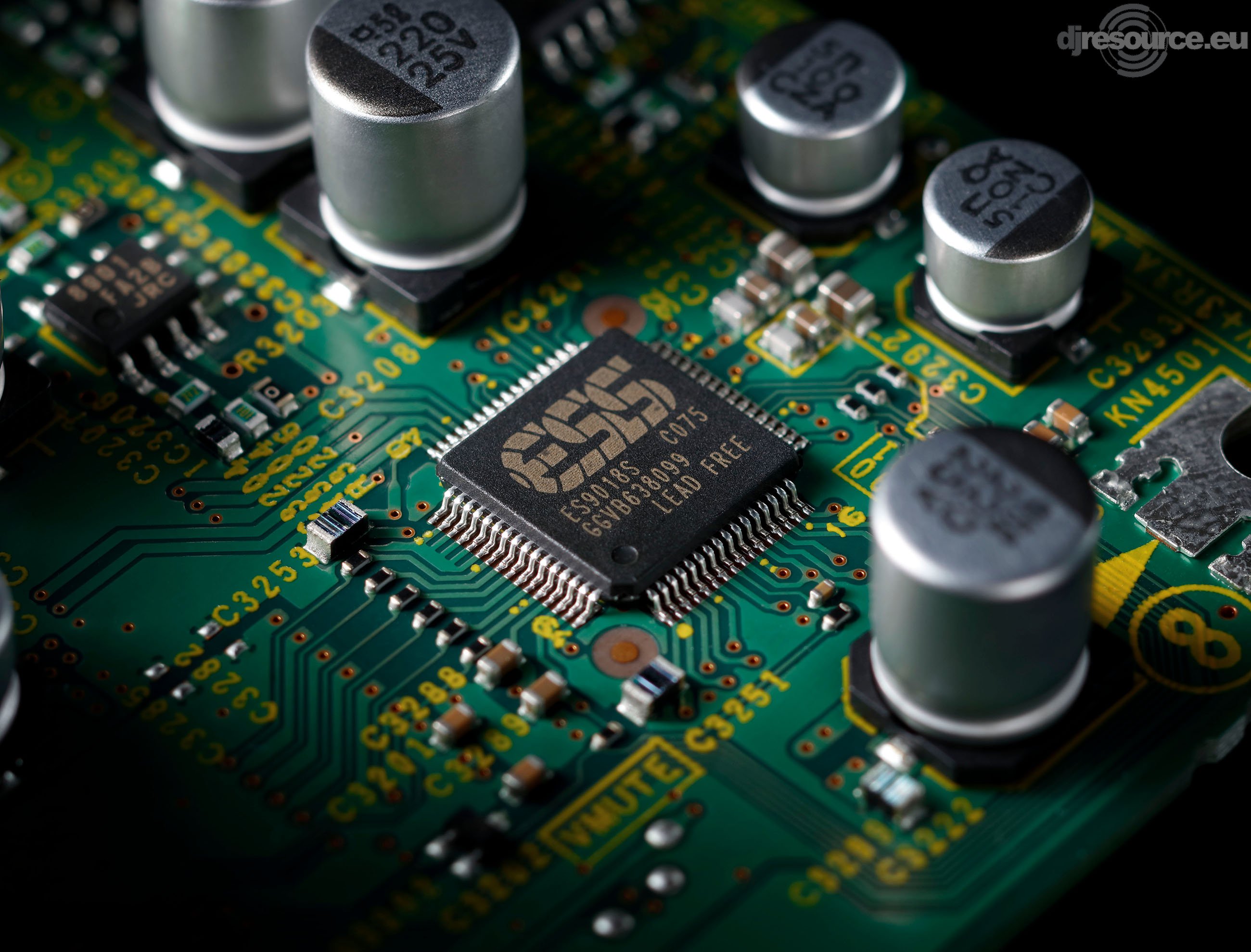

Both models have an ESS Technology 32-bit D/A converter to eliminate low noise and distortion and give a clear, crisp sound at scale. The DJM-TOUR1 is the first mixer to have a pro audio grade AES/EBU digital output, so you can connect directly to front of house – even over long distances – with no loss of sound quality.

Main Model : Pioneer DJM-900NXS2

Features

4+2 Channel Mixer
OLED Display
Larger Color FX knobs
Beat FX Indicator on each channel
Beat FX Frequency Selector/bypass
Improved EQ and Gain curves
Double sized X-Pad for Effect Parameter control
6 Sound Color FX manual filters : Space, Dub Echo, Sweep, Noise, Crush, Filter
13 Beat FX, beat synced : Delay, Echo, Ping Pong, Spiral, Reverb, Trans, Filter, Flanger, Phaser, Pitch, Slip Roll, Roll, Vinyl brake, Helix(Freeze)
X-Pad activates effect when used
Inter App support for Effect Apps on tablets
Send/Return selectable as Aux or Insert
Magval Crossfader, each channel assignable, can be disabled
Double USB-B Inputs on Top
Faders with steel rails and sideways mounted circuit
P-Lock Fader Caps prevent loosing fader caps
2 Independant Headphone sections
Quantized Beat FX
ProDJ Link Support
DVS Supported
Beat Indicator Display
Send/Return assignable to each Channel, Crossfader, Mic or Master
Return possible on every channel
2 Microphone with Trim, Advanced Talkover and shared 2 Band EQ
Beat FX Time control, Beat skip buttons and variable control, blocks in display lights up at synced times (¼, ½, 1, 2 etc)
BPM Counter Display
Auto BPM/Tap
3 step Cross Fader Curve adjust
3 step Channel Fader Curve adjust
Per Channel : PFL Cue, 3 Band EQ, Trim, Faderstart (ProDJ Link)
Equalizer Selectable : -26dB or -∞ Isolators
PFL Mono Split
15 segments VU Meter
Master Volume Rotary
Master Balance control
Master Mono/Stereo Switch
Booth Monitor Output
Record Output

Specifications

Inputs : 4 Phono(RCA), 4 Line(RCA), 4 Digital(RCA), 2 Mic(XLR Jack Combo & Jack)

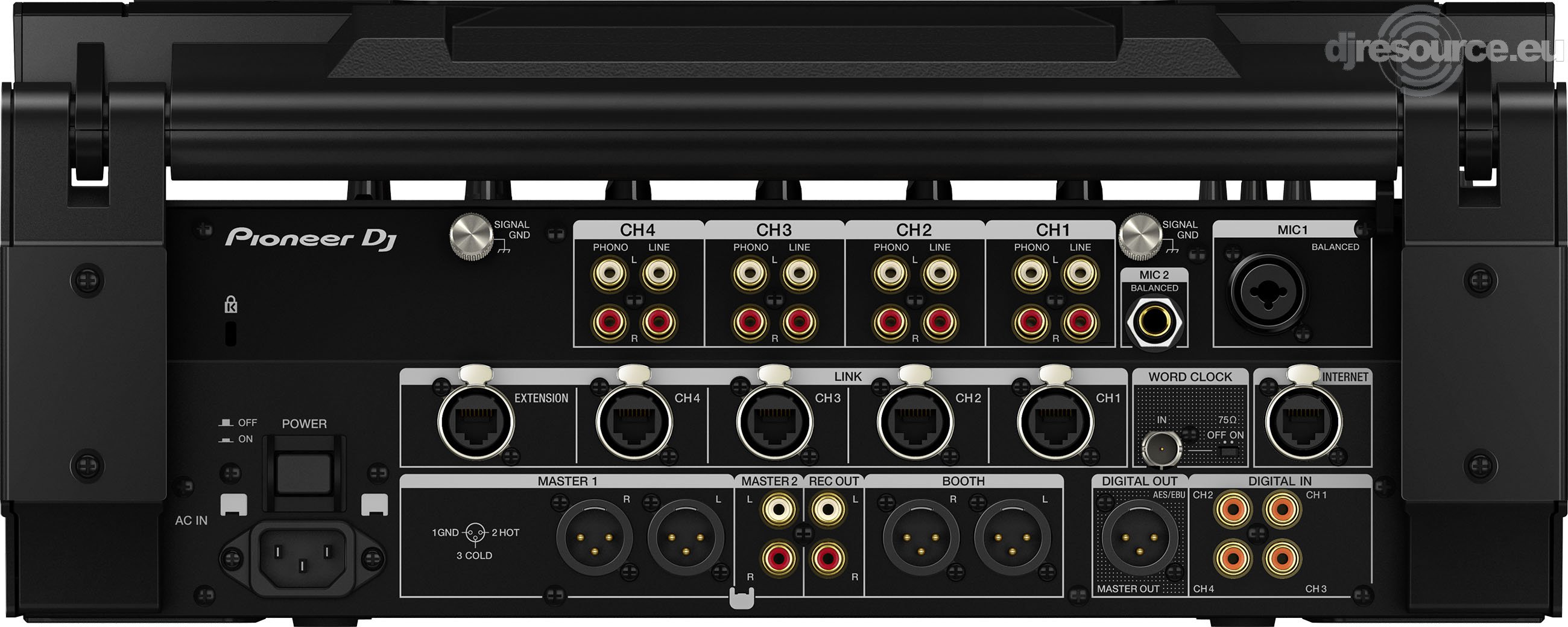

Outputs : Master (XLR, RCA, Digital (AES/EBU), Record(RCA), Booth(Jack), 2x Headphones(Jack, Mini Jack)
Connections : 2 USB-A, USB-B, Send/Return(Jack), ProDJ Link(USB, Ethernet/Neutrik Ethercon), MIDI(DIN), Bigger Ground Terminals
EQ Low : -26 +6dB @70Hz
EQ Mid : -26 +6dB @ 1kHz
EQ High : -26 +6dB @13kHz
Mic EQ Low : -12 +12dB @ 100Hz
Mic EQ High : -12 +12dB @ 10kHz

Mixing Processor : 64bit floating point LME49720
Processing : 96kHz 24bit
DA Converter : 32bit AK439
AD Converter : 24 bit
61 Assignable MIDI channels and clock
Frequency Response : 20Hz - 40kHz
Signal to Noise : 105dB
Distortion(THD) : 0.005%
Crosstalk : 82dB
Power Supply : 220-240VAC @ 50/60Hz
New Power Circuit
Dimensions Closed lid (WxDxH) : 385 x 451 x 178mm (during transport)

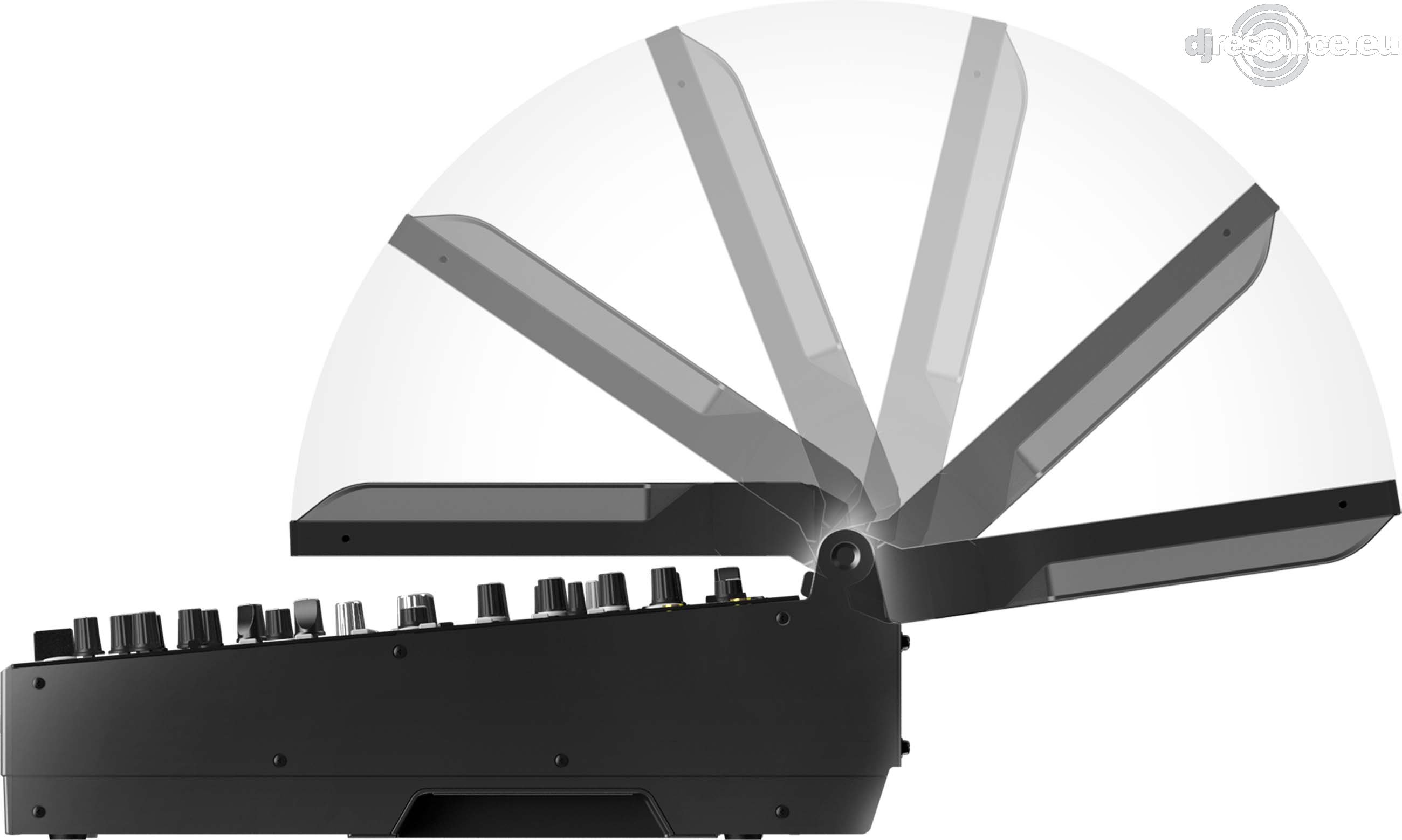

Lid open in most upright position : 385 x 451 x 418mm
Weight : 16.1kg
