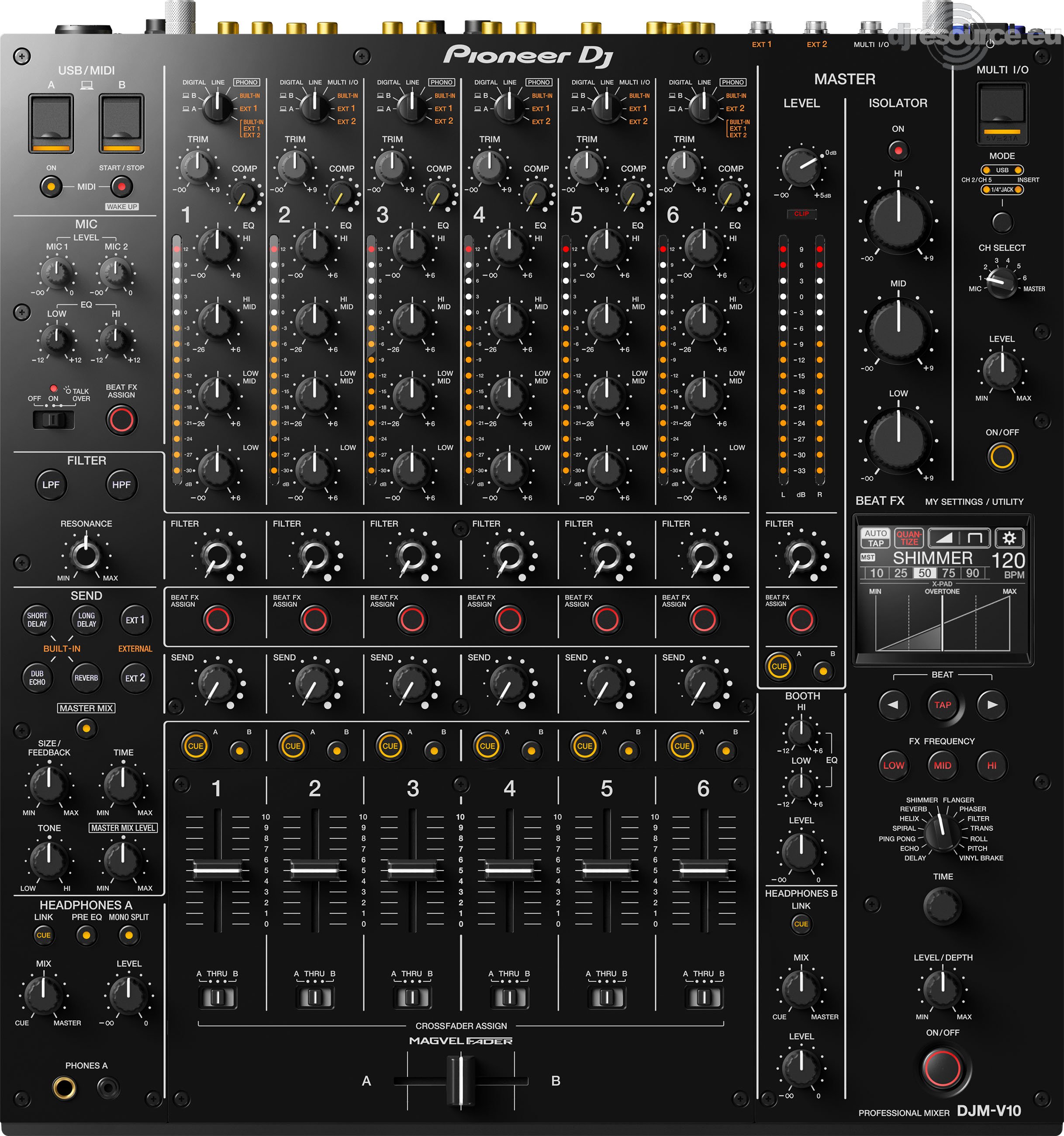

The DJM-V10 is a new breed of mixer, built to enable the most creative DJs to craft original soundscapes. This 6-channel unit produces warm audio with energy and presence, and it’s loaded with unique features.

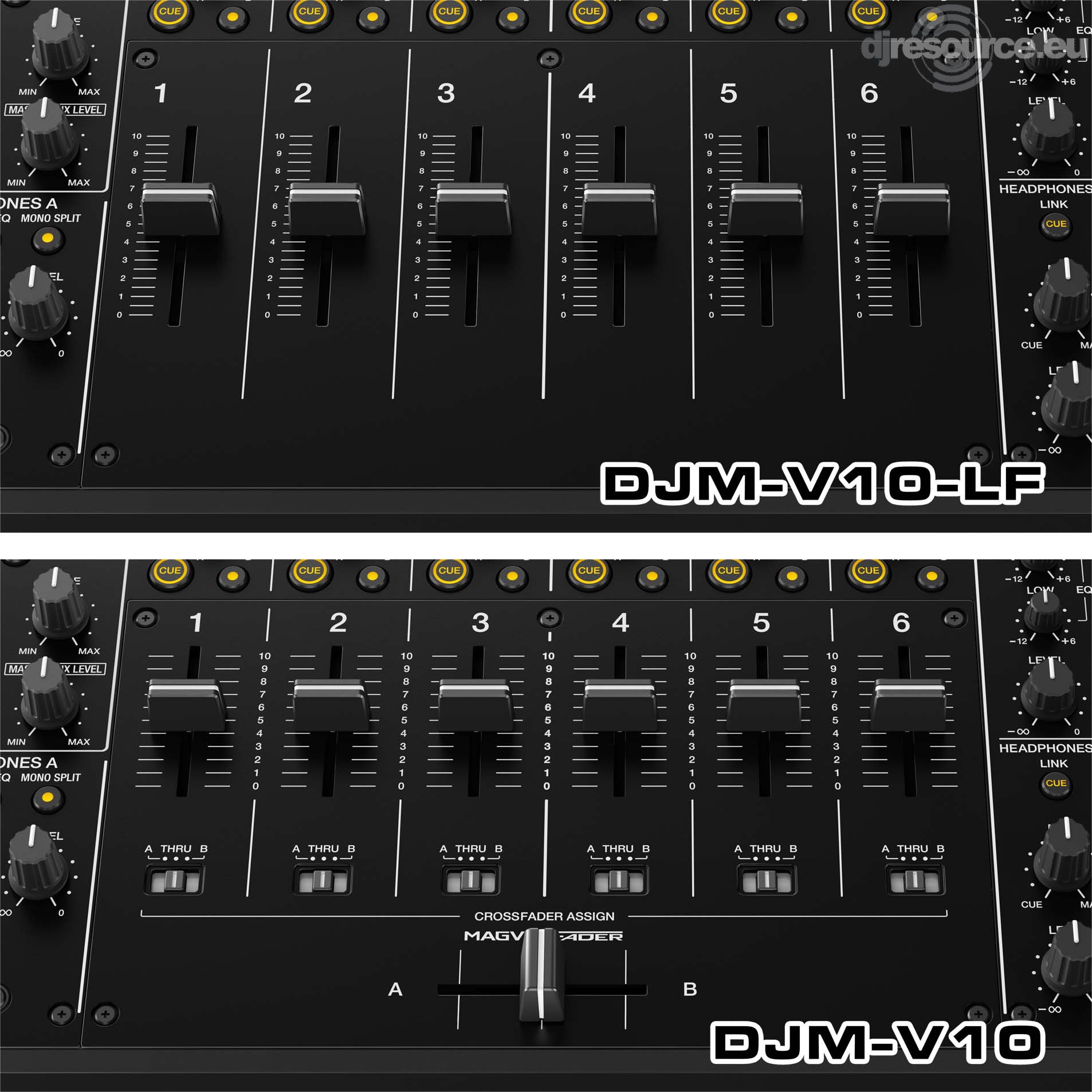

Also available with long faders and without crossfader: Pioneer DJ DJM-V10-LF

Compressor

The compressor is designed to make it possible for DJs to mix in tracks that are recorded from vinyl into a set with more modern tracks. Proper vinyl mastering has less dynamic range that modern tracks so they might sound less hard.

The Comp rotary works in tendem with the Trim knob, the Treshold is set with the Trim knob, the Ratio is determined by the position of the Comp knob.

Trim at 12 o'clock sets the Treshold at -9dB.
Comp at 12 o'clock : the ratio is set at 1:∞
Comp lower than 12 o'clock : the ratio changes from 1:1 to 1:∞
Comp higher than 12 o'clock : ratio locked at 1:∞, release time decreases

Features

6+2 Channel Mixer
Dual individual Headphone sections
4 Band EQ and Trim per channel
EQ Low, EQ High are isolators, midrange regular EQ
VU Meter per channel

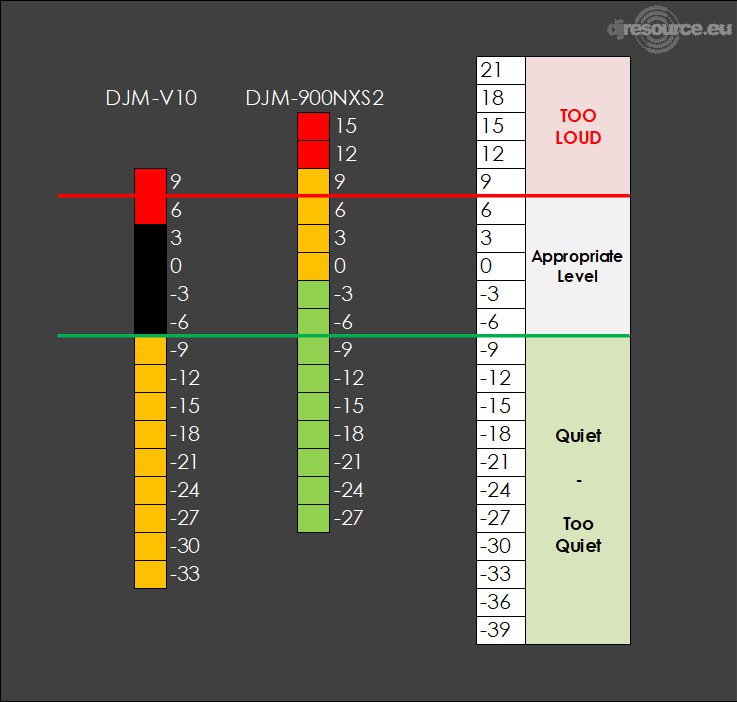

New VU Meter staging
2 Color FX filters per channel : Low Pass, High Pass
Color FX Resonance/Parameter adjustable
Microphone with 2 band EQ (works for both channels at same time) and Talkover
14 Beat FX : Delay, Echo, Ping Pong, Spiral, Helix, Reverb, Shiver,Flanger, Phaser, Filter, Trans, roll, Pitch, Vinyl Brake
Beat FX Frequency Range : Low, Mid and High
Beat FX adjustable via touch screen
4 Color Send FX : Short Delay, Dub Echo, Long Delay, Reverb
Color Send FX paramter control : Size/Feedback, Time and Tone Control
Send FX adjustable per channel
3 External Send/Returns
Send Return can be put on a channel's input
Supports Inter-App applications
Beat FX assign with push button
Compressor with 'Treshold' per channel (match vinyl recordings with modern music)
Multi I/O for use with Inter-app supported apps
Booth output with 2 Band EQ
3 Band Isolator on Master with big rotary knobs
Native Showkontrol support
Lockable 220V cables
User settings loadable via ProDJ Link
Magvel Cross Fader with Curve Control
Crossfader Assign switches more visible with white background
DVS Support (Rekordbox, traktor, Serato)

Specifications

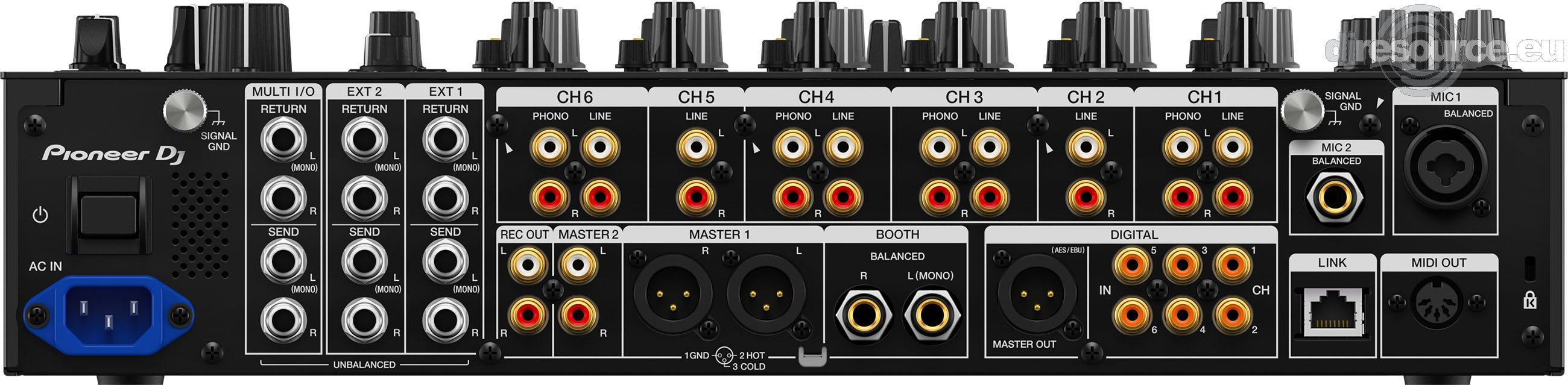

Inputs : 4 Phono(RCA), 6 Line(RCA), 6 Digital(RCA), 2 Mic(ComboJack, Jack)
Outputs : Master(XLR & RCA), Booth(Jack), Rec(RCA), Digital(AES/EBU), 2 headphones(Jack & MiniJack)
3x Send/Return(Jack), ProDJ Link(RJ45), MIDI(DIN)
Internal Mixing : 64bit @ 96kHz
A/D D/A Converters : 32bit
Frequency Response : 20-40kHz
Signal to Noise Ratio : 105dB
Distortion (THD) : 0.005%
Dimensions (WxDxH) : 437.6 x 467 x 107.9mm
Weight : 11.9kg
