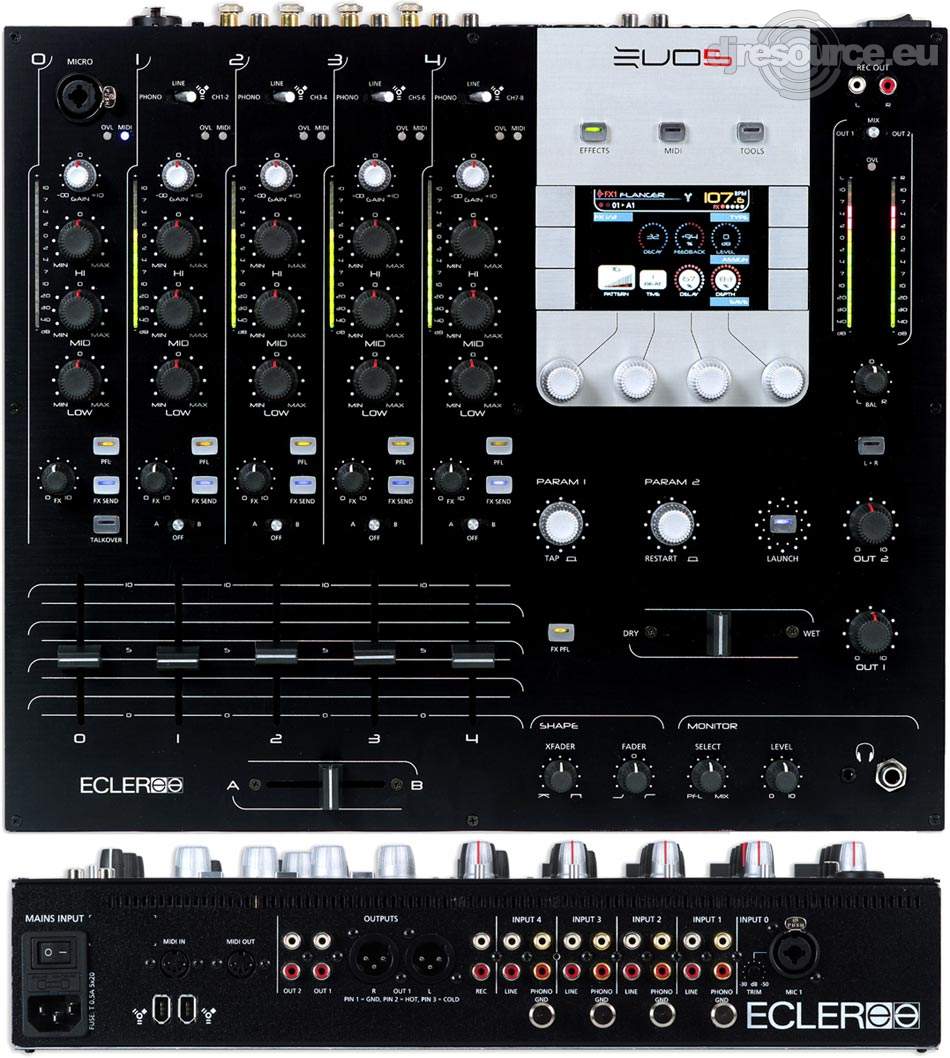

Ecler EVO 5

October 2007 - The EVO5 is the perfect tool for today's DJs and producers thanks to its unique combination of a state of the art internal 12 channel FireWire sound card, the highest digital sound quality at 24bit/96kHz, flexible MIDI control and the most powerful built-in editable effects processor available in the marketplace.

24bit/96kHz A/D conversion
The external analogue signal is digitalised through a professional A/D converter at 24bit/96kHz for the highest sound quality. A background of more than 40 years designing and manufacturing professional audio products make our circuits extremely efficient with regard to signal processing and routing. They are designed in order to get the most analogue-like audio quality.

Internal 12 channel FireWire sound card
The EVO5 allows professional DJs to think forward and integrate software in their set up thanks to its top quality 24bit/96kHz internal sound card. This top of the line 12 channel sound card is powered via FireWire, which is a professional standard superior to USB. There are 2 FireWire connections that work as a HUB and 12 inputs and outputs: 6 stereo inputs (CH1, CH2, CH3, CH4, MIX and PFL) and 6 stereo outputs (CH1, CH2, CH3, CH4, MIX and CH0). FireWire stereo outputs can be used for instance to route Phono or Line inputs to a PC for effects processing with your favourite software.

Create and save up to 64 customized effects
The EVO5 features a powerful effects processor at 24bit/96kHz that can be fully edited. It features 8 basic effects: Delay/Echo, Filter, Flanger, Phaser, Transformer, Panoramic, Pitch and Reverb, and all effects parameters can be edited. Moreover the EVO5 offers the new and revolutionary possibility to chain 2 basic effects and so create complex customized effects. A total of 64 different complex effects can be created and saved. A precise BPM counter with reliability indication synchronises the effects. Another new feature is the pattern synchronisation that makes the effects oscillate in a unique and extremely creative way. There are also 2 dedicated Microphone effects: Noise Gate and Compressor (also editable). Personal effects presets can be imported and exported to a PC via FireWire with the EVO5 external software (included).

MIDI control
A dedicated mappable MIDI control panel featuring 14 controls and 64 different layouts
The EVO5 features a dedicated MIDI control panel including 10 push switches and 4 rotary encoders. Controls are fully mappable, editable and visible from a full colour screen, which turns into the perfect display for labelling the controls functions. There are 64 different layouts including different control presets for DJ software such as Traktor and Live. Moreover all mixer controls are MIDI enabled and fully editable. A total of 69 MIDI controls multiplied by 64 layouts result in 4416 different MIDI commands. Presets can be imported and exported to a PC via FireWire with the EVO5 external software (included). There is also a MIDI Clock output synchronised to the BPM counter. All MIDI information is transferred at ultra high speed thanks to the EVO5 FireWire and MIDI DIN5 interface.

Full colour TFT screen
A 320 x 240 pixels (3,5') screen for total flexibility
The EVO5 includes a 3,5 inch screen to enhance your creativity and gain total control of your mixer parameters. The screen has up to 262.144 colours and works at 6bit making the colour quality extremely high. Thanks to this integrated screen, users can easily display labels for MIDI controls, edit sound effects and mixer parameters. The screen also serves as a display for the BPM counter, the MIDI monitor, the FireWire connection and much more.

Customize your mixer
Edit EQ styles, gains, frequency ranges, fader curves and much more Most EVO5 parameters can be easily adjusted through the screen. Users can choose between Kill and Baxandall EQ styles. EQ gains and frequencies are fully editable and channel EQ can be also bypassed. Microphone Talkover and dedicated effects are also editable. On the output, users can adjust sensibility of OUT1 and OUT2 to 0dB, +3dB or +6dB, as well as assigning the REC signal to MIX or PFL. All fader shapes can be adjusted, including the crossfader, the channel faders and the effects Dry/Wet crossfader. The BPM counter can be assigned to the internal source or to the MIDI Clock, and can work on different ranges from 60 to 220 BPM. The FireWire sound card input and output levels can also be adjusted from 0dB to +18dB. Different user presets protected with password can be saved, as well as imported and exported to a PC with the external software (included).

Built-in editable output limiter
The EVO5 features a limiter on output 1 or 2 for a totally safe performance. The limiter is only accessible with a special password in order to avoid that a guest DJ modifies it. The limiter can be assigned to OUT1 or OUT2, or it can be deactivated. The limit threshold goes from -20dB to +6dB. Club owners and sound engineers can feel safe thanks to this unique feature that will prevent the sound system from any damage.

FireWire sound card
- 24 bit stereo analogue to digital and digital to analogue converters
- Sample rate can be set to 96kHz, 88.2kHz, 48kHz or 44.1kHz
- 12 channels - 6 stereo inputs and 6 stereo outputs
- 2 FireWire 6 pin connection IEEE1394 (Hu

Crossfader
- Type: Long life digitally controlled
- Shape: Shape adjust control

Faders
- Type: Long life digitally controlled
- Shape: Shape adjust control

TFT Screen
- Type: Full colour
- Dimensions: 320 x 240 pixels (3.5')

Effects
- Basic Effects: Delay/Echo, Filter, Flanger, Phaser, Transformer, Panoramic, Pitch and Reverb
- Customized effects: 64 (2 different effects chained and edited)
- Sound processor: 24bit/96kHz
- Auto BPM Counter: Yes (editable via software)
- Oscillation patterns: Yes
- Dry/Wet crossfader: Shape adjust editable via software

MIDI Control
- Dedicated controls: 14
- Mixer controls: 55
- Layouts: 64
- Edition: Fully editable commands via software
- Connections: FireWire and MIDI In and MIDI Out DIN5 180°

Specifications

4 Stereo Channels
9 inputs: 4 Phono, 4 Line (RCA) and 1 Mic (XLR)
2 Master outputs, 1 Booth output
Channel gain: Off to +10dB
Channel EQ: 3-band
EQ styles: Choose between Kill and Baxandall (Kill by default)
EQ frequencies: Fully editable
EQ range: Fully editable (Off to +10dB by default)

AD/DA 24 bits converter 96kHz (default), 88.2kHz, 48kHz, 44.1kHz selectable.
32/64bits DSP engine.
Frequency response -1dB (-3d: (Line) 10Hz – 30kHz
Output Limiter on OUT1 or OUT2: -10dBV to +10dBV 3 band compressor.
Headphones: 0,2W/200Ω, 1%THD
Distortion (THD+N): Line:<0,006%
Signal/N. Ratio: Line:>100dB
Talkover: Attenuation: -6 to –30 dB (soft config.) Release time: 0.5 to 3 sec. (soft config.)
Micro. Noise Gate: -80dB to 0dB
Micro. Compressor: 0 to 100% efficiency
Xfader cutting time soft adjust: from –1mm to 8mm., left & right independently.
Shape: Soft adjustable on Xfader, Faders & Dry-Wet.
BPM: automatic from 60 to 220 bpm in 6 ranges, internal or MIDI clock reference.
Firewire input routing levels: from -18 to 0 dB.
Firewire output routing levels: from 0 to +18 dB.
Built in squelch on unused channels.
Phantom voltage: +17,5VDC/5mA max.
Input Gain: from -∞ to +10dB
Mains: 90-264VAC 47-63Hz
Power consumption: 50VA
Dimensions: 432.6x370x80mm
Weight: 6.4kg
