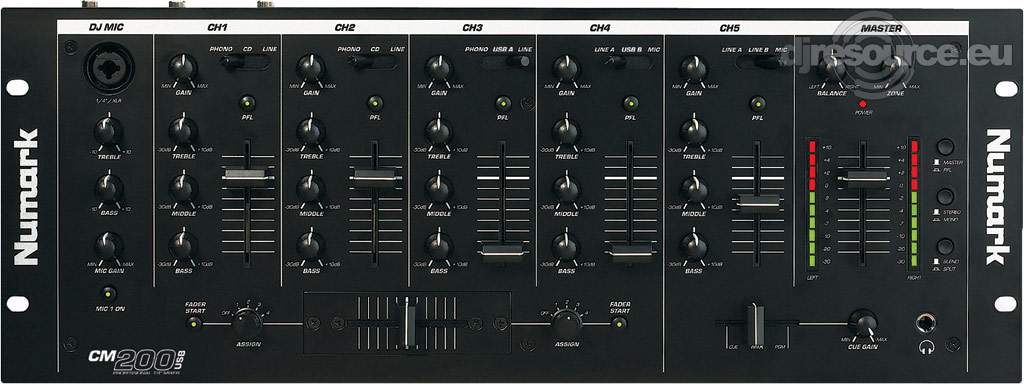

Numark CM 200 USB

The CM200USB is a 5–channel mixer that utilizes the design and features of our famous CM200 mixer and adds the power of USB I/O, allowing you to play audio files from your Mac or PC. DJs can even record live performances onto a laptop or desktop, making the CM200USB perfect for club or studio work.

The CM200 USB also includes master balanced XLR outputs (with Record and Zone), a 3–band EQ on every channel, effects, and many other features that will keep your mixes energized for years to come. The Numark CM200USB is a powerful DJ and studio tool, linking traditional input options with the power and versatility of USB.


Features
5 channels plus DJ mic control
Inputs for 8 line, 3 phono, 2 USB, and 3 mic
2 USB input/ output channels for playing and recording audio files (Mac & PC)
Master balanced XLR outputs with Record and Zone
Steep 3–band EQ on every channel
EQ on mic channel
Split or blend cueing, PFL gain adjust with meter
Fader–start, panning on master fader
Replaceable assignable crossfader
2 USB cables included
No software drivers needed with Windows XP or Mac OS X (True Plug-and-Play)
Works with almost any Windows or Mac audio recording or playback software


Specifications
Minimum System Requirements (PC):
Windows 2000/XP/Vista
Available USB 1.1 port

Minimum System Requirements (MAC):
Mac OS X 10.3.x or greater
Available USB 1.1 port



Inputs:
-Line: 10Kohm input impedance; 77mV rms sensitivity for 1.22V output
-Mic: 600 ohm input impedance unbalanced; 1mv rms sensitivity for 1.22V output; 70mV rms max input
-Phono: 47Kohm input impedance; 1.2mV rms sensitivity @1KHz for 1.22V output

Outputs:
-Line: 9V rms max
-Headphone: 0.5W into 47 ohm
-Distortion: less than 0.01%

Signal to Noise Ratio (maximum output JIS-A weighted):
-Line: Better than 98dB
-Mic: Better than 86dB
-Phono: Better than 81dB

Frequency response:
-Line: 20Hz-20KHz ±0.5dB
-Mic: 20Hz-15KHz ±0.5dB
-Phono: ±1dB except for controlled attenuation of –3dB @ 20Hz to reduce rumble and feedback

EQ (Channel):
-Bass: +12/-32dB @60Hz
-Middle: +12/-32dB @1.2KHz
-Treble: +10/-28dB @15KH

EQ (Mic):
-Bass: ±10dB @100Hz
-Treble: ±10dB @15KH

Power consumption: 11 Watt typical; 14.7 Watt with full headphone output
