Numark DM 2050

Submitted by jannickv  Flag on 08-03-2008 @ 16:23
Last edited by Lead  Flag on 01-06-2018

Model : DM 2050

Brand : Numark
Brand website :

Category : Mixer

Available :  2005 - Today ?

Vote :

Nobody votes this as Favourite yet.

 Show Booths

4 times used in 4 DJ Booths

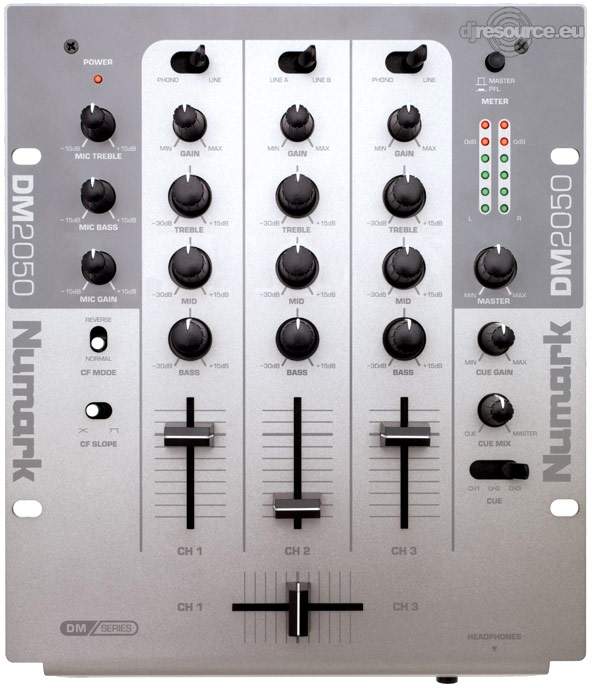

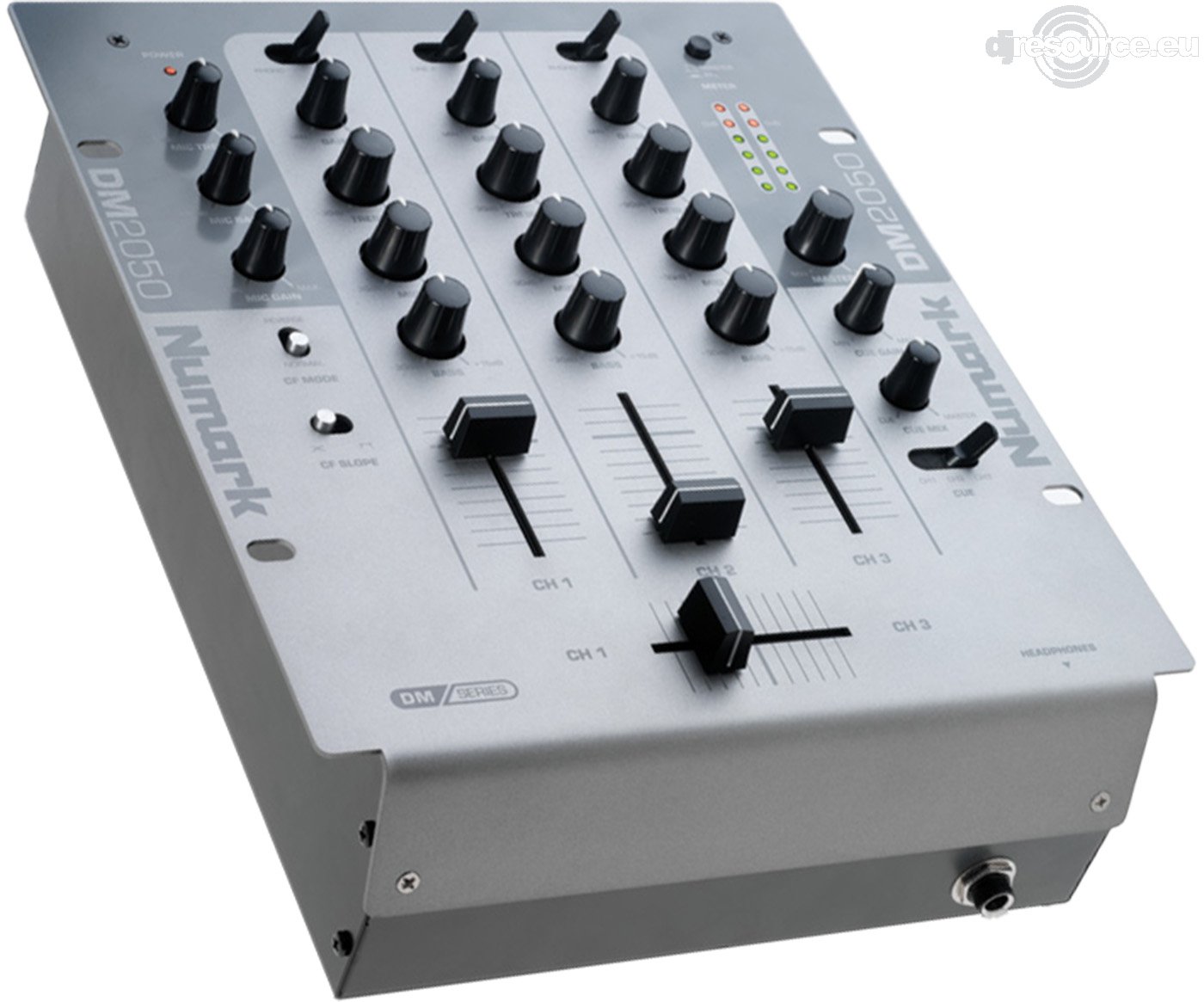

Numark DM 2050 Mixer

The DM2050 is a compact, 3-channel tabletop mixer designed for today’s turntablist, desktop, and aspiring DJ. Featuring steep 3-band EQ on every channel, a replaceable crossfader with reverse and slope control, a dedicated microphone input with 2-band EQ, and multiple input sources, this entry-level mixer is big on features and easy on the wallet.

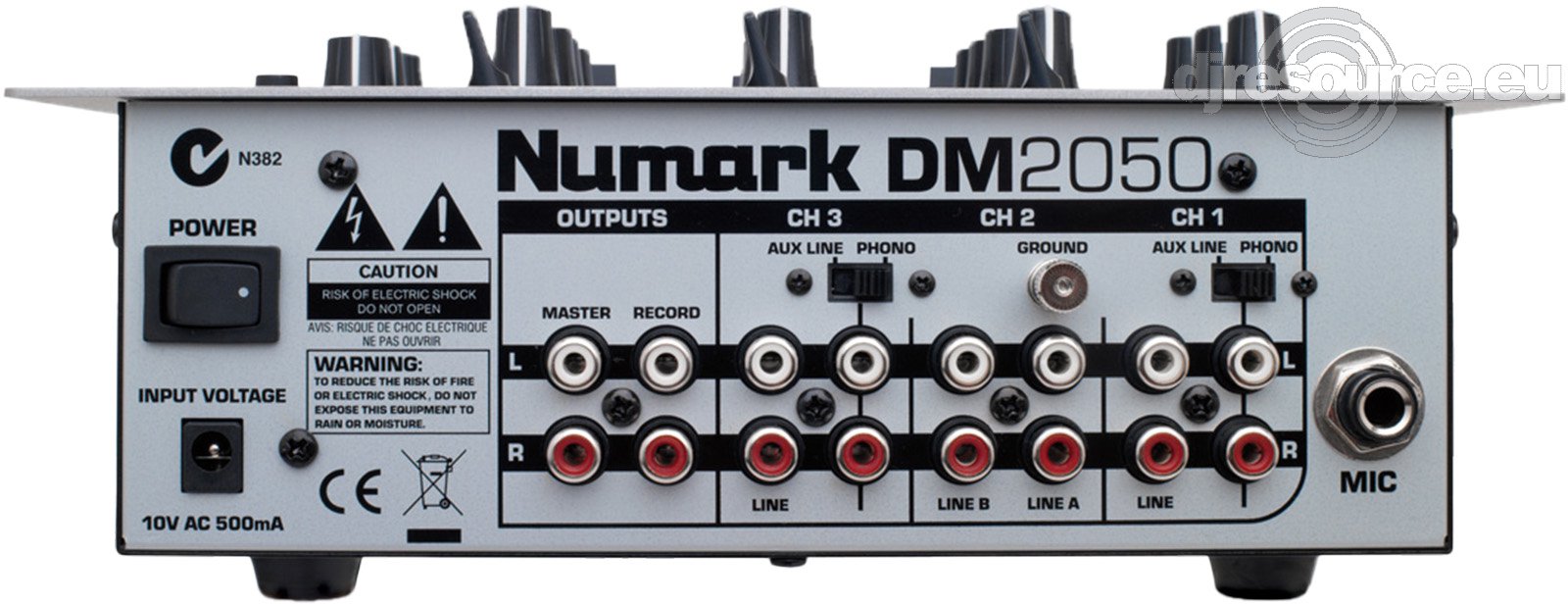

featureInputs for 4-6 lines switchable, 2 phono inputs, and a microphone
featureSteep 3-band EQ on every channel with rotary frequency kills
featureDedicated microphone input with control for treble, bass, and level
featureReplaceable crossfader with reverse and slope control
featureSix segment LED display for monitoring signal strength
featureToggle for master and pre-fader listen (PFL) metering

-Line: 10K ohm input impedance; 80mV RMS sensitivity for 0dB output
-Mic: 600 ohm input impedance unbalanced; 1.5mV RMS sensitivity for 0dB output; 400mV RMS max input
-Phono: 47Kohm input impedance; 1.3mV RMS sensitivity @ 1KHz for 0dB output

-Line: 7V RMS max
-Headphone: 0.5W into 47ohm

Signal to Noise Ratio (maximum output JIS-A weighted):
-Line: Better than 100dB
-Mic: Better than 95dB
-Phono: Better than 85dB

Distortion: Less than 0.05%

Frequency response:
-Line: 20-20KHz +/-0.5dB
-Mic: 20-15KHz +/-0.5dB
-Phono: +/-1dB except for controlled attenuation of -3dB @ 20Hz to reduce rumble and feedback

Channel Equalizer:
-Bass: +12/-35dB at 20Hz
-Middle: +12/-25dB at 1.3KHz
-Treble: +12/-20dB at 15KHz

Channel fader kill: Better than 90dB at 1Khz

Crossfader kill: Better than 75dB

Crosstalk: Better than 80dB at 1KHz


Do you like the Numark DM 2050 ??
