Numark DXM 09

Submitted by jannickv  Flag on 08-03-2008 @ 16:21
Last edited by Lead  Flag on 01-06-2018

Model : DXM 09

Brand : Numark
Brand website :

Category : Mixer

Available :  2005 - Today ?

Vote :

Nobody votes this as Favourite yet.

 Show Booths

7 times used in 7 DJ Booths

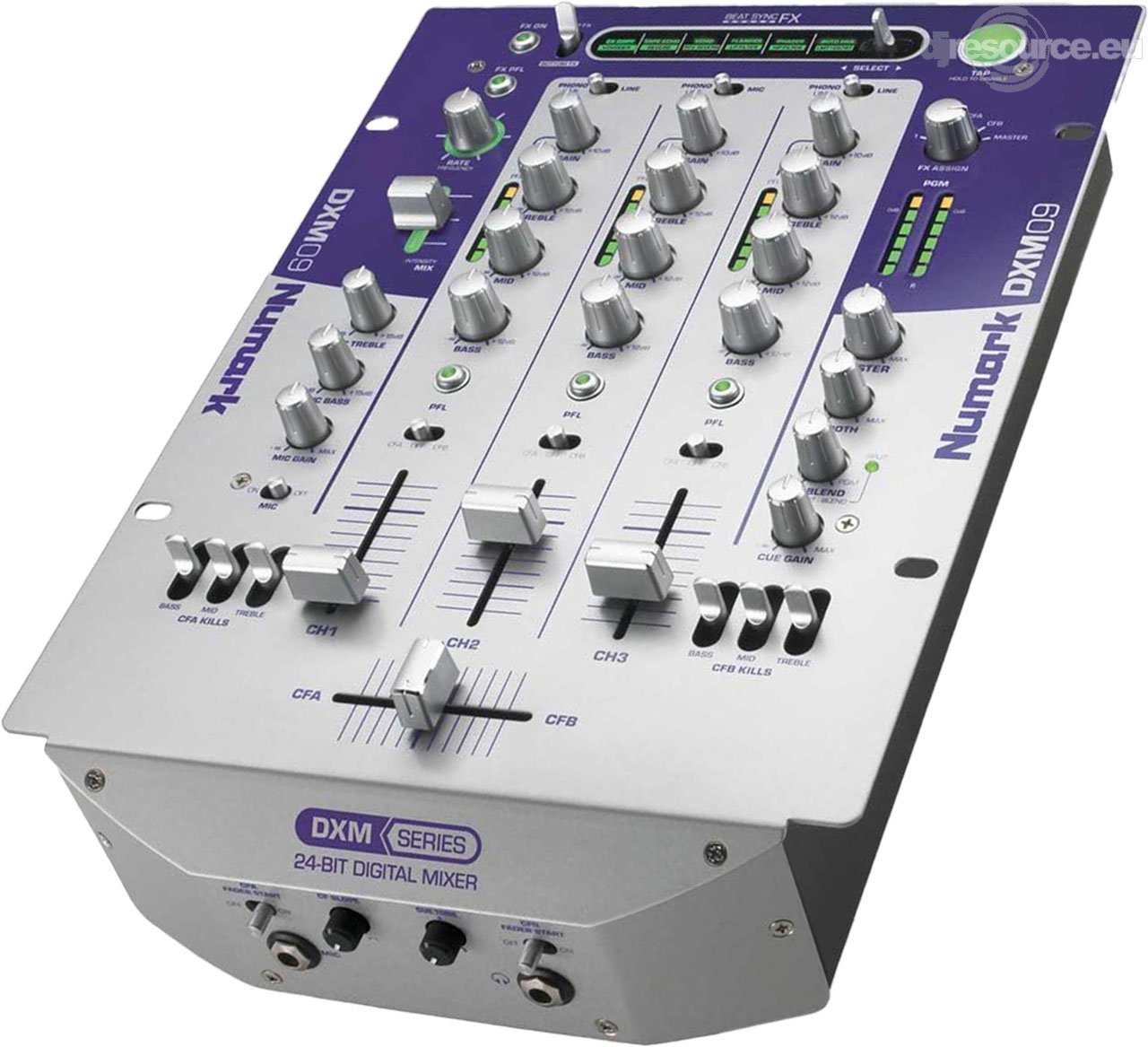

Numark DXM 09 Mixer


The DXM09 offers the cleanest audio signal and the most creative options available in a tabletop mixer. The 100% digital circuitry on the Numark DXM09 provides the lowest noise floor available, and the unit's built–in, look–ahead peak limiting prevents clipping, to ensure an ultra–clear output signal at all times.

The mixer's on–board effects section gives the DJ on–the–fly control over multiple parameters such as rate, beat sync, and mix intensity. The DXM09 is equipped with a premium crossfader designed for performance and reliability. Cuts and fades are completely–customizable, with full slope control.

feature24–bit digital 3–channel mixer
feature12 beat–synchronized effects specifically designed for both music and vocal applications
featureFX interface includes beat sync tap and wet/dry controls
featureNoise–free digital mixing controls
featureCustom 3–band EQ with infinity kills
feature5 line/3 Phono (with phono defeat switch) inputs
feature2 mic input with EQ
featureHigh end proprietary cross fader
featureRCA record output and balanced master output
featureLook–ahead peak limiting on headphone and master outputs

Audio Fidelity Specifications
-SNR: >100dB @ 1kHz, full path, A-weighted
-Frequency Response: 10Hz-20kHz +/-0.5dB
-THD (Total Harmonic Distortion): <0.005%
-Full path: 22-22kHz
-Line: >97dB SNR, 0.005% THD+N unweighted
-Phono: >87dB SNR, 0.009% THD+N unweighted

-Gain Range: -∞, +10dB

-Low Crossover: 140Hz
-Upper Crossover: 3200Hz
-Gain Range: -∞, +12dB
-24dB/Octave EQ Filters

Balanced Output Impedance: 330 Ohms

Physical Specifications
-Gross Weight: 5.58kg
-Net Weight: 4.3 kg
-Set size: 83 x 255 x 360mm
-Inner carton dimension: 135 x 312 x 506mm
-Outer carton dimension: 154 x 325 x 520mm
-Power: 15 Watts
