Numark M1 USB

Submitted by Lead  Flag on 25-07-2008 @ 12:35
Numark

Model : M1 USB

Brand : Numark
Brand website :  www.numark.com

Category : Mixer

Available :  2008 - Today ?



Vote :

Nobody votes this as Favourite yet.

Equipment not yet in use by any of our members

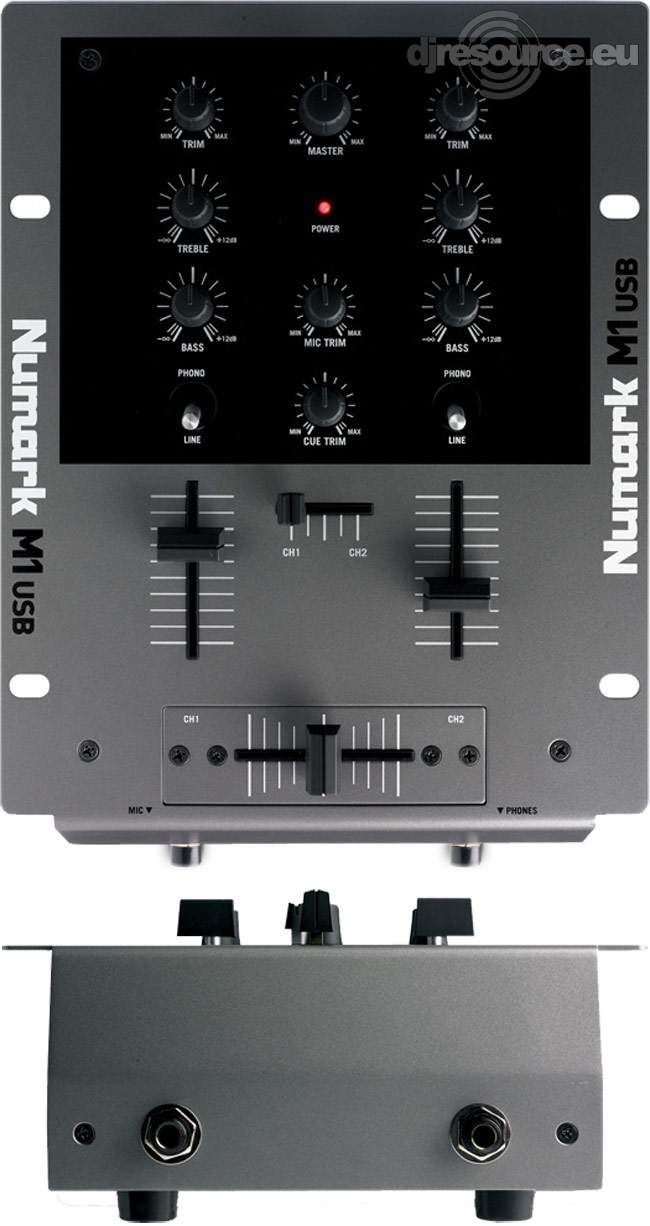

Numark M1 USB Mixer

Available in USA only...USA only |  M1USB is a compact, two-channel scratch mixer with USB audio I/O. It is perfect for any DJ who needs to mix different sources, integrate computer audio, and record sets straight to computer, all in a small amount of space.

You can plug in turntables, CD players, and any other line-level music source, as well as a microphone. M1USB's easy, on-the-fly connection to laptops enables you to take advantage of audio input and output for recording to your Mac or PC and mixing in MP3s and other audio files.

M1USB has two USB ports, each assignable as an input or output. As inputs, incoming audio can be mixed like any other input. As outputs, you can send you mix out to a connected computer for recording. Because it employs plug-and-play USB, M1USB connects to almost any Mac or PC with no drivers needed, and works with nearly all audio playback and recording software.

You can set the level of each channel of M1USB with trim and line faders, and then tailor the high and low frequencies with the rotary EQs on each channel. Preview using the cue mini-crossfader and headphone output, and then mix with the replaceable crossfader.


Features
feature Two-channel compact-tabletop mixer
feature Inputs: two phono (RCA), two line (RCA), mic (1/4')
feature Outputs: Master (RCA), Headphone (1/4' stereo)
feature Two USB terminals, each assignable to input or output for simultaneous playback and recording
feature USB input for connecting computers for audio input
feature USB output for recording gigs to computer
feature Rotary EQ and gain on each channel
feature Replaceable crossfader
feature Mini-crossfader cueing


Specifications
feature Frequency Response (20 – 20,000 Hz): ±3.5dB
feature Channel Balance: < 2.5dB at 1kHz
feature Line SNR: > 60dB (1kHz)
feature Line L/R Separation: > 45dB (1kHz)
feature Line Distortion: < 0.09% (1kHz)
feature Weight (mixer alone): 1,8kg


USB Playback
feature Distortion : < 0.05%
feature Singal to noise ratio : > 80dB
feature USB Recording: Distortion < 0.1 %
feature USB Interface: USB1.1 or USB2.0 with full-duplex operation (simultaneous playback and recording)
