Gemini - Mixer - Gearbase
Ordered by Availability, Modelnumber

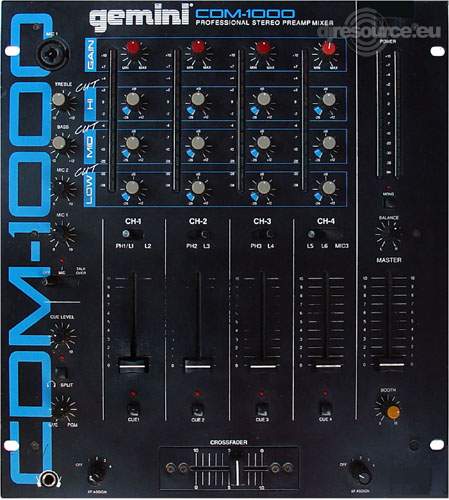

Gemini CDM-1000
on 04-04-2008 22:25
Upload additional Image
Model : CDM-1000
Brand : Gemini
Brand website : geminisound.com
Category : Mixer
Availability : 1999 - 2004
This product has been discontinued
Make FavouriteNobody voted this as Favourite Mixer yet.
Please consider making this website possible by disabling your Ad Blocker.
Or become a Gold Member, they don't see ads.
Product Information
Features
4 Stereo Channels1 Phono/Line Convertible, 2 Phono, 5 Line and 3 Mic Inputs Cut Feature for Low, Mid and High for Each Channel Gain, High, Mid and Low tone controls for each Channel Talkover Balanced and Unbalanced Master Outputs Booth Output Master Output Peak Hold LED Meters Prefader Input Level Peak Hold LED Meters for each channel
Specifications
InputsPhono: 3mV 47KohmLine: 150 mV 27KohmAux: 150 mV 27Kohm
Outputs Amp/Booth: 0dB 1V 400ohm
MIC 1 & MIC 2 DJ Mic: 1.5mV 2Kohm balanced Bass: +/- 12dB High: +/- 12dB
MIC 3 DJ Mic: 1.5mV 2Kohm balanced Controls: Channel 4 EQ Bass: + 12dB/- 26 dB EQ Mid: + 12dB/- 26 dB EQ Treble: + 12dB/- 26 dB Gain: 0 to -20 dB Frequency Resp0nse: 20Hz - 20 KHz +/- 2dB Distortion THD : 0.02% S/N Ratio: better than 80dB Talkover Attenuation: -16dB Headphone Impedance: 16ohm Power Souce: 115/230V 50/60Hz 10W Dimensions (WxDxH) : 317 x 355 x 76 mm Weight: 10 lbs
