Gemini CS-19R

Submitted by Berbo  Flag on 04-04-2008 @ 22:25
Gemini

Model : CS-19R

Brand : Gemini
Brand website :  geminisound.com

Category : Mixer

This product has been discontinued



Vote :

Nobody votes this as Favourite yet.

Equipment not yet in use by any of our members

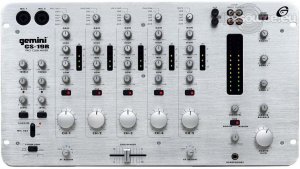

Gemini CS-19R Mixer

Features
feature Rotary Faders for Smooth Blending
feature 5 Channels & Master With Individual LED VU Meters
feature Bass, Mid, Treble With 32dB Cut Features, & Gain for Every Channel
feature 4 phono / 8 Line / 3 Mic Inputs
feature Individual EQ Controls & Talkover on Mic 1 & Mic 2 (Level, Bass &, Treble)
feature Mic 3 Integrated Within Channel 5 Controls
feature 3 Balanced Dual Microphone Inputs (XLR or 1/4"Winking my eye
feature 3 Additional Microphone Gain Controls on Back Panel
feature 3 Levels for Master Level Attenuation
feature Master Stereo/Mono Mode
feature Push-Button Illuminated Cueing
feature Cue Program & Level Rotary Control
feature Illuminated Cue Booth Assign Switch
feature 4 Outputs: Master, Zone 1, Zone 2, & Booth
feature 1 Balanced Main Output (XLR) & 1 RCA Output
feature Balanced Zone 1 & Zone 2 Output
feature Rec Output for Recording
feature Ground Lift Switch
feature Dual Voltage Switch
feature Auxiliary Input Located on Top Panel
feature 1/4" FX Send/Return Loop Located on Back Panel
feature Additional RCA Loop Input/Output With Switch on Top panel
feature Gold 1/4", RCA, & Ground Screw Connectors for Better Conductivity
feature 5 Channel Assignable PRO RAIL-GLIDE Crossfader
feature Illuminated Crossfader Curve Switch

Specifications
INPUTS
feature Phono: 4.5mV
feature 47Kohm Mic 1, 2, 3: 2.5mV, 2Kohm, Balanced
feature Line: 150 mV 27Kohm
feature Aux: 150 mV 27 Kohm

OUTPUTS
feature Master/Zone 1, 2 (Balanced/Unbalanced): 0 dB 2V, 400ohm
feature Booth(Unbalanced): 0dB, 1V, 400ohm
feature Max: 20V Peak to Peak
feature Rec: 150mV 5Kohm
feature Infrasonic Filter: 15Hz, 18dB/Octave

GENERAL
feature Bass(Mic1,2): ± 12dB
feature Treble (Mic 1, 2): ± 12dB
feature Gain (Mic 1, 2, 3): 0 to -40dB
feature Low (Channels 1-5) :+ 12dB/- 32 dB
feature Mid (Channels 1-5): + 12dB/- 32 dB
feature High (Channels 1-5 ): + 12dB/- 32 dB
feature Gain (Channels 1-5): 0 to -30dB
feature Master Output Attenuation: 0dB, -6dB, -12dB
feature Frequency Response: 20Hz - 20KHz +/- 2dB
feature THD: (0.02)
feature S/N Ratio: Better than 80dB
feature Talkover Attenuation: 16dB
feature Power Source: 115/230V 50/60Hz 20W
feature Dimensions: 483 x 267 x 120mm
feature Weight: 3.4 kg
