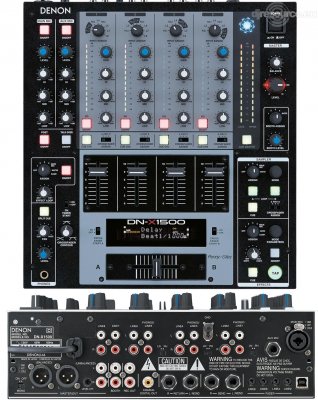

Denon DN-X1500

Denon's flagship 4-channel mixer sets the standard for Club, Mobile and Battle DJs with powerful, innovative features that allow both

flexibility and creativity. The DN-X1500 S is the silver version of this mixer, it's identical in features.

Denon DJ, renowned provider of top-quality equipment for DJs and clubs, announces the successor to the popular DN-X1500 DJ mixer. The new DN-X1500S is a 4-channel, 12' mixer featuring a brushed aluminum top panel, and is a perfect complement to the critically acclaimed DN-S3500 tabletop CD/MP3 player. This club/mobile style mixer incorporates Denon’s original high performance adjustable Flex Fader, a built-in sampler, matrix switching, parametric EQ, onboard effects and a host of other features all powered by the legendary SHARC® DSP engine*. The new Denon DN-X1500S offers an intuitive control surface that is adaptable to any application and suited to the diverse needs of turntablists and mobile DJs performing in clubs, bars, and an endless array of venues.

Based on Denon’s award-winning design and extensive history in the development of advanced DJ technology, the DN-X1500S offers 4 full-featured channels integrated with the “world’s first” 8-channel input matrix control. Each channel features smooth-action 45 mm channel faders, Gain control with PFL levels, and 3-band EQ (on/off switchable) with parametric frequency adjustment, as well as a “battle approved” 45 mm multi-channel assignable crossfader with tension adjustment and contour control (named “Flex Fader” by Denon). Main Mic and Aux Mic inputs (one Neutrik combo and one 1/4' TRS) are included with Main and Aux/Sub level control and EQ. On/Off Talk Over and Post switches are also provided.

The DN-X1500S comes with a host of onboard digital effects and features such as an 8 second sampler, 9 effect types, and an Auto/Tap/Manual BPM counter. The sampler utilizes audio from any of 6 mixer sources (Ch1/2/3/4, Mic, Master), and offers edit options including Loop, Reverse, Reverse Loop and Single playback, with overall Pitch Control adjustment of up to +/-100%. Effects include cutting-edge SHARC® DSP processing, along with Delay, Echo1, Echo2, Filter 1, Filter 2, Flanger, Auto Pan, Trans and Key %.

An external stereo send/return Effects Loop is provided and can be used in conjunction with the internal effects giving the DJ an abundance of power across multiple channels. Aux Out options include REC Out (stereo, RCA) and Booth Out (unbalanced, RCA) with Level control, which offers a unique and practical assign switch to monitor any channel and effects beforehand. The Digital (coaxial) output utilizes audiophile quality 24-bit converters for optimum sound quality. The DN-X1500S’s Master Out section has separately attenuatable Balanced (stereo, XLR) and Unbalanced (stereo, RCA) outputs with Master Balance VR control and Stereo/Mono select switches on all XLR and RCA jacks. A stereo headphone output with preset selectable EQ features Headphone Cue, Effects Cue, Mono/Split/Stereo, and Cue/PGM/Pan controls, which provides added monitoring options for the DJ.


The DN-X1500S mixer is further enhanced by easy-to-read individual PFL input meters and a highly luminescent FL Tube display for controlling effects. Denon has included another groundbreaking mixer technology by outfitting the unit with a USB port, extending the possibility for onboard software upgrades, which are created in response to user input and offered free of charge via web download. An optional 19' rack mount kit (RM-DJ1500) is also available for the unit.

Features

12'' 4-channel DJ Mixer with 8 Source Matrix Control
Analog Devices SHARC® Processor Provides 32-bit Floating Point DSP Performance
Matrix Input Assignment: 8 input sources are freely assigned to any channel
45mm Penny&Giles Professional Cross Fader with Contour Function (Tension Torque Adjustment)
Multi-channel Assignable Crossfader
3 Band Parametric EQ with Kills
Selectable Booth Output
FL Tube Display to Manage Effects
9 Onboard Effects including Delay, Echo1, Echo2, Filter1, Filter2, Flanger, Auto Pan, Trans, and Key %, with Dry/Wet Rotary Contour
Stereo Send/Return Effects Loop with Dry/Wet Rotary Contour
Sampler: 8 sec. sampler utilizes audio from any of 6 mixer sources (Ch 1/2/3/4, Mic, Master), and offers edit options including loop, reverse loop, utter, single playback and A-B Trim, with overall Pitch Control adjustment of up to +/-100%
Gain control with Pre Fader levels for each channel
Auto BPM/Manual Input (by tapping a button or rotatg a knob ) of BPM values/BPM lock
2 Mic Inputs with EQ Adjustments
Mic Post features passes the Mic signal into Booth, Rec, or Digital output signal pathFader Start on All ChannelsNumerous User Preset Adjustments
Software Upgradeable Via USB Port

Flex Fader –45mm Professional Cross Fader with Tension Torque Adjustment

Linear contour control
Exceptional electrical and mechanical performance
Stainless steel slide rails
Tension torque adjustment 0 to 50 g ·cm
Endurance-tested contacts

Specifications

Channel Equalizer
    Hi +10 dB (8 kHz), -33 dB (15 kHz)
    Mid +10 dB (8 kHz), -40 dB (1 kHz)
    Low +6 dB (8 kHz), -40 dB (60 Hz)
Microphone Equalizer
    Hi +12 dB, -12 dB (10 kHz)
    Mid +12 dB, -12 dB (1 kHz)
    Low +12 dB, -12 dB (100 Hz)
Cross Talk : > 70 dB
Distortion (THD) : < 0.02%
Frequency Response : 20 - 20kHz ±2 dB
Signal to Noise : 85 dB (at Noise Gate ON line)
Power Supply : AC 220V ±10%, 50 Hz
Power Consumption : 45 W
Dimensions (WxDxH) : 310 x 327 x 110  mm
Weight : 6.7 kg
