DENON’s World First Digi-Scratch will work with any input. Just load a sample and turn the Digi-Scratch turntable. The SMX-2000 provides three Digital Scratch playback modes: Forward, Backward or Both direction.

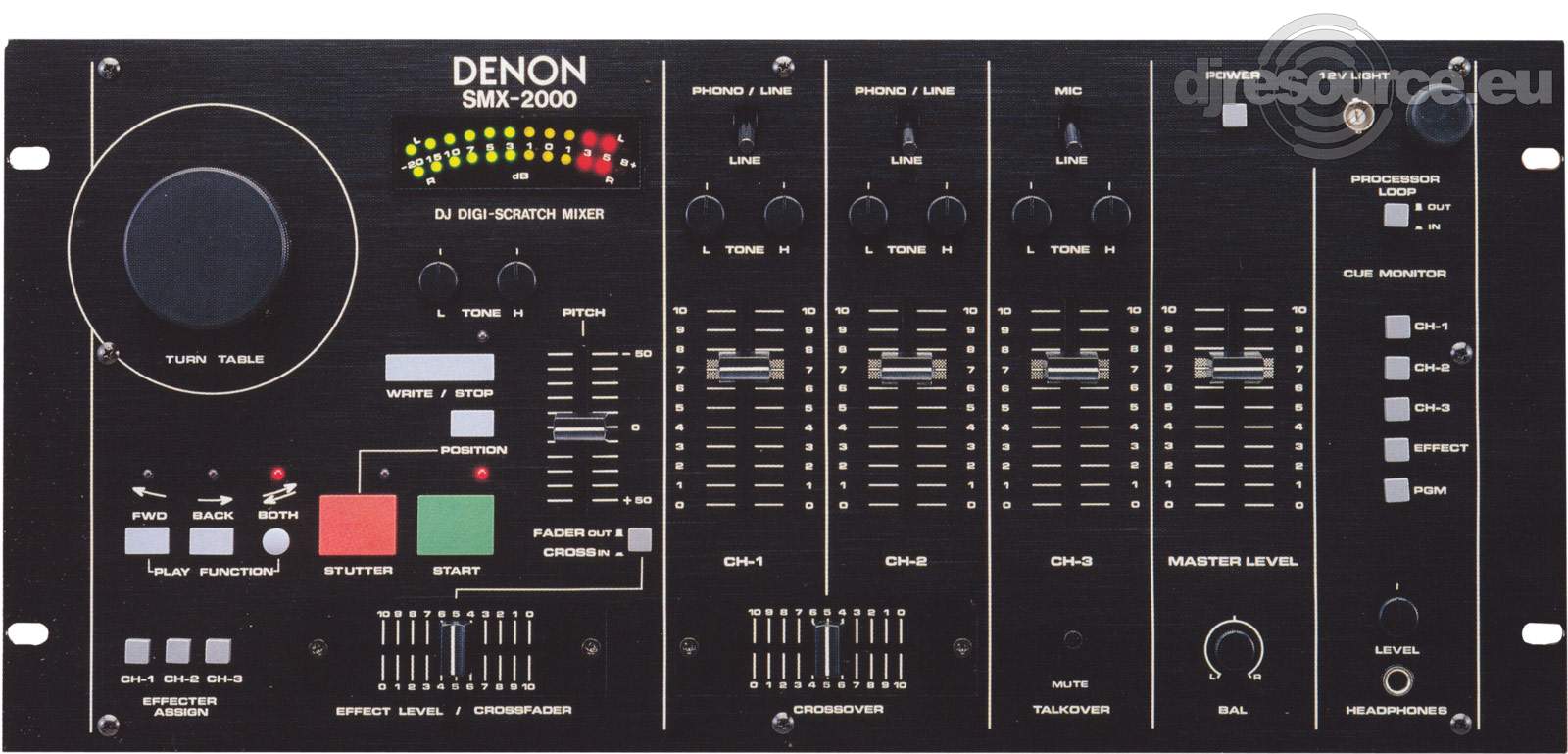

The disc place on the top left of the mixer is empty in this image, but you can mount a CD, or the attached disc to it.
3 Channel Stereo Mixer
11 Inputs (5 Stereo, 1 mono Mic)
Microphone talkover : -14 dB
The World’s First Digi-Scratch Effect !
High Quality Sampling Sound (maximum 5 sec.@96 kHz or 16 sec.@32 kHz Sampling Frequency
Sample Pitch control : ±50%
Sampler and Stutter
Tone Controllers are provided on each channel and the effects section
Monitor system provides access to CH-1, CH-2, CH-3, EFFECT and PGM.
Equalizers : Low and High per channel and mic ± 10 dB
Frequency response (line) : 10 to 25 kHz
Headphone output : 800mV @ 8Ohms, 0.05% THD
Sampling : 16 bit linear sampling
Sampling Frequency : 96 kHz + 50% position at pitch and 32 kHz -50% position at pitch
Power Consumption : 35W
Dimensions (WxDxH) : 482 x 222 x 121 mm (4U)
Weight : 6.8 kg
