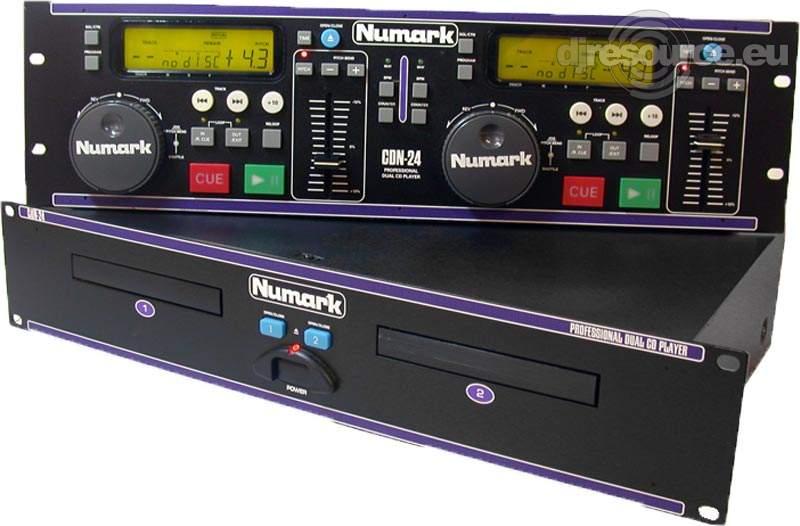

Numark CDN 24

The Numark CDN-24 includes a very large back lighted LCD display that shows time bars, pitch percentage, bpm, time, frame, and track position. This standard rack mountable unit offers +/-12% pitch adjustment and a whole new way of bending pitch. A Pitch/Jog wheel is what sets this unit apart from the rest. The inner wheel actually adjust the pitch based on the speed it is rotated - similar to how you might handle a record on a turntable. When trying to set a cue point the inner wheel will help you find an exact cue frame. The outer wheel gives three rapid search positions in each direction. Also included are a BPM finder, looping, and track programming features.


Features
Dual CD Player with remote control module
Pitch/Jog Wheel for both setting cue points and adjusting pitch
3 search speeds
Large back lit LCD Display
Track sequence programming
Pitch percentage display
Time bars show elapse or remain time
+- 12% pitch adjustment
BPM counter and display
Looping and Reloop buttons


Specifications
Quantization: 16-bit linear/channel, 3 beam laser
Oversampling rate: 8 times
Frequency response: 20Hz-20KHz
Channel separation: 86dB
T.H.D. + NOISE: 0.01%
S/N ratio (IHF-A): 94dB
Output level: 2.0Vrms
Short access time (Play next track): less than 1.7sec
Long access time (Track 1 ->Track 20): less than 3sec
Start Time: less than 0.3 sec
Digital Output: Type 2, form 1, S/PDIF (Sony/Phillips Digital Interface Format)
Power Supply: 115/230V AC, 50/60Hz
Power Consumption: 25W
Dimensions Main Unit: 482mm x 88.8mm x 264mm (without feet)
Dimensions Control Unit: 482mm x 88.8mm x 75mm (without feet)
Weight Player Unit: 5 Kg
Weight Control Unit: 2 Kg
