American Audio Q3433 MKII

Submitted by XMatiC  Flag on 26-12-2008 @ 21:05
Last edited by Lead  Flag on 04-06-2018
American Audio

Model : Q3433 MKII

Brand : American Audio
Brand website :  www.americandj.eu

Category : Mixer



Vote :

Nobody votes this as Favourite yet.

 Show Booths

5 times used in 5 DJ Booths

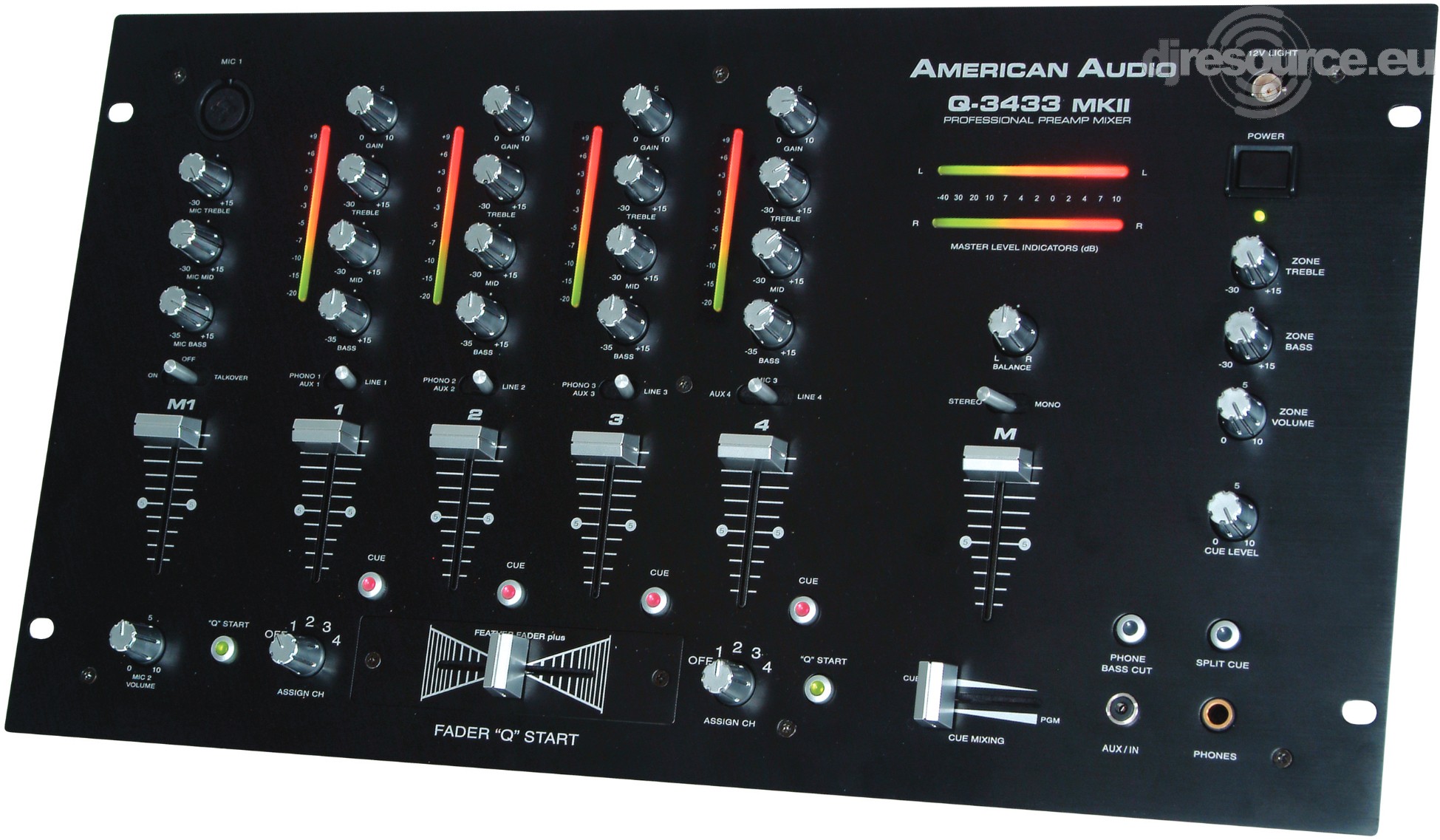

American Audio Q3433 MKII Mixer

Features

Fader 'Q' Start control with On/Off switch (compatible American Audio 'Q' series layers allows auto return to preset digital cue points).
Bass, mid & treble control for mics
Individual Volume control for each mic. Neutrik™ combo microphone connection
1/4''(6.3mm)/XLR. On/off/talkover switch for DJ mic
High quality replaceable Feather Fader plus for smooth, clean crossfading
On/Off Channel assign switch for crossfader
Gain control for each channel
Bass, mid and treble control for each channel
Master volume control
Stereo/Mono switch
Cue mixing slider
Split Cue monitoring
Cue Level Control
Cue button with LED for each channel
Master Level Indicators
Left/Right master balance
12V BNC light connector for gooseneck light
Zone/Booth volume, treble and bass control
High level headphone output
Left & right turntable ground connectors conveniently located on rear panel
Independent 1/4'' jack light control signal output for touch panels and chase controllers
Headphone bass cut switch
Pre Fader Level Switch
Crossfader: FF-Plus/S

Specifications

Inputs : 3 phono, 4 line, 3 auxiliaries & 3 mic inputs
Balanced XLR Master Outputs, Booth Output
Power: 115V/60Hz or 230V/50Hz switchable
Dimensions: 19'' W x 9.5'' D x 10.5'' H - 482mm x 242mm x 65mm (6 rack spaces)
Weight: 4.4kg
