American Audio

Model : 14MXR

Brand : American Audio
Brand website :

Category : Mixers

Available :  2012 - Today ?

This product has been discontinued

Nobody votes this as Favourite yet.

Equipment not yet in use by any of our members

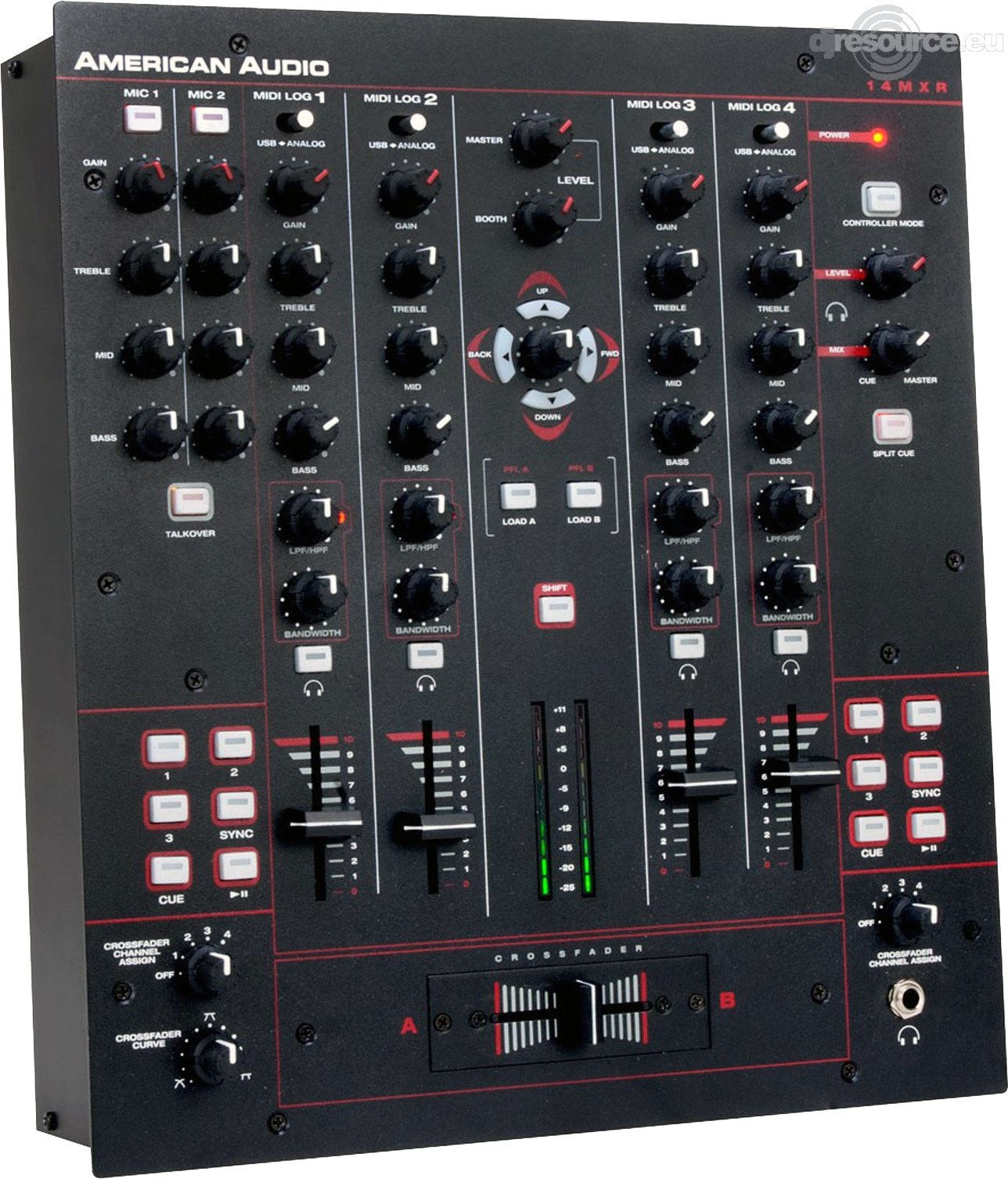

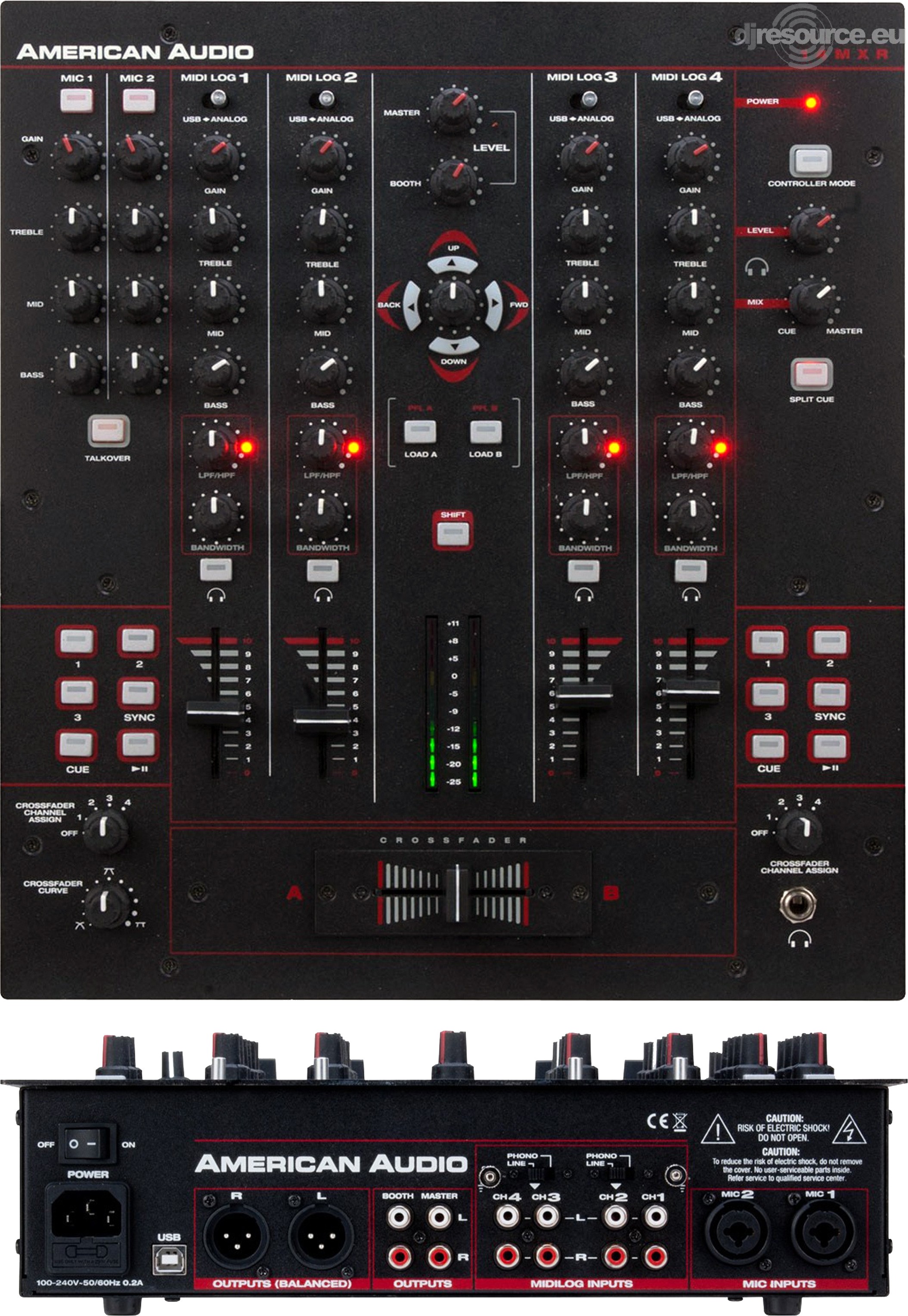

American Audio 14MXR Mixers

The 14MXR is a ground breaking 4-channel pre-amp Midi mixer with built-in 4x4 Sound Card so DJs can play and mix music from their favorite computer software, yet still have the hands-on hardware control from a compact, 4-channel mixer. Plus, with a built-in Sound Card DJs can start mixing right away without having to purchase extra equipment.

All the features found on the 14MXR were intuitively designed for the most experience DJs by fellow DJs. Features such as; Balanced Outputs, Long-life Optical Fader, Rotary Kills, and Reversible Crossfader and channel Faders with adjustable curve.The crossfader was factory tested for over 1 million crossfades back-and-forth and never quit working.


4+2 Channel Mixer
Midi Input to control “Midi Learn” software
USB: 4in x4 out audio interface + MIDI Interface
Long-life Optical Fader (Crossfader)
Independent curve for channels 1 & 2  (short to long curve) with reverse button
4-Band Rotary EQ with push Kills
Talkover button (-15dB )
DJ Mic with Volume + 4-Band EQ (Treble, Bass, Gain & Mid)


Inputs : 2 Line/Phono (RCA), 2 Line (RCA), 2 Mic (Combo Jack), USB
Outputs : Master (XLR, RCA), Booth (RCA), Headphones (Jack)
Power Supply 100-240V 50/60Hz
Dimensions (WxDxH) : 356 x 320 x 85 mm
Weight:  4.475 kg
