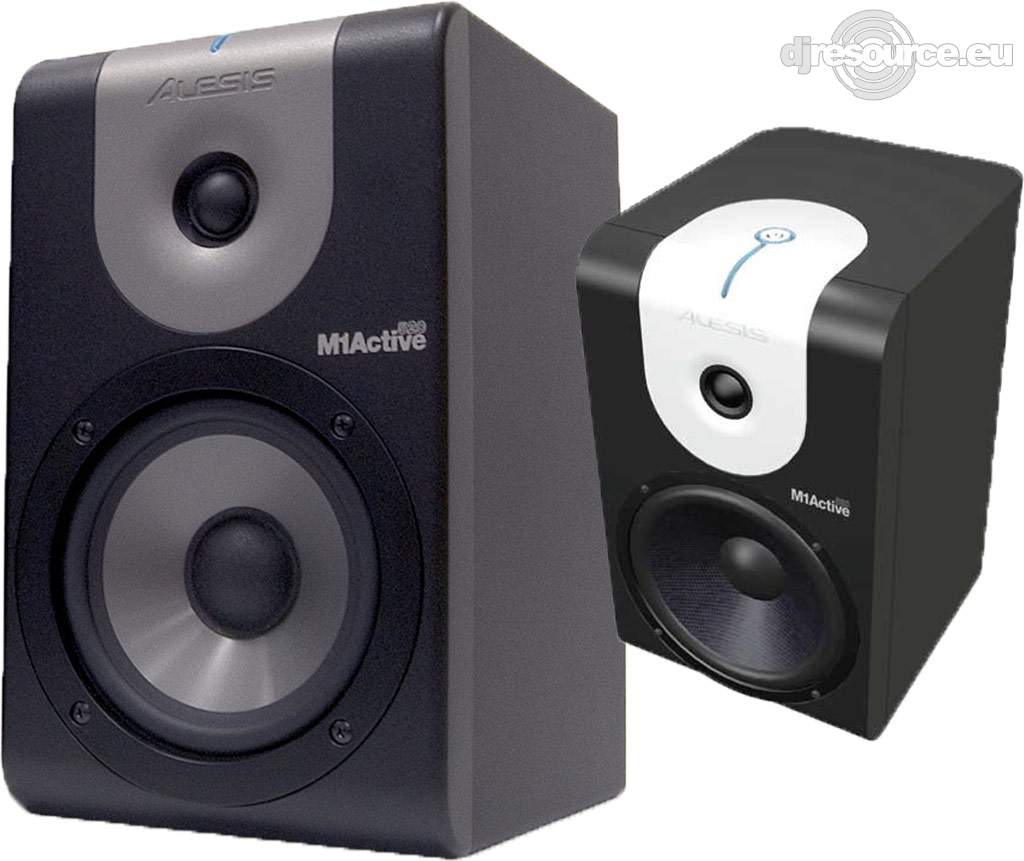

Alesis M1ACTIVE 520

The Alesis M1 Active 520 is a newly designed, affordable, high-precision active reference monitor with Bass Density control and EQ. The M1 Active series offers incredible definition and flat frequency response from the high-precision drivers and a professionally crafted crossover. The cabinet and drivers have been redesigned for a bold new look and even greater sonic clarity.

The M1 Active 520 has a 1 inch thick front baffle, which minimizes speaker resonance, and the visually stunning acoustic waveguide evenly disperses high-frequency sound across your control room. The M1 Active includes new Bass Density technology, which allows you to tailor these monitors to any room's acoustics. The distinctive top-mounted power/clip indicator lets you know if the speaker is clipping.

The M1 Active 520 features a 75-Watt amplifier and a 5 inch low frequency woofer.

Woofer : 5”
Lightweight, magnetically-shielded, ultra-stiff polypropylene cone with rubber surround.
Tweeter : 3/4”
Silk dome with magnetic shielding.

Features

5 inch low frequency woofer for clear bass and midrange
1 inch silk dome tweeter for clear highs without ear-fatiguing harshness
High-precision drivers offer lower distortion and smoother frequency response
Acoustical waveguide for superior imaging with minimal diffraction
1 in. thick front baffle virtually eliminates speaker resonance
Magnetically shielded for close placement to video monitors and TVs
1/4 in. TRS connector with volume control
Low Frequency Density Switch for acoustic space adjustment of the monitors
Rear port design provides deep bass extension and increased SPL
Hi, Mid, and Low Frequency EQ switches to accommodate user preference and sub-woofers
Top mounted, integrated Power Switch/Clip Light Bar
Bi-amplified Design / Tweeter – 25W, woofer – 50W

Specifications

Frequency Response. 56 Hz – 20 kHz.
Crossover Frequency. 2.8 kHz
Signal-to-Noise Ratio. >100 dB below full output, unweighted.
Inputs. XLR and 1/4” supporting both balanced and unbalanced cabling.
Polarity. Positive signal on “+” pin creates forward cone displacement.
Input Impedance. 20k ohms balanced or 10k ohms unbalanced.
Input Sensitivity. 85 mV noise (pink) produces 90 dB(A) output SPL at 1 meter.
Dimensions (W x H x D). 6.5” x 10.5” x 7.75” / 165 x 267 x 197 mm
Net Weight (each speaker). 13.0 lbs / 6.0 kg.
