Alesis M1ACTIVE 620

Submitted by Lead  Flag on 26-10-2008 @ 22:27
Alesis

Model : M1ACTIVE 620

Brand : Alesis
Brand website :  www.alesis.com

Category : Speakers (active)



Vote :

Nobody votes this as Favourite yet.

 Show Booths

3 times used in 3 DJ Booths

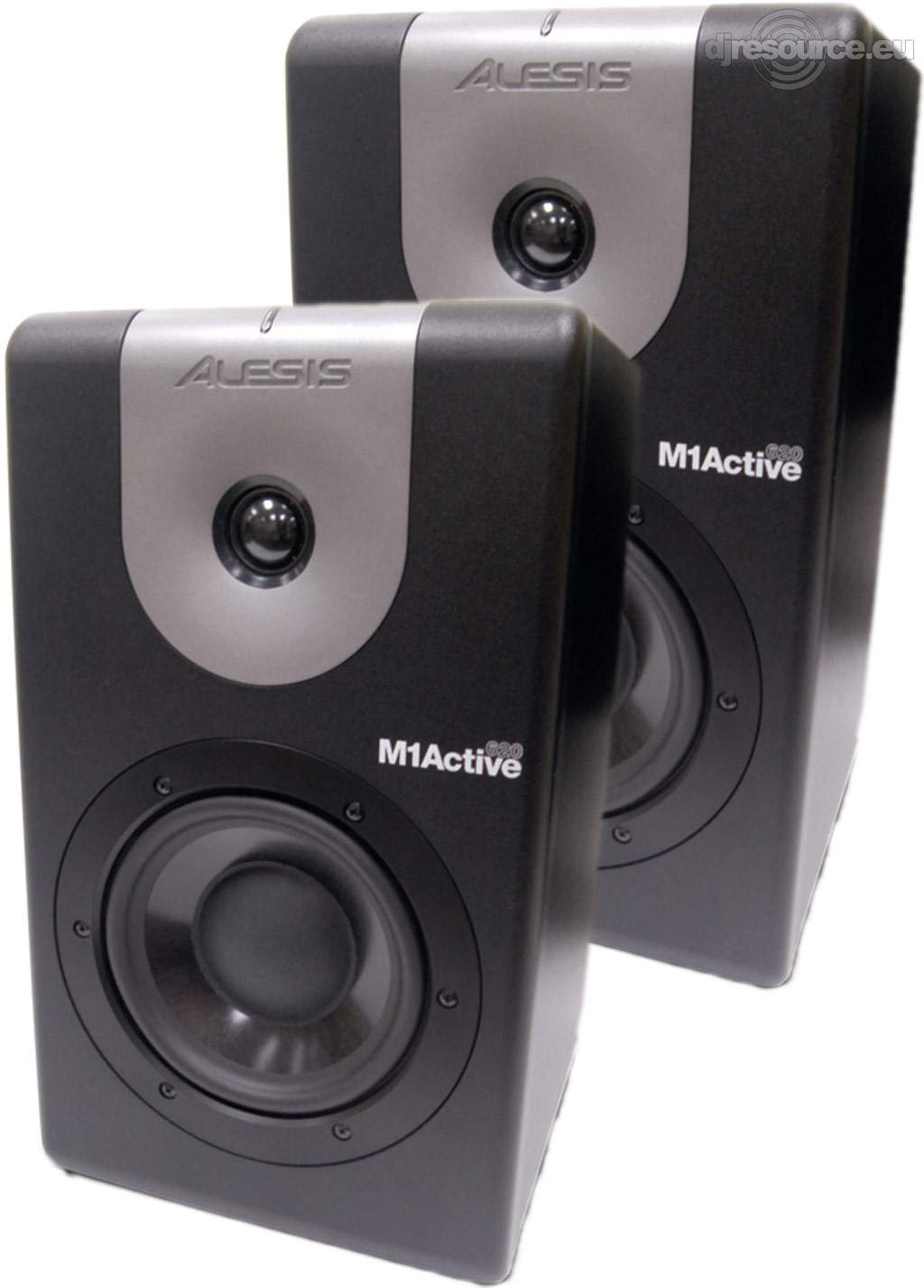

Alesis M1ACTIVE 620 Speakers (active)

The M1 Active 620 is the third generation of the acclaimed Alesis M1 Active Series. The M1 Active 620 offers incredible bass and midrange definition and flat frequency response from its high–precision driver and professionally–crafted crossover.

With a bold new look, redesigned driver, bass density control and EQ, this affordable, high–precision active reference monitor delivers superb sonic clarity.

Features

feature 6.5' low frequency woofer for clear bass and midrange
feature 1' silk dome tweeter for smooth, detailed highs without harshness
feature Bi-amplified design
feature High-precision drivers
feature Acoustical waveguide
feature 1' thick front baffle virtually eliminates speaker resonance
feature Magnetically shielded for close placement to video monitors in computer-based music production studios
feature XLR and 1/4' TRS input connectors with volume control
feature Low frequency density switch for acoustic space adjustment of the monitors
feature Rear port design provides deep bass extension and increased SPL
feature Hi, mid and low frequency EQ switches to accommodate user preference and sub-woofers
feature Top mounted, integrated power switch/clip light bar

Specifications

feature Bi-amplified : Tweeter – 30W, woofer – 65W
feature Woofer. 6 1/4” lightweight, magnetically-shielded, ultra-stiff polypropylene cone with rubber surround.
feature Tweeter. 1” silk dome with magnetic shielding
feature Frequency Response : 49 Hz – 20 kHz
feature Crossover Frequency : 2.8 kHz.
feature Signal-to-Noise Ratio. >100 dB below full output, unweighted.
feature Inputs. XLR and 1/4” supporting
feature both balanced and unbalanced cabling.
feature Polarity. Positive signal on “+” pin creates forward cone displacement.
feature Input Impedance. 20k ohms balanced or 10k ohms unbalanced.
feature Input Sensitivity. 85 mV noise (pink) produces 90 dB(A) output SPL at 1 meter.
feature Dimensions (WxHxD) : 216 x 380 x 260 mm
feature Weight (each speaker) : 9.6 kg
