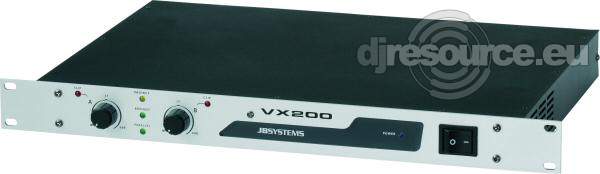

JB Systems VX 200
on 15-03-2008 20:49
Upload additional Image
OK we understand you don't like ads (so don't we) but,
Please consider making this website possible by disabling your Ad Blocker.
Or become a Gold Member, they don't see ads.
Please consider making this website possible by disabling your Ad Blocker.
Or become a Gold Member, they don't see ads.
Product Information
:: Product Description
Professional amplifier for all-round sound reproduction
Short Circuit protection
DC current protection
High temperature protection
Forced fan cooling
Bridge function
Built-in limiters
Balanced XLR and Jack inputs
Ground/lift switch
Speakon® compatible speaker outputs
Binding post speaker outputs (screws)
Strong Aluminum 19” front
:: Technical Information
Power stereo 4 ohm: 2x 110Wrms
Power stereo 8 ohm: 2x 65Wrms
Power bridge 8 ohm: 1x 220Wrms
Power parallel 2 ohm: 1x 220Wrms
Freq. Resp. (+/-1.5dB): 10 - 50000Hz
Input Sensitivity: 0,77V / 26dB / 1.4V
Input impedance: 20 kohm
S/R ratio: >85dB
Damping factor: >150
Slew Rate: 40V/uS
Cooling: Force Fan cooling
Inputs: Balanced XLR/Jack
Outputs: Speakon/binding post
Power supply: AC230V / 50Hz
Dimensions (mm): 44x483x320 (19"/1U)
Professional amplifier for all-round sound reproduction
Short Circuit protection
DC current protection
High temperature protection
Forced fan cooling
Bridge function
Built-in limiters
Balanced XLR and Jack inputs
Ground/lift switch
Speakon® compatible speaker outputs
Binding post speaker outputs (screws)
Strong Aluminum 19” front
:: Technical Information
Power stereo 4 ohm: 2x 110Wrms
Power stereo 8 ohm: 2x 65Wrms
Power bridge 8 ohm: 1x 220Wrms
Power parallel 2 ohm: 1x 220Wrms
Freq. Resp. (+/-1.5dB): 10 - 50000Hz
Input Sensitivity: 0,77V / 26dB / 1.4V
Input impedance: 20 kohm
S/R ratio: >85dB
Damping factor: >150
Slew Rate: 40V/uS
Cooling: Force Fan cooling
Inputs: Balanced XLR/Jack
Outputs: Speakon/binding post
Power supply: AC230V / 50Hz
Dimensions (mm): 44x483x320 (19"/1U)
