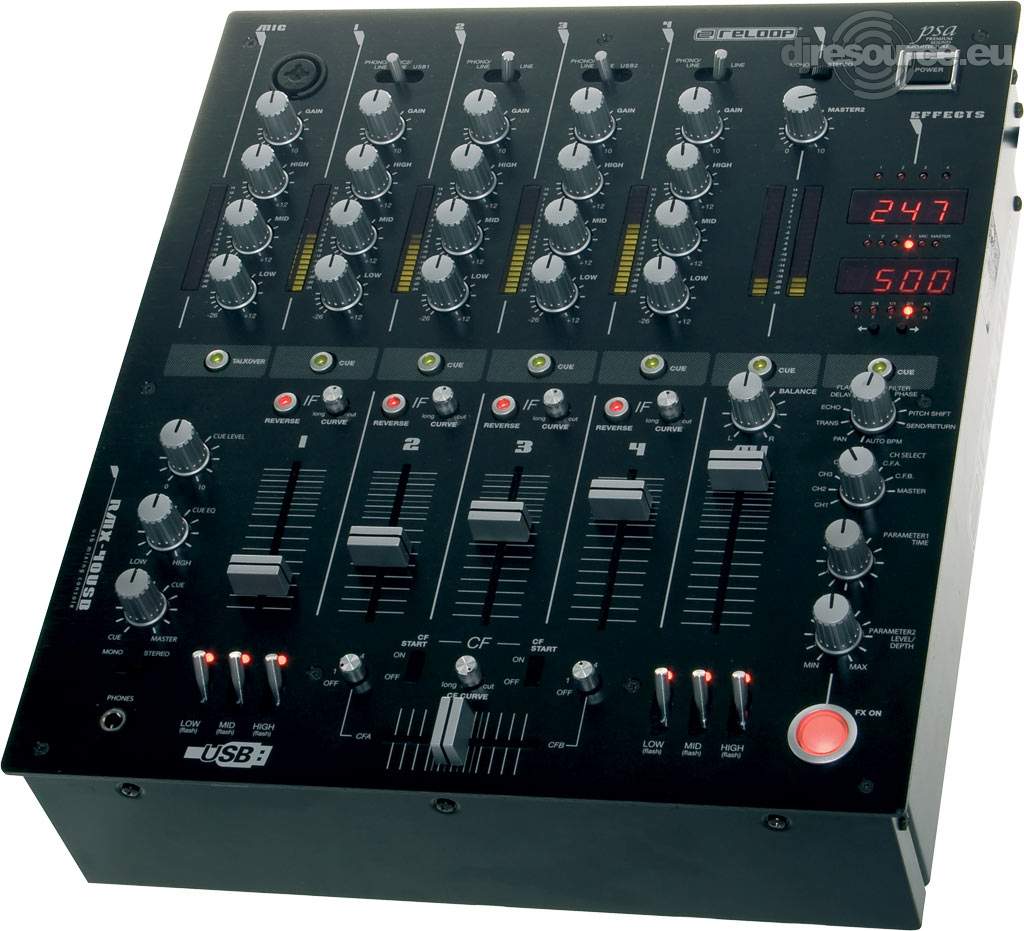

Reloop RMX-40 USB

With the USB edition of the RMX-40 DSP Reloop has created a premium interface between analogue skills and digital creativity. Thanks to the two Full Duplex USB ports two USB-supported signals can be fed from any PC or Mac as a sound source into the console; at the same time two output signals can be recorded with the computer. Preparing the DJ for the future.

Features

4+1 channel PRO DSP club mixer with USB terminal
Two Full Duplex USB ports facilitating feeding and emition of digital sound signals
USB signals can be played via mixer and be recorded simultaneously on a computer
Assignable DSP effect unit (Pan, Trans, Delay, Echo, Flanger, Filter, Phase, Pitch Shifter)
Effects with time and level parameters
Manual beat assignment of effects
Automatic beatcounter for all channels (double 3-digit display)
Excellent sound characteristics due to Premium Sound Architecture (PSA)
Freely assignable Long Life TCT crossfader (45 mm) with adjustable curve
Crossfader start play
Long Life linefaders (60 mm) with adjustable curve, reversible
Kill unit for both crossfader channels, with flash function
Effect send/return for all channels
Extra LED for cue signal per channel
3-band equalizer for channels 1 - 4 and mic 2
3-band equalizer and talkover for mic 1
1-band equalizer and mono/stereo switch for headphones
Master output mono compatible, with balance
Symmeterical (XLR) as welll as asymmetrical (RCA) outputs

Specifications

Input: 4 phono, 4 (+4) line, 1 return, 2 mic, 2 USB
Outputs: 2 master, 1 send, 1 rec, 2 USB
EQ range : +10/-40 dB
Dimensions (WxDxh) : 320 x 357 x 87 mm
Weight : 5.6 kg
