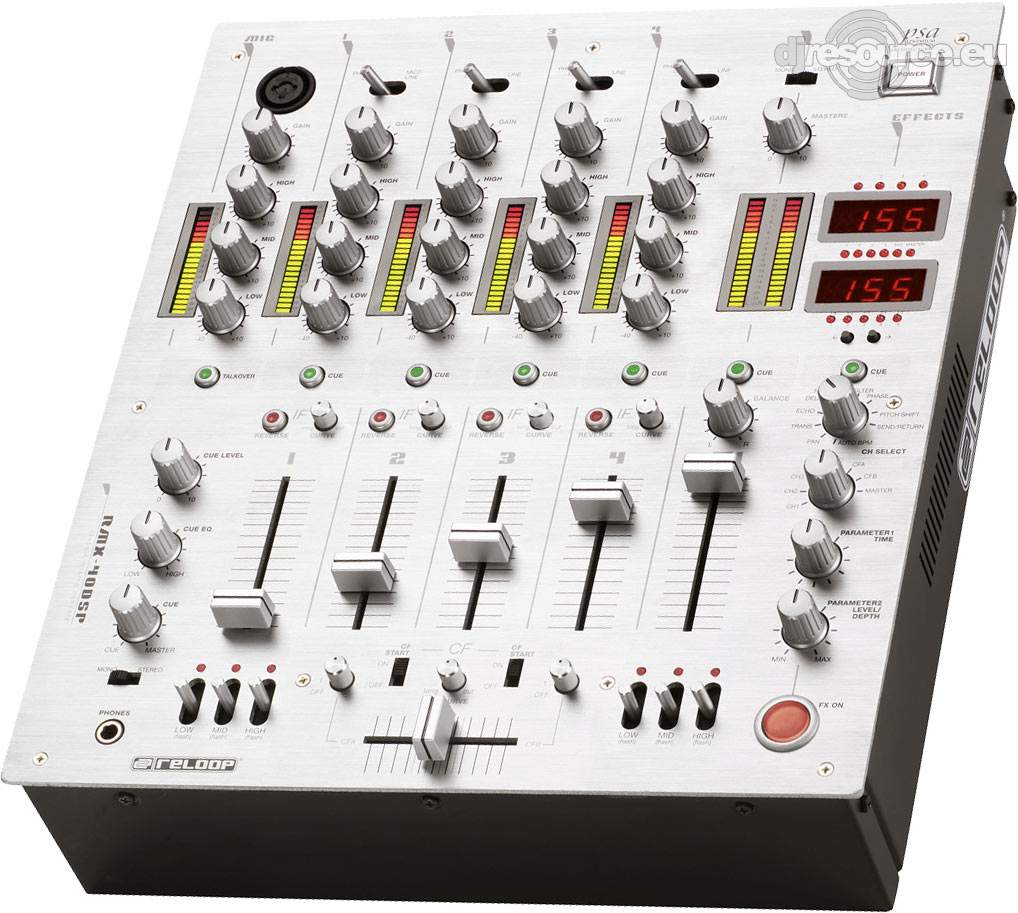

Reloop RMX-40 DSP

The Reloop RMX-40 DSP owes its name to the effect unit which, in addition to the send/return loop for external processors, gives the DJ also a choice of integrated effects like Pan, Trans, Delay, Echo, Flanger, Filter, Phase and Pitch Shifter. Linked to the beat counter, the effect parameters can be assigned to the various beats or simply be manually modulated with a time and a level/depth parameter potentiometer. Additionally, all channels have reversible faders with variable curves, their own level LEDs and automatic beat counters. The cross fader controls all input channels, activates the sources with Fader Start and cuts their frequencies using the Kill Switches. Technology for the pro!

The RMX-40 DSP was honoured with the TECH AWARD 2006 by the famous DJ Mag.

Features

4+1 channel PRO club mixer
Outstanding sound created by Premium Sound Architecture (PSA)
Automatic beat counter for all channels (double 3-digit display)
Freely assignable effects unit (Pan, Trans, Delay, Echo, Flanger, Filter, Phase, Pitch Shifter) with time and level parameters
Manual beat assignment of effects
Freely assignable Long Life TCT Crossfader (45 mm) with adjustable curve
Crossfader Start Play
Long Life Linefader (60 mm) with adjustable curve, reversible
Metal potentiometer
Kill unit for both crossfader channels with flash function (-60 dB )
Send/Return effect for all channels
Extra LED display per channel for pre-listening signal
Gain control with 3-fold sound control (+12 / -26 dB ) per channel
Mic channel 1 with 3-fold sound control (+12 / -26 dB ), Gain, Cue & talk-over
Mic channel 2 with 3-fold sound control (+12 / -26 dB ), Gain & Cue
Ultra high-performance headphones out 1-way equalizer (mono option, Cue-Master-Mix, with mono/stereo switch)
2 adjustable master outputs with balancing function (with mono/stereo switch and trim control)
Outputs: 2 Master (Master 1: XLR/Cinch, Master 2: Cinch), 1 Rec (Cinch), 1 Send (6.3 mm jack)
Inputs: 4 phono (Cinch), 4 (+4) Line (Cinch), 2 Mic (Mic 1: Combi, Mic 2: 6.3 mm jack), 1 return (6.3 mm jack)

Specifications

Frequency range: 20 Hz - 20 kHz
S/N ratio: -80 dB
Distortion: 0.01%
Dimensions: 320 x 357 x 87 mm
Weight: 5.6 kg
