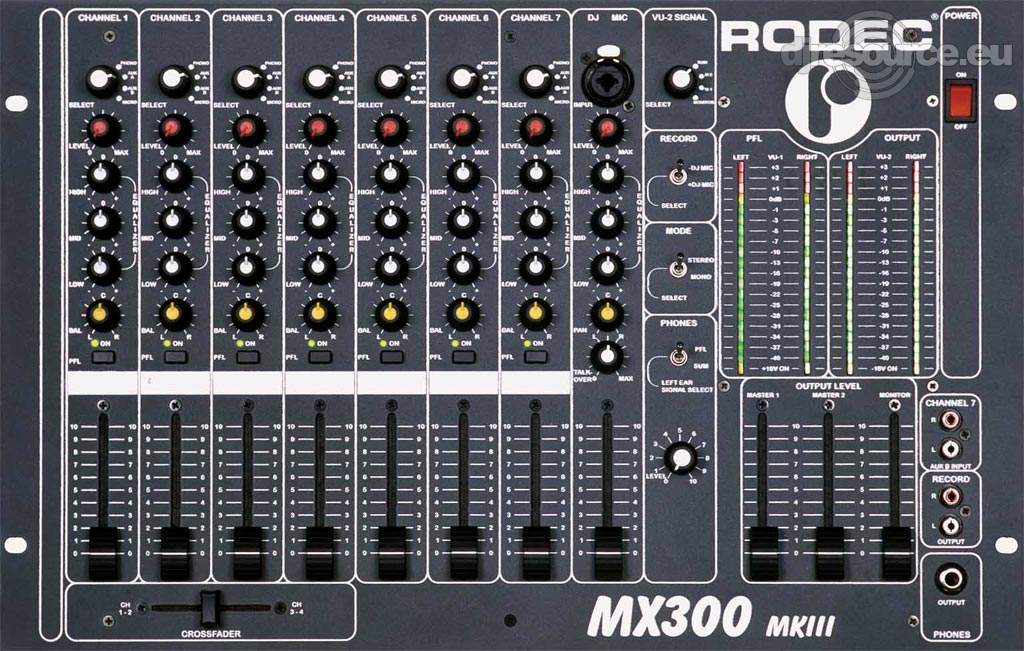

Rodec MX300 MK3

Features

Balance/panoramic control on all input channels
Pushbuttons with LED indicator for PFL activation
Soft touch fader- and rotative knobs for a better grip
A total of 30 inputs in a 19inch mixing panel
Frontplate (19 inch) in dark grey satin finish with fosfo print (lights up in the dark)
Seven multiple input-channels (Line+Line+Mic+Phono) + one DJ-mic channel
Specially designed high quality input stages to reduce external disturbances
Gain and 3-channel tone control on all input channels
Easy-slide 60mm ALPS faders
Combined XLR-JACK connector for the DJ-mic on the frontpanel
Crossfader between channels 1-2 and 3-4
Four LED VU-meters. Range from -40dB to +3dB. First two monitor PFL or split signal, last two monitor output signals, selecteable with a rotative selection switch
Two master outputs + one monitor output (DJ-microphone free)
Additional channel input connector and record out connector on the front panel
Electronical symmetrical outputs for better signal transmissions on both masters
Eight record/aux outputs
Very powerful headphones-output
Second headphones-connector on the backpanel
Torodial transformer to reduce hum
Power mains-filter
Very robust slanted (25° bottombox.
Channel Equalizers
- Bass +/-13dB @ 100Hz
- Middle +/-13dB @ 1kHz
- High +/-13dB @ 10kHz

Specifications

THD: < 0.01%
Subsonic filter: -25dB @ 10Hz
Power source: 230V / 50Hz-60Hz
Power consumption: OFF=2.0VA ON=48.8VA
Dimensions Front: 482mm x 310mm (19' x 7HE)
Dimensions Chassis: 444mm x 295mm x 150mm
Weight: 7.6kg
