Rodec MX180 LTD 50

This could be called the 4th generation of the Rodec MX180. It was produced in a limited run of maximum 500 pieces or till 2006, when it was 20 years of the MX180 model.

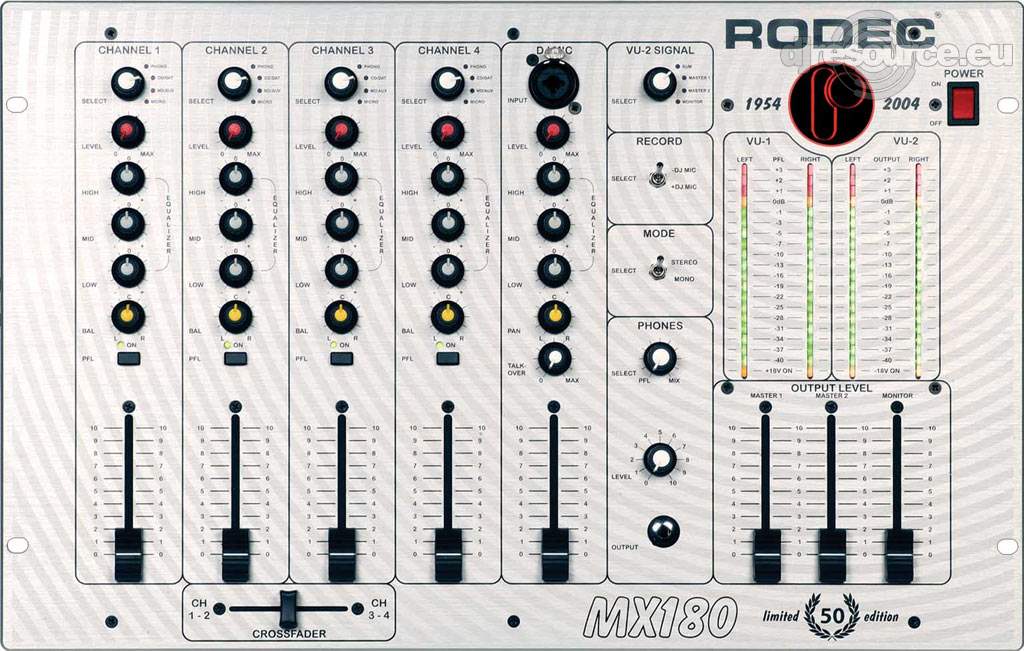

The front panel was brushed 6mm aluminium with 50 year ring. There is a red illuminated RODEC logo, balanced outputs, EFX inserts, Headphones Mix and Mic as combo XLR/Jack.

Successor : Rodec MX180 ORIGINAL
Predeccessor : Rodec MX180 MKIII

Features

Red illuminating RODEC logo.
Soft touch fader- and rotative knobs for better grip.
Easy-slide 60mm ALPS faders.
Front panel in brushed aluminium of 6mm thick with 50 year rings.
Four multiple input-channels (Line+Line+Mic+Phono) + one DJ-mic channel.
Specially designed high quality input stages to reduce disturbances from the outside.
Gain and 3-channel tone control on all input channels.
Balance/panoramic control on all input channels.
Channel PFL select with pushbuttons with LED-indicator
Crossfader between channels 1-2 and 3-4.
Four LED VU-meters. (-40dB to +3dB ). The first two show the PFL signal, the last two the output signals.
Two master outputs + one monitor output (DJ-microphone free).
2 Electronical symmetrical outputs for better signal transmissions.
Four record-outputs also useable as aux-output.
Music effects insert connectors (JACK) to connect external effect units.
Headphones signal mix potmeter to mix between PFL- and MIX-signal.
A very powerful headphones-output.
Second headphones-connector on the backpanel.
Torodial transformer
Power mains-filter.
A very robust slanted (25° ) design.
Channel Equalizers
- Bass +/-13dB @ 100Hz
- Middle +/-13dB @ 1kHz
- High: +/-13dB @ 10kHz

Specifications

THD: < 0.01%
Subsonic filter: -25dB @ 10Hz
Power source: 230V / 50Hz-60Hz
Power consumption: OFF=2.0VA ON=23.4VA
Dimensions Front: 482mm x 266mm (19' x 6HE)
Dimensions Chassis: 444mm x 254mm x 120mm
Weight: 6.02kg
