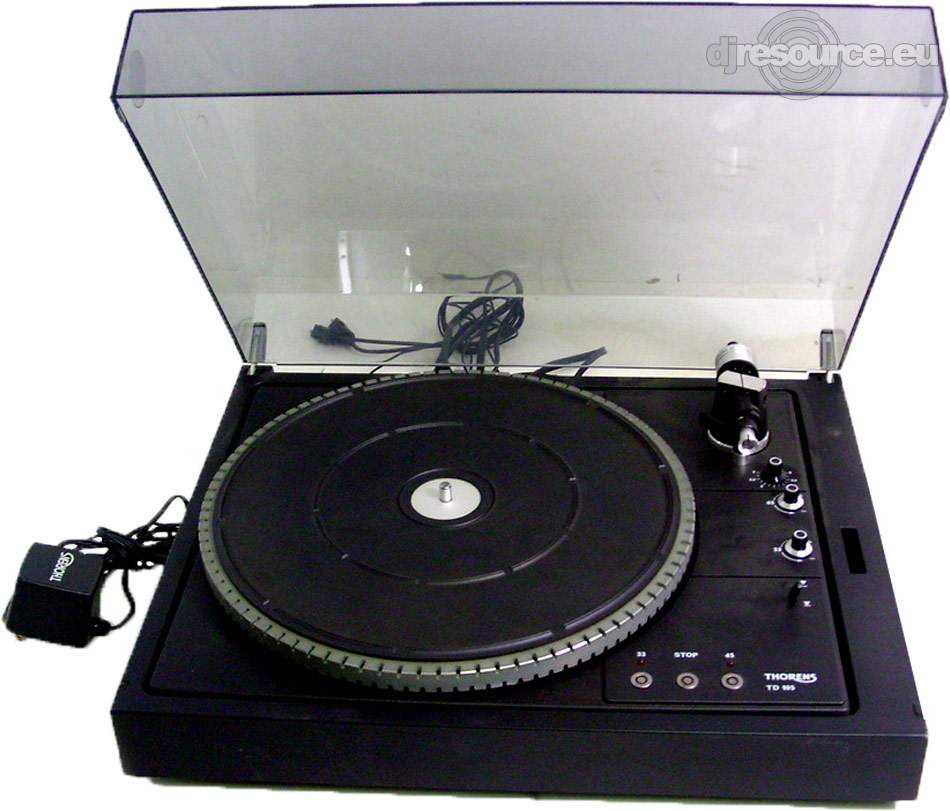

Thorens TD105

This semi automatic turntable is belt driven platter has a 72-pole DC engine.

The Thorens TD 105 semi-automatic, high-fidelity turntable incorporates advanced technical features to afford true state of the art performance.It employs a special Thorens suspension system for the floating chassis and an exclusive Isotrack tonearm with precision bearing assembly and low-mass construction which enables optimum tracking characteristics to be realised with modern pickup cartridges.

The TD 105 also employs a velocity sensitive electronic shut-off which raises the tonearm, returns it to it's rest, and stops the motor.
The electronic shut-off at the end of a record operates without frictional contact with the tonearm, ensuring precise performance and full protection of the record and pickup stylus.

All operating functions are initiated by electronic switching keys which respond to a light touch of the finger.

Features

Speed : 33, 45
Pitch : ±6%

Specifications

Drive method: 1 step belt drive
Motor: dc motor with 72 pole tacho-generator
Speed control: electronic
Pitch control: +-6%
Platter: 300mm, 1.3kg zinc alloy, dynamically balanced
Wow and flutter: 0.05%
Rumble: 65dB
Tonearm effective length: 222mm
Effective mass: 7.5g
Overhang: 15.5mm
Offset angle: 23 degrees
Dimensions (WxDxH) : 435 x 355 x 125 mm
Weight : 5.5kg
