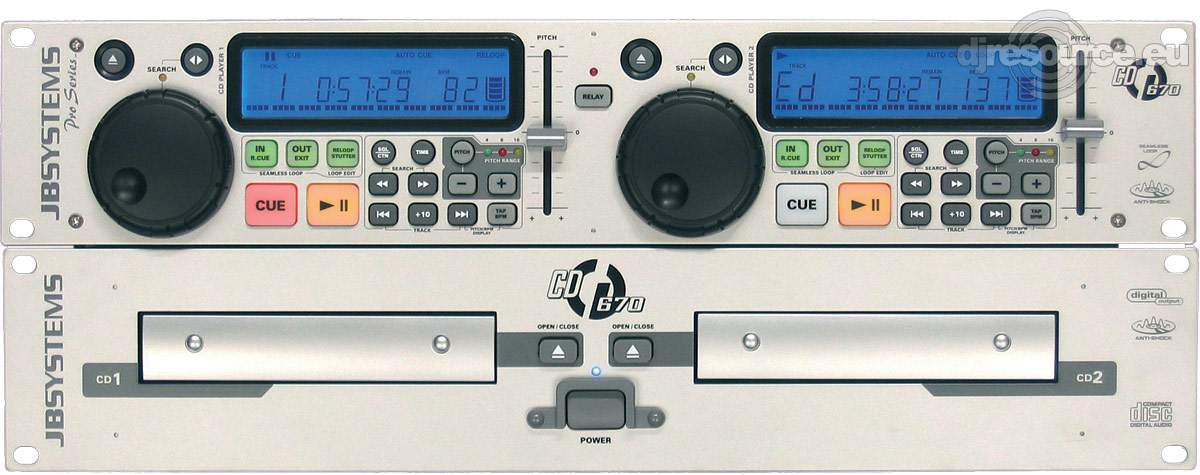

JB Systems CD 670

Features

Instant buffer start with cue stutter effect
Seamless loop with reloop and stutter effect
Real-time loop edit function
Full automatic beat counters with TAP function
Anti-shock memory, 20seconds
Auto cue function (-48dB )
Real-time cue
Pitch control (3 ranges: +/- 4, 8, 16%)
Pitch bend on jog wheel and buttons for perfect mixes
Reads CD-DA, CD-R, CD-RW
Fader start/stop (back cue)
Big “super twist” LCD display for excellent readability
High quality illuminated buttons
Big dial wheels: 1/75sec frame search and pitch bend
Relay play: uninterrupted playback on 2 CDs
Single/continuous play
Selectable elapsed, remain and total remain time
S/PDIF digital output (RCA/cinch)
60 seconds transport protection
Sleep mode (saves the life span of the laser)

Specifications

Power Consumption: 21W
Output level: 2,0Vrms +/0.5dB @ 1kHz, 0dB
Frequency response: 20-20.000Hz (+/-0,4dB )
THD + noise (20kHz LPF): 0,01% @ 1kHz, 0dB
S/N Ratio (IHF-A): >92dB @ 1kHz, 0dB
Short access time (next track): <2sec
Long access time (track 1 - 20): <4sec
Laser Pickup: Sony KSM-213CCM 3spot detection 780nm
Digital output: 0,5Vpp +/-0,1 (load = 75&Omega
Dimensions Drive : 482(W) x 88,8(H) x 262,5(D) mm
Dimensions Controller : 482(W) x 88,8(H) x 94(D) mm
Weight Drive : 5,0kg
Weight Controller :  1,8kg
