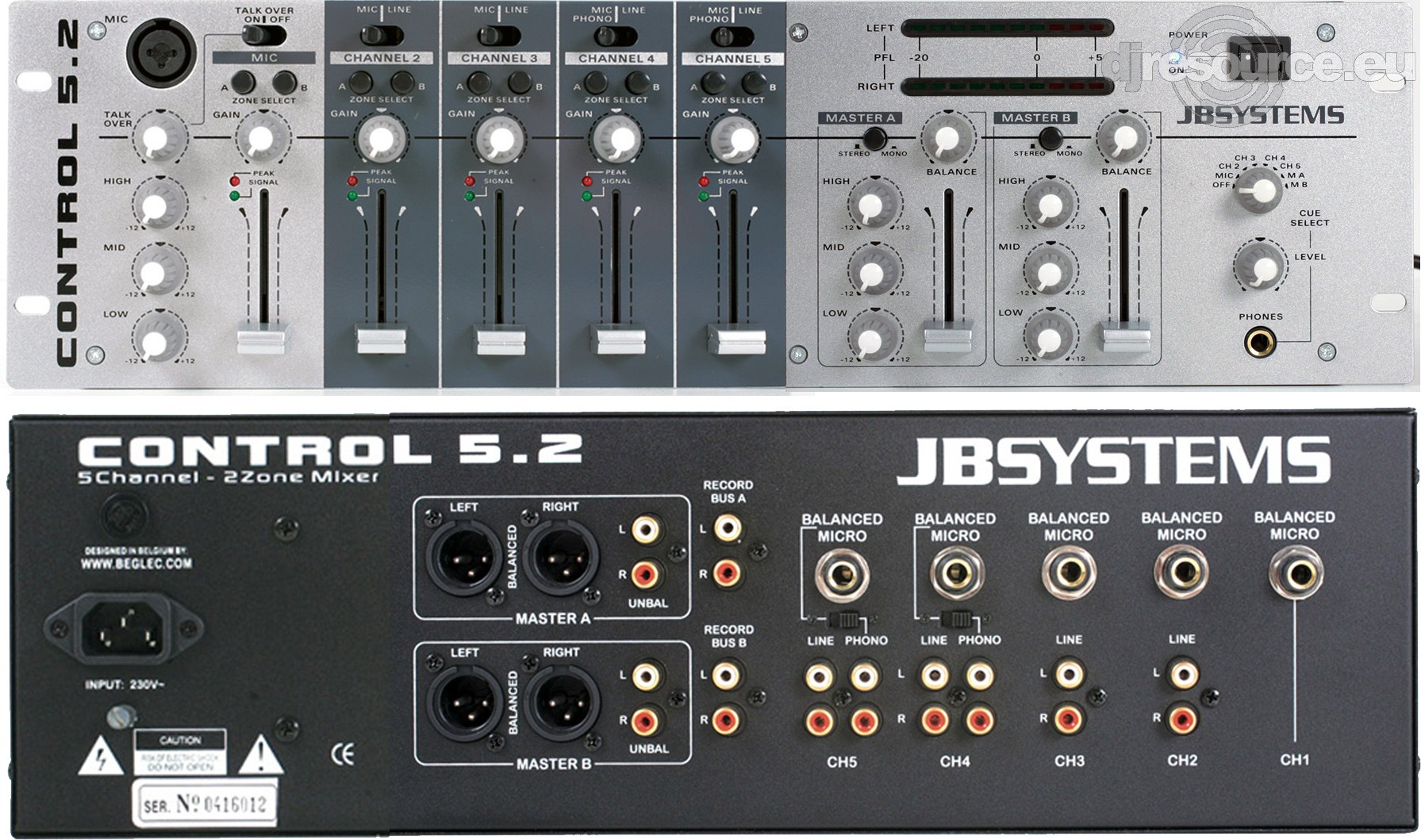

JB Systems CONTROL 5.2

Submitted by jannickv Flag

on 15-03-2008 18:27
Last edited by Lead Flag

on 16-07-2018

Upload additional Image

Model : CONTROL 5.2

Brand : JB Systems
Brand website : www.jb-systems.eu

Category : Mixer

Availability : 2009 - Today ?

This product has been discontinued

Vote :

Make FavouriteNobody voted this as Favourite Mixer yet.

OK we understand you don't like ads (so don't we) but,
Please consider making this website possible by disabling your Ad Blocker.
Or become a Gold Member, they don't see ads.

Product Information

Features

2 Independent Zones, each with balanced XLR-output (+unbalanced on cinch)
Each zone has 3band tone controls, balance, volume and mono/stereo switch
11 inputs on 5 Channels (5 balanced mic + 4line + 2phono)
1Microphone with 3band tone control and zone assignable adjustable talkover.
Every Channel can be assigned to zone A, zone B or both.
Every Channel has individual peak and signal present leds.
Gain levels and 45mm faders on all channels
PFL with rotary selector, cue level adjustment and 6.3mm headphones jack.
2 independent record outputs without Channel1 microphone and free from talkover muting

Specifications

Mic Input: 1,5mV/10kOhm
Phono Input: 3mV/47kOhm
Line Input: 150 mV/22 kOhm
S/N Ratio: > 85 dB/1 kHz
Master A/B Output: 1,5V/4 kOhm unbalanced
850mV/600 Ohm balanced
Frequency Response: 20-20.kHz
Tone Control: -12 dB, +12dB
Phones: 1V/32 Ohm
Dimensions: (mm) 134/H x 483/W x 130/D (19'/3U)

Replaced by successor JB-Systems Mix 5.2.
