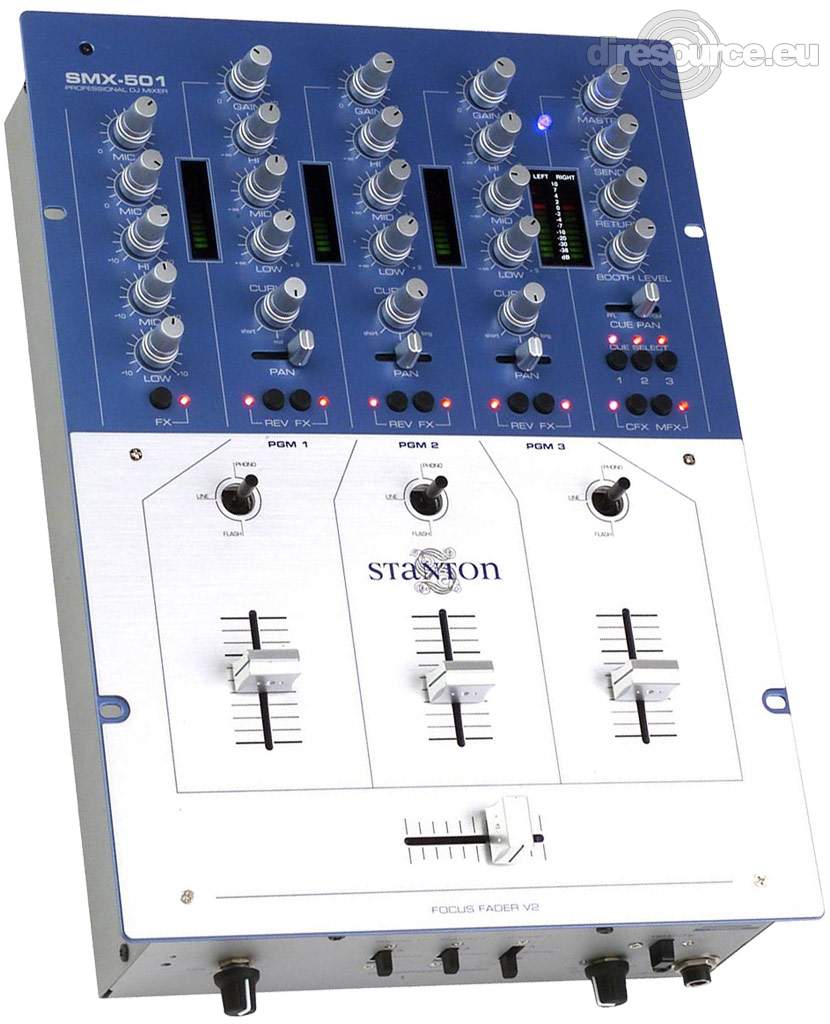

Stanton SMX-501

Submitted by Lead Flag

on 08-03-2008 16:24

Upload additional Image

Model : SMX-501

Brand : Stanton
Brand website : www.stantondj.com

Category : Mixer

Availability : 2002 - Today ?

This product has been discontinued

Vote :

Make FavouriteNobody voted this as Favourite Mixer yet.

OK we understand you don't like ads (so don't we) but,
Please consider making this website possible by disabling your Ad Blocker.
Or become a Gold Member, they don't see ads.

Product Information

Features

Assignable crossfader (A, B, Bypass)
VCA crossfader curve control and reverse
Curve control and reverse on Line faders
Balanced XLR master output (unbalanced RCA also provided)
Booth output
Headphone mute
Dual headphone outputs (1/4'/6.3mm and 1/8'/3.5mm)
Rotatable three-position phono/line switch with flash feature
Separate channel input and master output LED meters
Effects loop, which can be assigned to each individual channel, plus the mic
Custom high-quality Penny & Giles (P&G) crossfader, with VCA curve adjustment
Each channel features gain control, slider pan, and a versatile three-band EQ with complete kill
Fully-assignable Send/Return connections for external effects
Pre Fader Listen (PFL) of channels and effects loop with Cue Pan control
Three line, three phono, and two mic inputs
Mic channel features gain controls and three-band EQ.
Channel fader reverse switch
Protekt Panel
User-replaceable faders
OS2 compatible

Specifications

Dimensions (DxWxH): 355 x 259 x 95mm
