Model : P-400

Brand : DAP Audio
Brand website : www.highlite.com

Category : Amplifier

This product has been discontinued

Vote :

Make FavouriteNobody voted this as Favourite Amplifier yet.

OK we understand you don't like ads (so don't we) but,
Please consider making this website possible by disabling your Ad Blocker.
Or become a Gold Member, they don't see ads.

Product Information

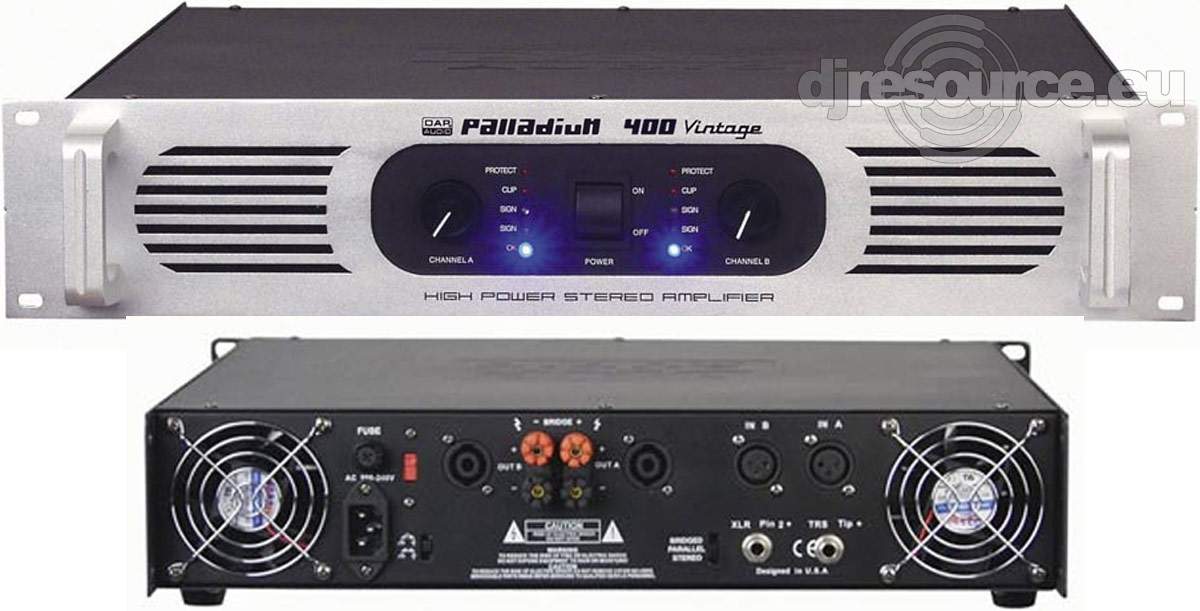

These completely redesigned Palladium amplifiers will bring –good looks' into your gear rack. Inspired by the retro-look found in tube-amps and 19' rackgear.

Features

Tough –roadproof housing
19' rackmountable
2 front attenuators
Rear panel signal ground lift jumper
Cooling: 2 variable speed DC fans
Indicators (per ch.): PROTECT LED, CLIP LED, SIGNAL LED, POWER LED, Temperature, DC, sub / ultea, sonic short circuit, IGM, output

Specifications

Stereo mode: 2x 100 Watt RMS - 8 Ohm, 2x 200 Watt RMS - 4 Ohm
Bridged mode: 400 Watt RMS - 8 Ohm
Freq. response: 20 Hz -20 kHz: + 0.1 /- 3 dB (1W / 8 Ohm)
THD into 4 Ohm, 1 kHz: <0.05% @250W
SMPER IMD: <0.01% @160W, into (60 Hz & 7 kHz)
Slew Rate: 40V/ µs
Damping Factor: 300:1, 1 kHz @8 Ohm
Input CMRR (@1 kHz): >60 dB
Voltage Gain: 50 x standard
Input Sens. (@8 Ohm): 0.775V for rated power
Input Impedance: 20 kilo-Ohm, balanced
10 kilo-Ohm, unbalanced
Hum and Noise: -103 dB
Crosstalk: <60 dB
Power Supply: 230 V / 50-60 Hz
Dimensions (WxDxH): 483 x 400 x 89 mm
Weight: 18 kg
