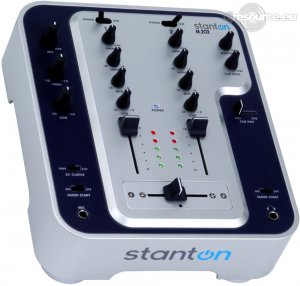

Stanton M.202

The M.202 is a compact 2-channel mixer designed with the aspiring DJ in mind. It features a high-performance crossfader with 2 -way curve adjust, two selectable Phono/Line inputs, a Microphone input and the quality look and feel of Stanton's new industrial design. Fader Start outputs let you control the playback of fader start-compatible CD players, making the M.202 the perfect match for Stanton's new C-Series CD players.

Features

Affordable 2-channel mixer featuring new Stanton design
3-band EQ per channel with +9/-26 dB boost/cut
Microphone input with separate gain and 2-band EQ
Cue Pan and Cue Volume controls
Fader Start outputs for use with compatible CD players
High-quality crossfader delivers long life and superior performance
2-way crossfader curve control for mixing or scratching
Channel EQ
- Hi 9 +/- 2dB AT 13KHz -15 +/- 3dB AT 13KHz
- Mid 9 +/- 2dB AT 1KHz LESS THAN -23dB AT 1KHz
- Low 9 +/- 2dB AT 70Hz -26 +/- 3dB AT 70Hz

Specifications

Master Level:  >+14dBV (8.0V)
Frequency Response : : (line) 20-20KHz ±2dB
Output Noise : (IEC-A WEIGHTED): < -90dBV
THD + N: (line) < 0.05% 20 - 20KHz
Signal to Noise Ratio: <106dB
Crosstalk LESS THAN -80dB AT 1KHz BETWEEN CHANNELS.
Mic EQ : High ±10 +/- 2dB AT 10KHz, Low ±10 +/- 2dB AT 100Hz


Inputs/Outputs
Line Inputs 2 (RCA), -10dB/47K ohm
Phono Inputs 2 (RCA), -50dB/47K ohm
DJ Mic Input 1 (1/4'), -50dB/6K ohm
Master Output 1 (RCA), -10dB/47K ohm
Headphone Output 1 (1/4'), -3dB/33 ohms
Mic Tone +/-10dB (Hi, Low)
Dimensions 230 (W) X 267 (D) X 111 (H) mm
Weight 1.61Kg
