Core Beat is the little brother of the Core MIX-3 USB. It has 6 Line inputs, a microphone input and a Bluetooth playback module.

The Bluetooth playback module makes it possible to mix your connected players with wireless devices such as a smartphones or tablets. It also has an input that can be switched between line and MP3 level. The MP3 level adjusts the input sensitivity into the correct level for MP3 players, smartphones or tablets. Now you can playback your MP3 devices directly without signal loss.

Features

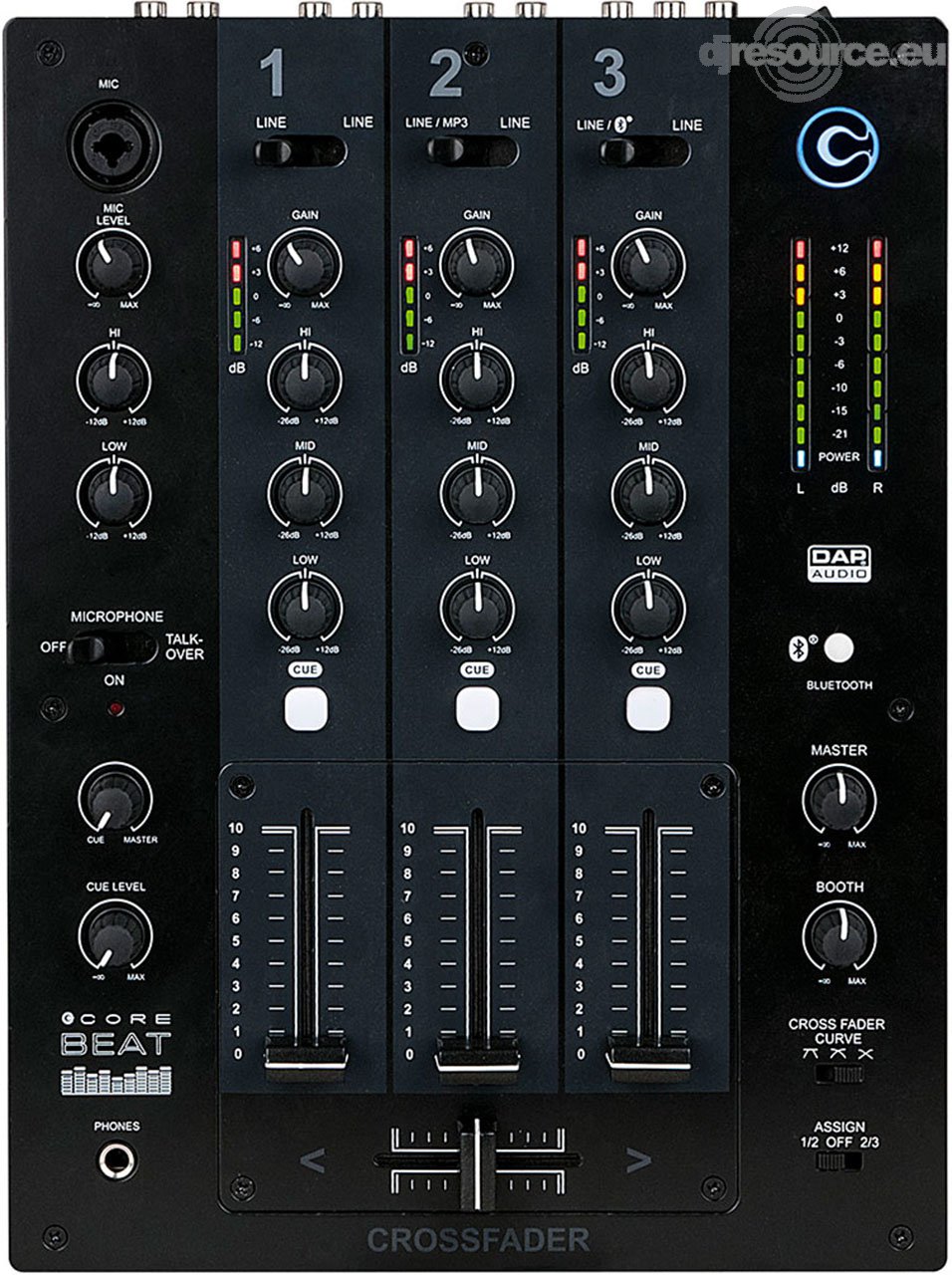

3+1 Channel Mixer
3 Band EQ, Trim and VU meter per channel
2 Band EQ on Microphone
Selectable cross-fader curves
Microphone Talk over
Bluetooth Playback

Specifications

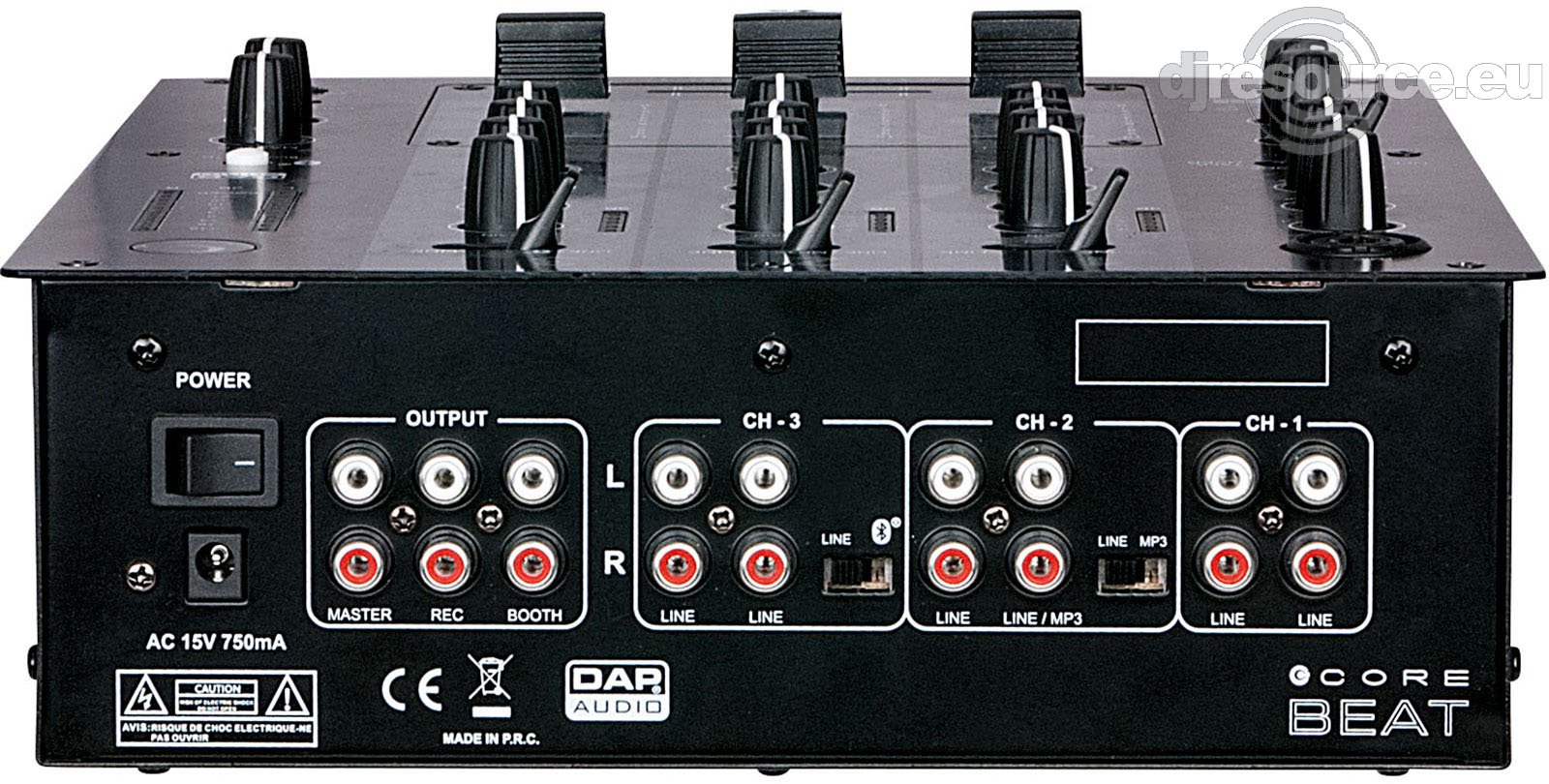

Inputs : 6 Line(RCA), Bluetooth, Mic(XLR/Jack Combo)
Outputs : Master (RCA), Booth(RCA), Record(RCA), Headphones(Jack)
Frequency Response : 20 - 20kHz
Signal to Noise ratio : >85dB
Crosstalk : 75dB
EQ Low : -26/+12dB @ 100Hz
EQ Mid :  -26/+12dB @ 1kHz
EQ High : -26/+12dB @ 10kHz
Mic EQ Low : ±12dB @ 100Hz
Mic EQ High : ±12dB @ 10kHz
Channel Fader length : 60mm
Power Supply : AC 15V 750mA / 240V, 50/60Hz
Power Consumption : 8W
Dimensions (WxDxH) : 247 (12'') x 331 x 84mm
Weight : 4.1kg
