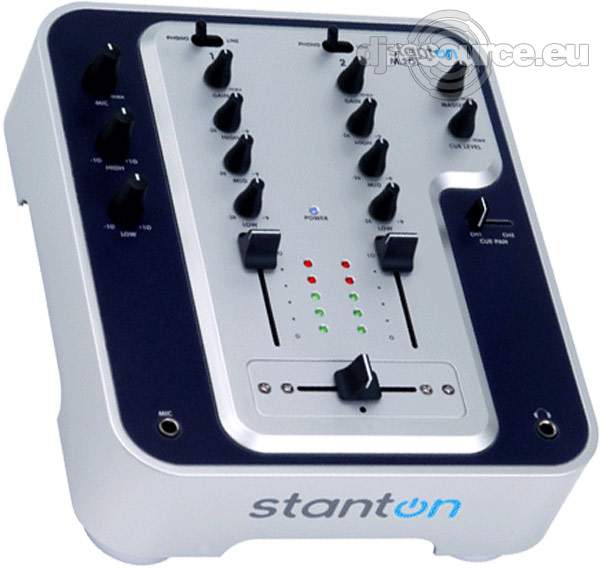

Stanton M.201

The M.201 is a compact 2-channel mixer designed with the aspiring DJ in mind. It features a long lasting crossfader, two selectable Phono/Line inputs, a Microphone input and the quality look and feel of Stanton's new industrial design.

Features

Affordable 2-channel mixer featuring new Stanton design
High-quality crossfader delivers long life and superior performance
3-band EQ per channel with +9/-26 dB boost/cut
Microphone input with separate gain and 2-band EQ
Cue Pan and Cue Volume controls
Channel EQ
 - Hi 9 +/- 2dB AT 13KHz -15 +/- 3dB AT 13KHz
 - Mid 9 +/- 2dB AT 1KHz LESS THAN -23dB AT 1KHz
 - Low 9 +/- 2dB AT 70Hz -26 +/- 3dB AT 70Hz

Inputs/Outputs
Line Inputs 2 (RCA), -10dB/47K ohm
Phono Inputs 2 (RCA), -50dB/47K ohm
DJ Mic Input 1 (1/4'), -50dB/6K ohm
Master Output 1 (RCA), -10dB/47K ohm
Headphone Output 1 (1/4'), -3dB/33 ohms

Specifications

MAX. OUTPUT (THD=1%)
Master MORE THAN +14dBV (8.0V)
CHANNEL BALANCE WITHIN 3dB
FREQUENCY RESPONSE: (line) 20-20KHz ±2dB
OUTPUT NOISE (IEC-A WEIGHTED) (line to MST) LESS THAN -90dBV
THD + N:  (line) LESS THAN 0.05% 20 - 20KHz
Signal to Noise Ratio <106dB
Crosstalk LESS THAN -80dB AT 1KHz BETWEEN CHANNELS.
Mic EQ : High ±10 +/- 2dB AT 10KHz, Low ±10 +/- 2dB AT 100Hz
Dimensions: 230 (W) X 267 (D) X 111 (H) mm
Weight 1.61kg
