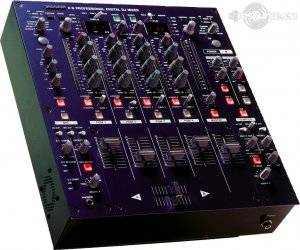

Tascam X-9

The TASCAM X-9 is a new tool for serious DJs that combines a highly flexible 4-channel mixer with a dual effects processor and a dual sampler. The result is a creative powerhouse that helps to add originality and inspiration for every mix.

Designed specifically for high-end creative DJs, the TASCAM X-9s control surface is laid out to combine ultra-high performance and intuitive ease of use. Its multitude of analog and digital inputs allows for incredible flexibility for interfacing with a wide variety of DJ gear such as vinyl turntables, dual CD decks, external effects devices and other audio tools.

To achieve the ultimate in creative control of your mixes, the X-9 includes a wide variety of high-quality built-in effects. You can add reverb, delay, echo, flanging, auto panning, pitch control, a transformer effect and a low pass filter to any audio signal that passes through the X-9, with 30 spaces to store your settings for later use. The X-9 also features parametric EQan essential control feature for exciting custom mixes. All EQ settings are also storable and recallable. Also, using the X-9s sampling function, you can select a sampling source from Input 1 through 4, from the master output, the microphone input, or both sides of the crossfader. Along with its customizable fader start function, which can be assigned to several controllers on the mixer, the X-9 offers all the features you ever wanted in a DJ mixer and a few you never knew you needed until now.


Features
4-channel stereo inputs on line and phono inputs
2 coaxial digital inputs (channels 1 and 2), 2 external line inputs (channels 3 and 4)
Dual sampler
Fully-parametric 3-band EQ on each input channel with 100 storable patterns
3-stage adjustable fader curve, Input fader reverse, Cross fader reverse, Cross fader curve control
1 microphone input with 2-band EQ
Low/Mid/High Cut control for both cross fader sides
Booth output, analog balanced Master output with attenuator,
Analog unbalanced Master output with attenuator and pre/post master fader switch
Coaxial digital Master output with pre/post master selection in the menu
Headphone outputs on front and top panels, with 3-stage headphone EQ
4 fader start/stop connectors
Optional MIDI In/Out/Thru connectors
External stereo effect send/return connectors
2 assignable foot switches connectors
2 Digital Coaxial Inputs on channel 1 and 2 (IEC60958 TYPE I/II)
Digital Output coaxial (IEC60958 TYPE II)
2 built-in digital effects processors
Effects: reverb, delay, echo, flanger, auto pan, pitch control, transformer and low pass filter
30 storable effects settings
Equalizers per Channels
- HIGH 6kHz ? 20kHz, -40dB ? +12dB
- MID 200Hz ? 6kHz, -40dB ? +12dB
- LOW 20Hz ? 200Hz, -40dB ? +12dB
Equalizer Microphone
- HIGH 10kHz, -12dB ? +12dB
- LOW 100Hz, -12dB ? +12dB


Specifications
Frequency Response (line) : 20Hz ? 20KHz, ?2.0dB
Signal-to-noise ratio (line) : 84dB (IHF A WTD)
Total harmonic distortion (line) : <0.025%
Crosstalk : <-70dB (@1KHz)
Power consumption : 42W
Dimensions (WxDxH) : 320 x 354 x 87 mm
Weight : 7.0kg
