Stanton 500AL
on 13-03-2009 00:34
Upload additional Image
Model : 500AL
Brand : Stanton
Brand website : www.stantondj.com
Category : Stylus & Cartridge
This product has been discontinued
Vote :
Make FavouriteNobody voted this as Favourite Stylus & Cartridge yet.
OK we understand you don't like ads (so don't we) but,
Please consider making this website possible by disabling your Ad Blocker.
Or become a Gold Member, they don't see ads.
Please consider making this website possible by disabling your Ad Blocker.
Or become a Gold Member, they don't see ads.
Product Information
For years this was the industry standard. A very cheap and robust cartridge that could survive the worst things that can happen (putting the needle on the slipmat).

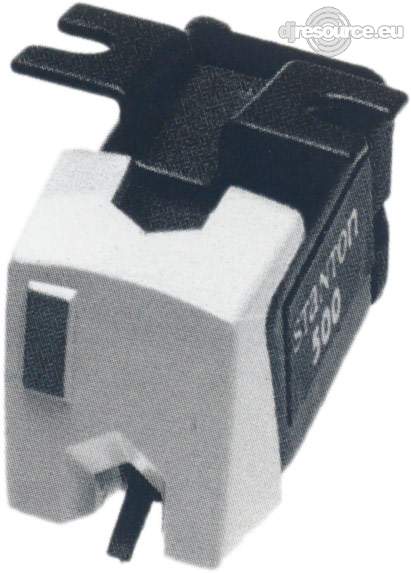

The earliest version of this stylus was white with a blue dot and gained all the fame for the 500-series.
At some point in the mid 90's Stanton decided to improve their stylus and features this new model (Stanton D 500AL II) with a blue painted dot on the front. But this was not the improvements Stanton had hoped for as the stylus was a long way from the quality it's predecessor had.
Stanton responded in re-designing the stylus and re-introduce it again, but now made from blue materials. This was an improvement over the 'bad' update, but it still didn't tip the quality of the original.
Specifications
Frequency Response 20 to 17 kHz
Output @ 1kHz: 4.6mV
Channel Separation @ 1 kHz: 28dB
Channel Balance @ 1 kHz: within 2 dB
Tracking Force: 2 to 5 grams
Stylus Tip: Spherical .7 mil Special High Polish
DC Resistance: 535 ohms
Inductance: 400 mH
Cartridge Weight: 5.5 grams
Tracking Ability: 100? @ 3 grams
Recommended Load: 47k ohms and 275 pF
The earliest version of this stylus was white with a blue dot and gained all the fame for the 500-series.
At some point in the mid 90's Stanton decided to improve their stylus and features this new model (Stanton D 500AL II) with a blue painted dot on the front. But this was not the improvements Stanton had hoped for as the stylus was a long way from the quality it's predecessor had.
Stanton responded in re-designing the stylus and re-introduce it again, but now made from blue materials. This was an improvement over the 'bad' update, but it still didn't tip the quality of the original.
Specifications
Frequency Response 20 to 17 kHz Output @ 1kHz: 4.6mV Channel Separation @ 1 kHz: 28dB Channel Balance @ 1 kHz: within 2 dB Tracking Force: 2 to 5 grams Stylus Tip: Spherical .7 mil Special High Polish DC Resistance: 535 ohms Inductance: 400 mH Cartridge Weight: 5.5 grams Tracking Ability: 100? @ 3 grams Recommended Load: 47k ohms and 275 pF
