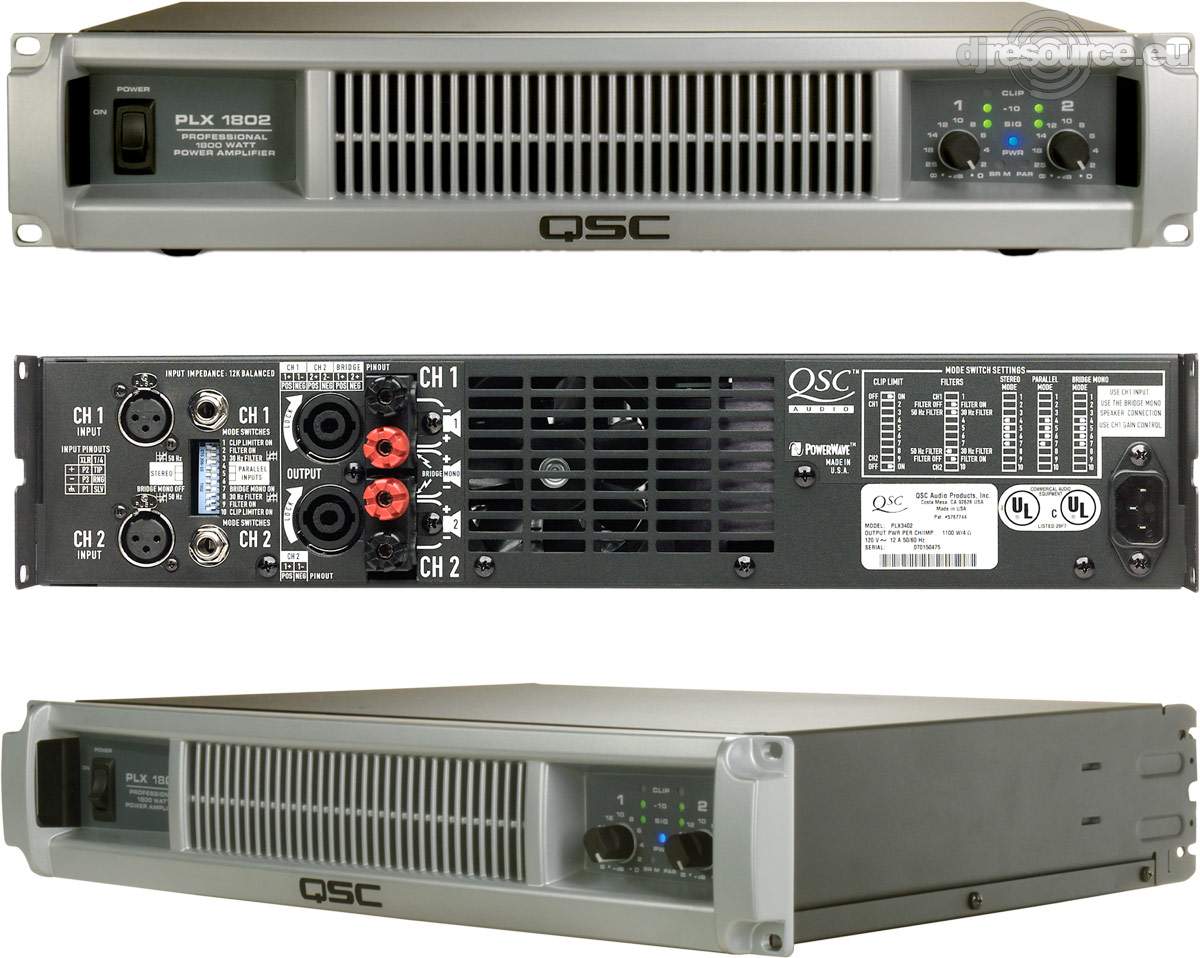

QSC PLX 1802

The PLX2 series is a range of premium quality, high-power amplifiers designed for the most demanding live performance uses. Built on the third generation of QSC PowerLight technology, PLX2 amplifiers combine light weight, superlative audio quality and proven QSC reliability.

The PLX1802 is an excellent choice for users who need to drive up to four loudspeakers from each amplifier channel (2 ohm loading), or when extremely high power bridge mono operation is required. The PLX1802 features built-in subwoofer processing, filter switches, and front panel indications of bridge mono status.

Features

 Exclusive PowerLight power supply
 Ultra-low distortion (0.03% THD at 8 ohms)
 Studio-quality noise floor (-107 dB )
 LED indicators for input modes
 Class H output reduces AC power draw and heat
 Selectable clip limiters and subsonic filters
 Variable-speed fan for low noise
 Solid 2 ohm performance
 Both 1/4' TRS & XLR inputs, Speakon® and shock-proof binding post outputs

Protections

Full short circuit
Open circuit
Thermal
Infrasonic
Ultrasonic
RF protection

Specifications

Output Power
- Stereo 8Ohm: 320W
- Stereo 4Ohm: 525W
- Stereo 2Ohm: 900W
- Mono Bridge 8Ohm: 1100W
- Mono Bridge 4Ohm: 1800W
Distortion: <0.02%
 Noisefloor: -107dB
Frequency Repsonse: 20-20kHz
Damping Factor: >500
Cooling: Variable-speed fan, rear-to-front air flow
Dimensions: 483 (19'')(W) x 89 (H) (2 rack spaces) x 379 mm (D)
Weight: 9.5kg
