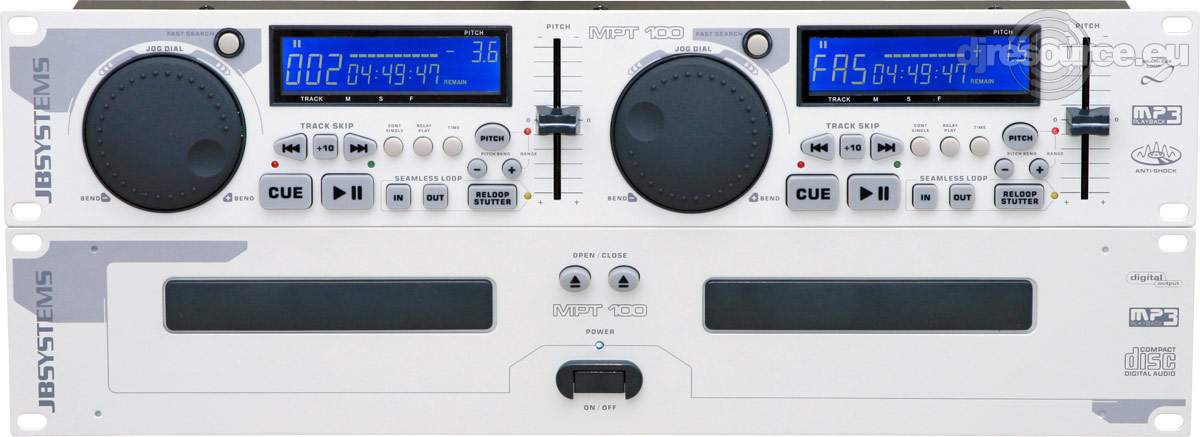

JB Systems MPT-100

Features

Playback (max. 999 MP3-files / 255 Folders on 1 CD)
MPEG1 layer3 (32 + 44,1 + 48kHz)
MPEG2 layer3 (16 + 22,05 + 24kHz)
MPEG2.5 layer3 (8 + 11,025 + 12kHz)
Supports both CBR and VBR bitrate modes.
Reads CD-DA, CD-R, CD-RW
Anti-shock Memory 20 seconds
Seamless loop + with stutter effect
Instant start
1/75sec Frame search, also on MP3
Pitch ranges: +/-4% +/-8% +/-16%, also on MP3
Pitch bend on jog wheel and buttons for perfect mixes
Auto cue function (-48dB )
4 different speed scan
Selectable elapsed, remain and total remain time display
Pitch display.
Single/continuous play
Relay play allows consecutive playback on two decks
S/PDIF digital output on RCA/cinch
60 seconds Transport Protection
20 tracks program play

Specifications

Power Supply: AC 100/240 V, 50/60Hz
Power Consumption: 20W
Output level: 2.0Vrms +/0,5dB @ 1kHz
Frequency response: 20-20.000Hz (+/-0.4db )
THD + noise: 0.015% @ 1kHz, 0dB
S/N Ratio (IHF-A): >92dB @ 1kHz.
Short access time (next track): <2sec
Long access time (track 1-20): <4sec
Laser Pickup: Sony KSM-213CCM 3spot detection 780nm
Electronic tracking: Full automatic digital tracking.
Dimensions Main Unit (WxDxH): 482 x 246 x 88.5 mm
Dimensions Controller (WxDxH): 482 x 76.5 x 88.5 mm
Weight: 7,8kg

DISC FORMAT
Possible file extensions: .mp3 ~ .MP3 ~ .mP3 ~ .Mp3
ISO9660: max. 64 character style
Joliet: max. 64 character style

CD-ROM FORMAT
Max. Folders: 255
Max. Files: 999

MP3 FORMATS
MPEG1 Layer3 (ISO/IEC11172-3): mono / stereo sampled at: 32 - 44,1 - 48kHz
Bitrates: 32 – 320 Kbps
Bitrate modes: CBR (Constant Bitrate) or VBR (Variable Bitrate)
MPEG2 Layer3 (ISO/IEC13818-3): mono / stereo sampled at: 16 – 22,05 - 24kHz
Bitrates: 32 – 160 Kbps
Bitrate modes: CBR (Constant Bitrate) or VBR (Variable Bitrate)
MPEG2,5 Layer3: mono / stereo sampled at: 8 – 11,025 - 12kHz
Bitrates: 32 – 160 Kbps
Bitrate modes: CBR (Constant Bitrate) or VBR (Variable Bitrate)
