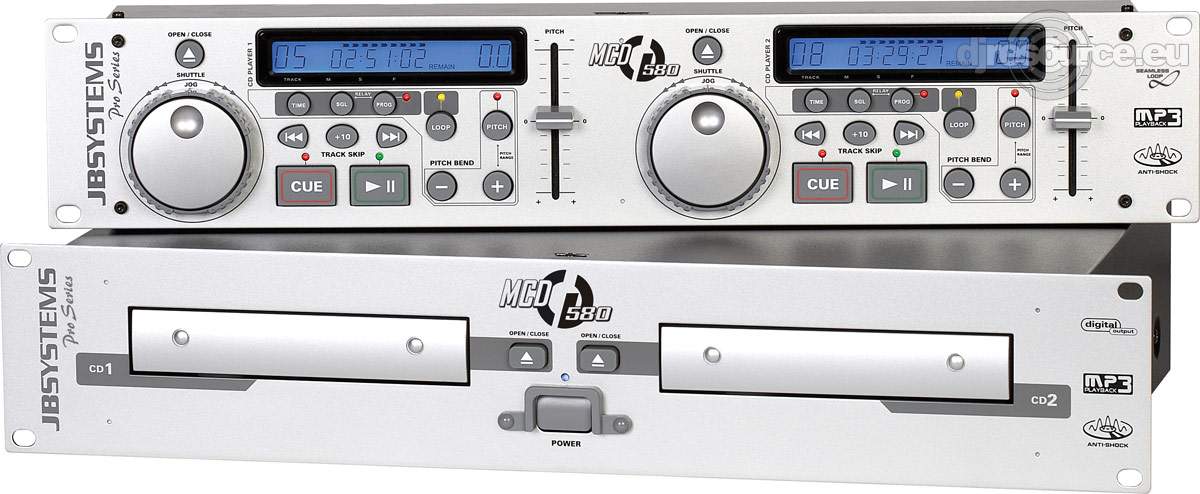

JB Systems MCD 580

The MCD 580 is also available in sengle deck version as JB-System MCD 300.

Features

Reads CD-DA, CD-R, CD-RW
Anti-shock Memory 20seconds
Full MP3 Playback (max. 999 MP3-files / 255 Folders on 1 CD)
Supports both CBR and VBR bitrate modes.
Seamless loop, also on MP3
Instant memory start, also on MP3
1/75sec Frame search, also on MP3
Pitch ranges: +/-8% +/-12% +/-16%, also on MP3
Pitch bend on jog wheel and buttons for perfect mixes
Fader start/stop (back cue)
Auto cue function (-48dB )
4 different speed scan
Selectable elapsed, remain and total remain time display
Pitch display.
Single/continuous play
Relay play allows consecutive playback on two decks
S/PDIF digital output on RCA/cinch
60 seconds Transport Protection
20 tracks program play

Specifications

Power Supply: AC 230 V, 50Hz
Power Consumption: 19W
Output level: 2.0Vrms +/1dB @ 1kHz
Frequency response: 20-20.000Hz (+/-0.4dB )
THD + noise: 0.01% @ 1kHz, 0dB
S/N Ratio (IHF-A): >90dB @ 1kHz.
Short access time (next track): <2sec
Long access time (track 1 to 20): <4sec
Laser Pickup: Sony KSM-213VCS 3spot detection 780nm
Electronic tracking: Full automatic digital tracking.
  Dimensions Drive: 482(W) x 88,8(H) x 262(D) mm
  Dimensions Controller: 482(W) x 88,8(H) x 97(D) mm
  Weight Drive : 5kg
Weight Controller : 1,75kg

Disc Formats
Possible file extensions: .mp3 ~ .MP3 ~ .mP3 ~ .Mp3
ISO9660: Level1 (max. 8”/8.3” character style)
Level2 (max. 31/30 character style)
Joliet: max. 64/64 character style
CD-ROM sector format: mode-1 only
Max. Folders: 255
Max. Files: 999

MP3 Formats
MPEG1 Layer3 (ISO/IEC11172-3): mono / stereo sampled at: 32 - 44,1 - 48kHz Bitrates: 32 – 320 Kbps
MPEG2 Layer3 (ISO/IEC13818-3): mono / stereo sampled at: 16 – 22,05 - 24kHz Bitrates: 8 – 160 Kbps
MPEG2,5 Layer3: mono / stereo sampled at: 8 – 11,025 - 12kHz Bitrates: 8 – 160 Kbps
