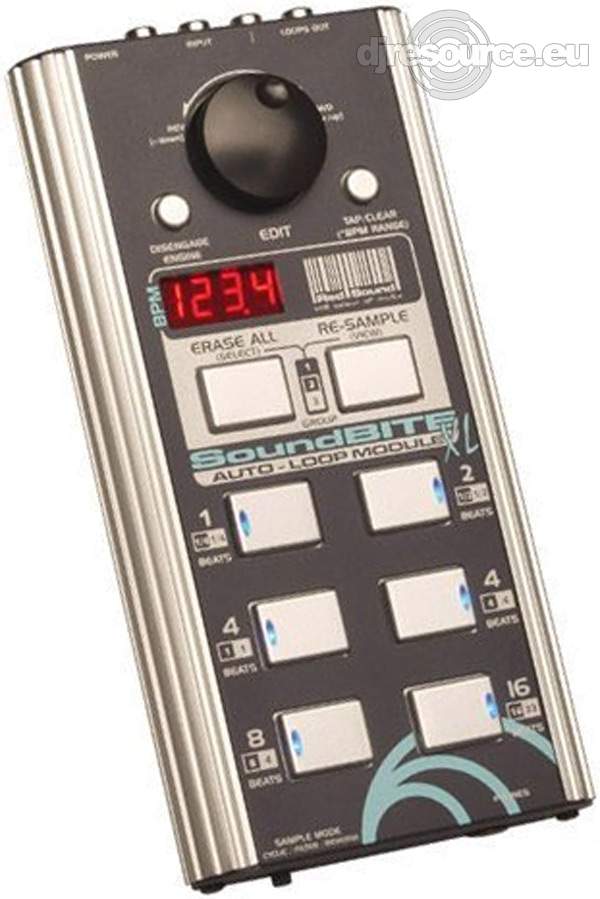

Redsound SOUNDBITE XL

The classic SoundBITE XL has become the industry standard loop sampler! Used by top Djs the world over (including Carl Cox, Richie Hawtin and Pete Tong), SoundBITE XL is now regarded as an essential part of every DJ rig!

Offering state-of-the-art BPM detection for perfect loop samples at the touch of a button, SoundBITE XL creates the loops seamlessly and automatically syncs them to your main mix tempo.

This easy to use, affordable module includes additional features for creative mixing, including a jog wheel for applying analog style filter effects and selectable reverse loop playback. The SoundBITE XL is easy to install and comes with all the hardware needed to connect it to your existing DJ rig!

Featuring Red Sound's acclaimed V3 BPM engine, SoundBITE XL automatically creates seamless loop samples that cycle continuously in synchronisation with each other and the music source.


Features
AUTOMATIC LOOP SAMPLES : Create perfect loops at the touch of a button!
LOOPS UP TO 32 BEATS LONG : wide range of loop lengths, from 1/4 beat right up to 32 beats!
ANALOG STYLE FX : Apply cool filter effects to the loop output or audio input in real-time!


Specifications
Sample rate /Conversion resolution: 96kHz / 24 bit
Polyphony: 6 sample loops
BPM range: 60 - 230BPM (3 ranges)
Connections: Audio input, Loops output, Monitor output
Effects: Low-Pass Filter, High-Pass Filter, Band-Pass Filter
Sample loop length:
- Grp1:- 1, 2, 4, 4, 8, 16 (default)
- Grp2:- 1/4, 1/2, 1, 4, 8, 16
- Grp3:- 1/4, 1/2, 1, 4, 4, 32

AC adapter input Power Supply: 9vDC 500mA minimum
Dimensions: 202(H)x106(W)x30(D)mm
Weight: 1Kg
