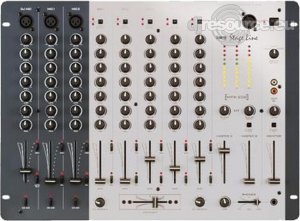

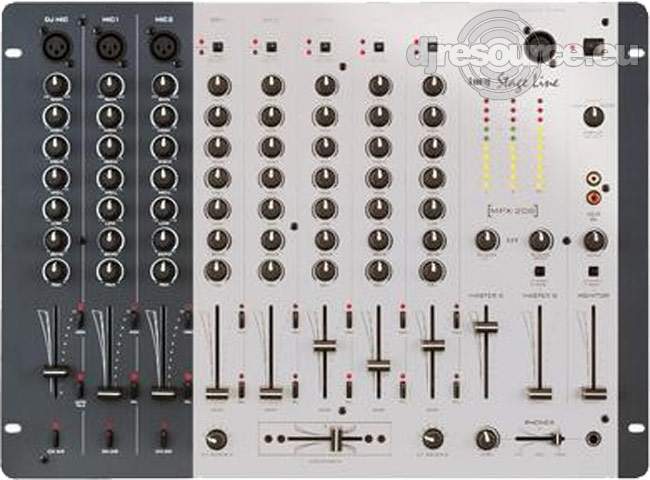

Stageline MPX-2008
on 28-05-2008 21:48
on 08-06-2008
Upload additional Image
OK we understand you don't like ads (so don't we) but,
Please consider making this website possible by disabling your Ad Blocker.
Or become a Gold Member, they don't see ads.
Please consider making this website possible by disabling your Ad Blocker.
Or become a Gold Member, they don't see ads.
Product Information
Features
8 channel stereo audio mixer
5 stereo input channels
LED display, gain controls, 4-way equalizer
1 DJ microphone channel with switchable automatic talkover
Stereo effect way (send/return)
Stereo AUX input with level control
2 master outputs and 1 monitor output, master B and monitor with mono/stereo selector switch
Eecord output
LED level display, switchable master A/master B/monitor
Fader start for the stereo inputs (channels 1-5)
Crossfader with assignment switches for channels 1-5
Adjustable headphone output
Connection for gooseneck light GNL-404 or GNL-405
Equalizer
- Bass ±15dB/20Hz
- Midrange ±15dB/300Hz
- Midrange ±15dB/3kHz
- Treble ±15dB/20kHz
Specifications
Headphone output : ≥ 8Ω
Frequency range : 20-20,000Hz
THD : 0.03%
S/N ratio : > 45dB
Talkover : -12dB
Gooseneck light : 12V/5W, 4-pole XLR
Dimensions : 482x355x115mm, 8HE
Weight : 7.5kg
8 channel stereo audio mixer 5 stereo input channels LED display, gain controls, 4-way equalizer 1 DJ microphone channel with switchable automatic talkover Stereo effect way (send/return) Stereo AUX input with level control 2 master outputs and 1 monitor output, master B and monitor with mono/stereo selector switch Eecord output LED level display, switchable master A/master B/monitor Fader start for the stereo inputs (channels 1-5) Crossfader with assignment switches for channels 1-5 Adjustable headphone output Connection for gooseneck light GNL-404 or GNL-405 Equalizer- Bass ±15dB/20Hz
- Midrange ±15dB/300Hz
- Midrange ±15dB/3kHz
- Treble ±15dB/20kHz
Specifications
Headphone output : ≥ 8Ω Frequency range : 20-20,000Hz THD : 0.03% S/N ratio : > 45dB Talkover : -12dB Gooseneck light : 12V/5W, 4-pole XLR Dimensions : 482x355x115mm, 8HE Weight : 7.5kg
