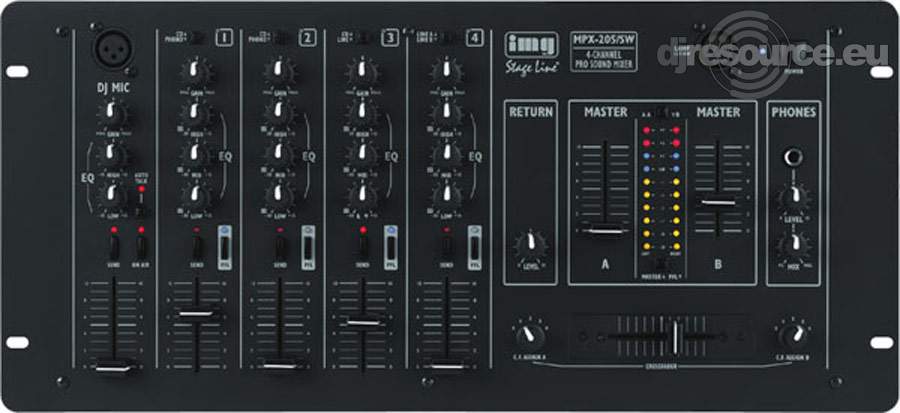

Stageline MPX-205

Submitted by Lead Flag

on 21-04-2008 19:37

Upload additional Image

Model : MPX-205

Brand : Stageline
Brand website : www.img-stageline.com

Category : Mixer

Vote :

Make Favourite1 votes for Favourite Mixer

4 DJ Booths with Stageline MPX-205

10767
6917
6655
10753

Show all 4 DJ Booths

OK we understand you don't like ads (so don't we) but,
Please consider making this website possible by disabling your Ad Blocker.
Or become a Gold Member, they don't see ads.

Product Information

Features

1 DJ mic, 4 stereo channels
CH 1 and 2 switchable line/phono
CH 3 and CH 4 line/line
Stereo effect send/return
2 master outputs
Automatic talkover and on-air switch for DJ mic
LED level display, can be switched between the two master outputs and PFL
3-way equalizer with cut function for stereo channels
2-way tone control for DJ mic
Gain control for each input
Pre-fader listening (PFL) to the stereo inputs and outputs via adjustable headphone output
Crossfader with assignment switches
Connection for gooseneck light GNL-404 or GNL-405
Equalizer per Channel
- Bass +15dB, -30dB/50Hz
- Mid +15dB, -30dB/1kHz
- High +15dB, -30dB/10kHz

Specifications

Headphone output : ≥ 8Ω
Frequency range : 20-20,000Hz
THD : 0.05%
S/N ratio : > 50dB
Talkover : -12dB
Gooseneck light : 12V/5W, 4-pole XLR
Power supply : 230V/50Hz 14VA
Dimensions : 482x222x110mm (5 HE rackspace)
Weight : 4.3kg

Do you like the Stageline MPX-205 ??

Gear

Stageline Mixer

There are 1 Comments

Mitchmatch wrote on 07-01-2011 @ 16:00

Goede mixer voor een beginnende dj! Het is gewoon basic?en de schuiven zijn uitstekend...
Ookal is Stageline (monacor) een merk waar veel negatieve dingen worden over gezegd dit is en blijft gewoon goed.
