Pioneer DJ VSW-1

Submitted by Lead Flag

on 08-03-2008 16:21 Images: Lead

Upload additional Image

Model : VSW-1

Brand : Pioneer DJ
Brand website : www.pioneerdj.com

Category : Video

Availability : 2004 - 2008

This product has been discontinued

Vote :

Make Favourite1 votes for Favourite Video

More Info & Backgrounds
Pioneer DJ VSW-1 Article

OK we understand you don't like ads (so don't we) but,
Please consider making this website possible by disabling your Ad Blocker.
Or become a Gold Member, they don't see ads.

Product Information

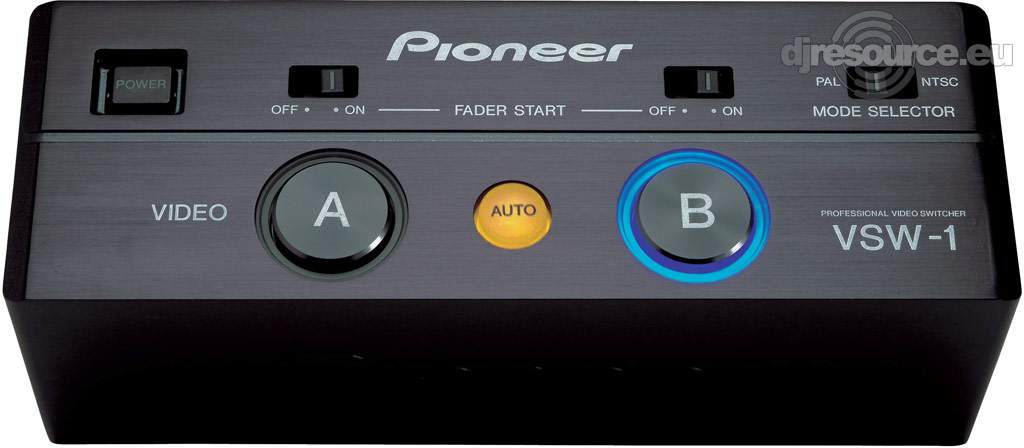

The Pioneer VSW-1 is a video switcher that can optionally be triggered by the faderstart on a DJ Mixer.

When using Pioneer DVJ-1000 or Pioneer DVJ-X1 to play DVD, you can use the VSW-1 to do the video switching.

The VSW-1 need to be set PAL or NTSC depanding on the discs played, both discs need to be in the same Mode.

When a mixer is connected with Fader Start cables, the VSW-1 switches a source off when the fader is down. Video is shown again when the fader leaves the lowest position.

Auto mode can be disabled so a switch is only made when the A or B button is pressed.

It switches and or converts the video of the input and puts it on the output, the switch glitch is suppressed.

Features

Supports PAL and NTSC
Switches video output between input A and B
Faderstart suppported

Specifications

Power : 220-240VAC @ 50/60Hz
Consumption : 9W
Dimensions (WxDxH) : 350 x 90 x 86 mm
Weight : 1.4 kg

Do you like the Pioneer DJ VSW-1 ??

In-depth info in our
Pioneer DJ VSW-1 Article

Pioneer DJ Video

There are 1 Comments

Lead wrote on 08-10-2004 @ 02:10

Also see : www.dvj-x1.com
