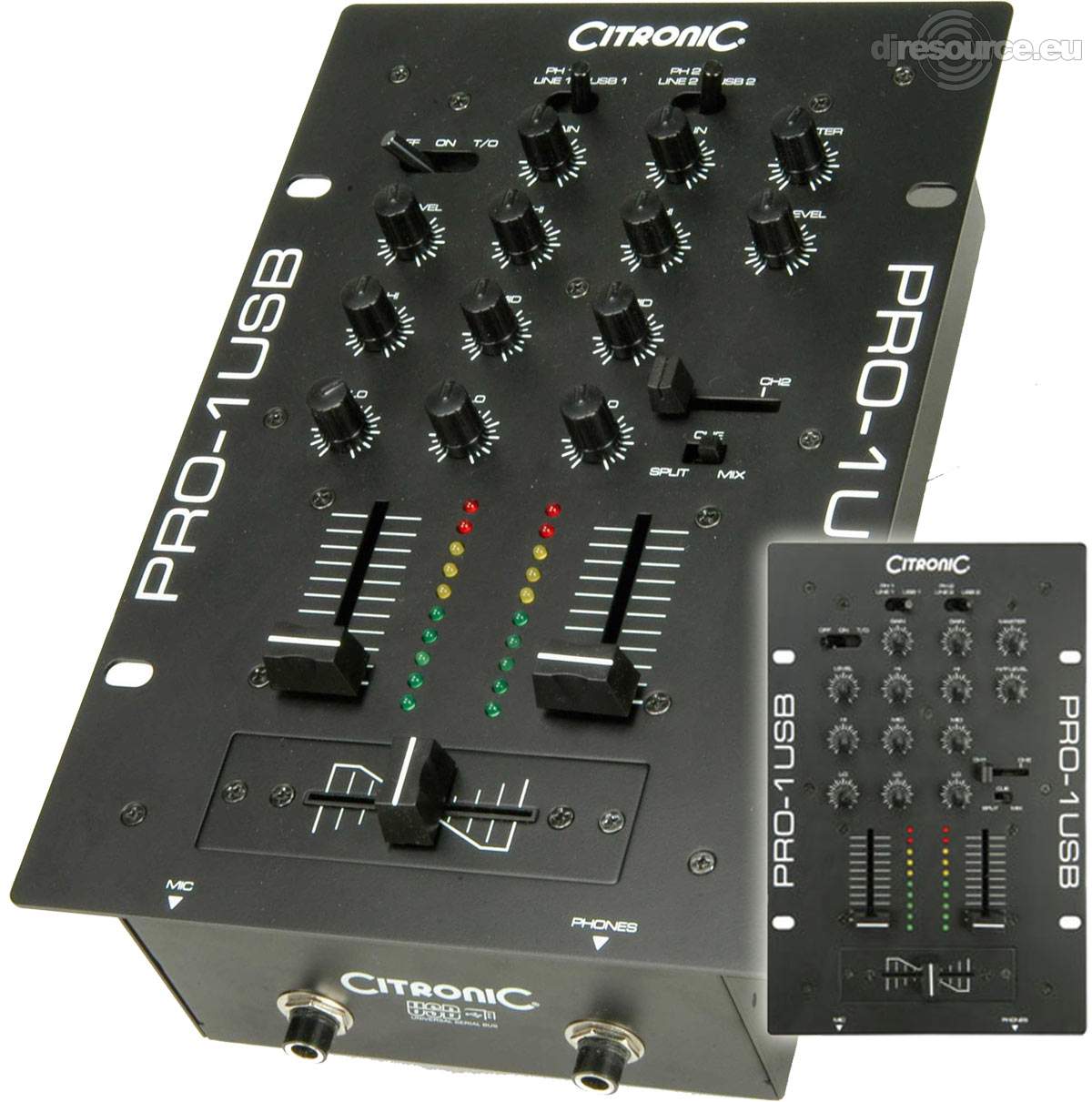

Citronic PRO-1 USB

The PRO-1USB is a 2-Channel mixer with 2 built-in USB soundcards, this allows you to connect it directly to a PC/Mac or other USB device and play audio directly into the mixer. The USB is multi-directional so this also allows you to record back to the computer and save you mixes using various recording software. USB aside, the mixer will also accept connection of 2 line level devices such as CD-players and 2 turntables, each channel has an individual gain control and 3-band EQ giving you full control over the audio signal. The mixer also features a microphone input with gain control, 2-band EQ and talkover facility. The headphone section features H/P mix or split cue, ideal for mixing before output.


Features
2 channel, 7 input - 2 phono, 2 line, 2 USB, 1 mic
2-way built-in USB soundcards
No drivers required - installs with Windows XP or Mac OS X
Mains adaptor and 2 x 1.8m USB connecting leads supplied
Individual gain controls
3-band music EQ
2-band mic EQ
Mic talkover function
Headphone split cue or mix facility
10-bar LED monitor display


Specifications
Headphone output 32 ohms, 1.5V (±0.3V)
Frequency response 20Hz - 20kHz (±3dB)
Input:Mic 2mV
Input:Phono 3mV
THD <0.09%
Input:Line 200mV
Output:Master 4.5V (±0.5V)
Power supply 9Vac, 500mA
Dimensions 270 x 178 x 100mm
Weight 1.9kg
