Model : MPX-1

Brand : Stageline
Brand website : www.img-stageline.com

Category : Mixer

Vote :

Make FavouriteNobody voted this as Favourite Mixer yet.

OK we understand you don't like ads (so don't we) but,
Please consider making this website possible by disabling your Ad Blocker.
Or become a Gold Member, they don't see ads.

Product Information

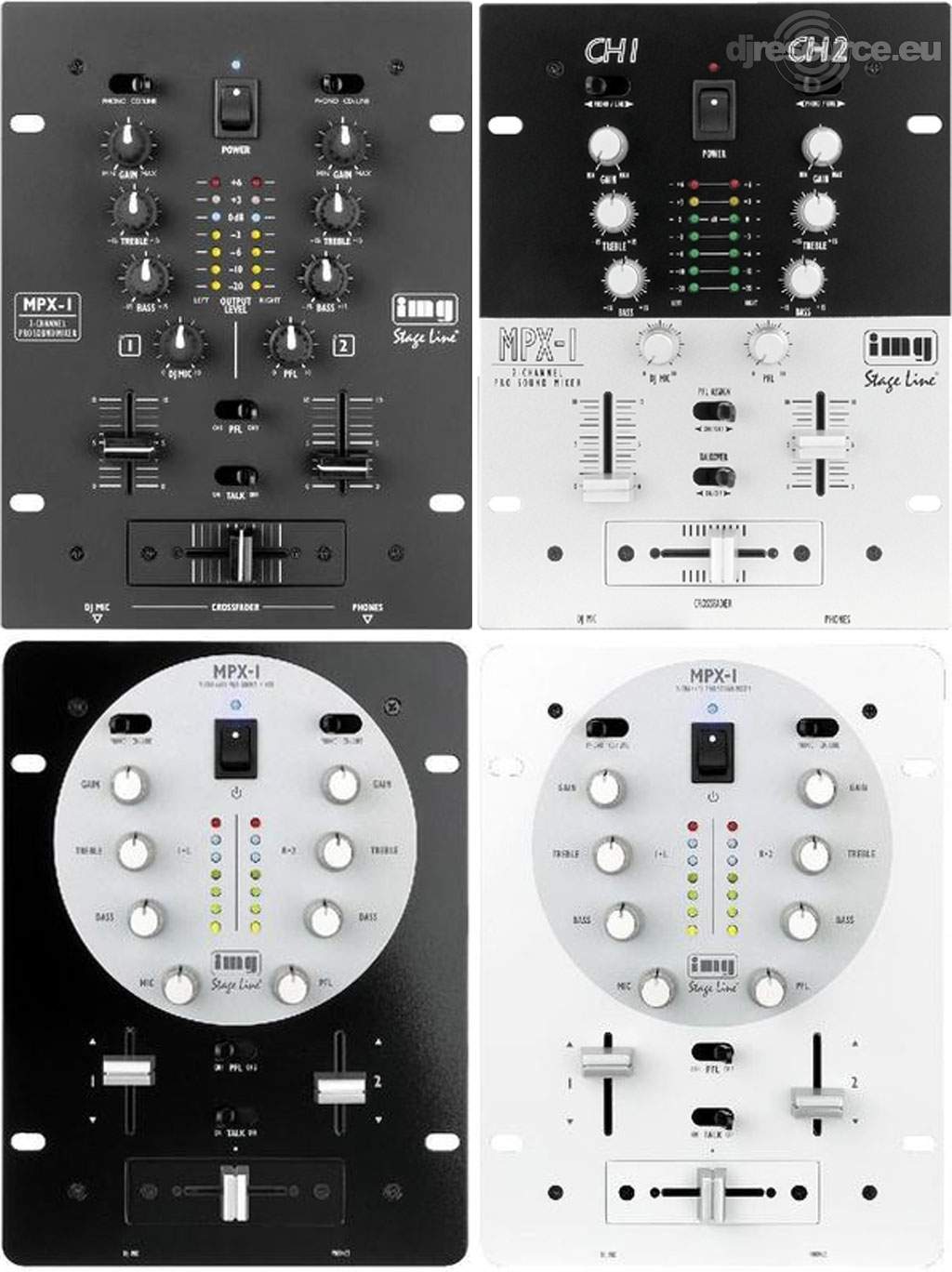

This mixer is an OEM product and is available in 4 designs as shown in the image.

Features

Stereo LED level display
Switchable phono/line
2 stereo input channels, each with gain control and 2-way equalizer
DJ microphone channel with talkover, manually selectable
Pre-fader listening (PFL) via adjustable headphone output
Replaceable crossfader
Especially easy-sliding HQ faders, with additional guides
Stereo LED level display
Equalizer
- Bass ±12dB/50Hz
- Treble ±12dB/10kHz

Specifications

Frequency range: 20-20,000Hz
THD : 0.1%
S/N ratio (Line) : 61dB
Talkover : -16dB
Power supply : 12V˜/700mA from230V˜/50Hz/10VA
Admiss. ambient temp : 0-40 °C
Dimensions : 164x218x77mm
Weight : 1.2kg
