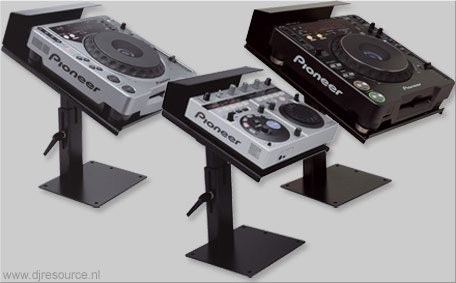

Pioneer ProDJ Bracket all together

Mount your gear in the Air
The supports are both solid and durable, incorporating a weighted balanced design made out of 4mm steel with a powder coated finish. Product longevity and space within the DJ booth is maximised by the tailored fit each stand gives to it’s partnering product.

Well thought out specification includes anti-vibration pads, six fixing holes with supplied screws as well as height and plate angle adjustment.

Other design touches such as cable management through the stem of the bracket and space for heat dissipation prove Pioneer offer the best long-term solution for your Pioneer PRO-DJ products.



PRODJ-Bracket
A complete bracket consists out of 2 separate available parts : the Bracket and a Plate (depends on the equipment you are using). The bracket itself is universal. Owners of the existing Pioneer base brackets for use with the CDJ-500-S will be pleased to know it is compatible with all the latest plates supporting the new models.

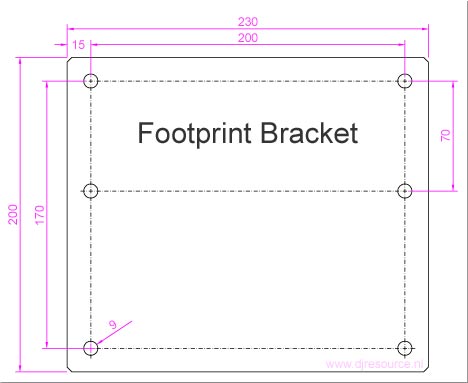

Footprint
To ensure a solid way of mounting the brackets, the base plate of the bracket has 6 holes to use. Each is 9mm in diameter.


Pioneer ProDJ Bracket - footprint





PRODJ-PLATE
On top of a Bracket you have to mount a plate that fits the equipment that you would like to mount on the Bracket. There are 3 different types available. Here are some images and dimensions :

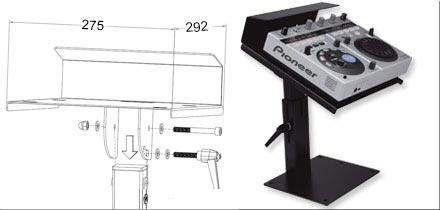

PRODJ-Bracket + PRODJ-500-PLATE

Pioneer ProDJ Bracket - EFX500

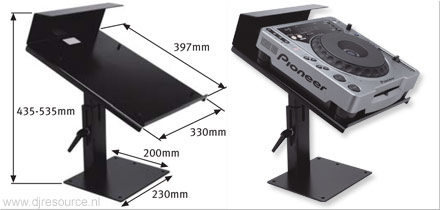

PRODJ-Bracket + PRODJ-800-PLATE

Pioneer ProDJ Bracket - CDJ-800

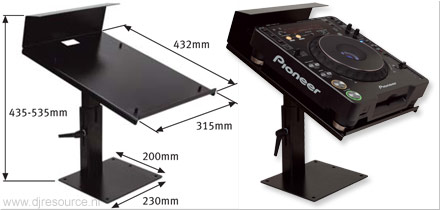

PRODJ-Bracket + PRODJ-1000-PLATE

Pioneer ProDJ Bracket - CDJ-1000MK2



PRODJ-EFX1000-PLATE

Pioneer ProDJ Bracket - EFX-1000



PRODJ-DVJX1-PLATE

Pioneer ProDJ Bracket - DVJ-X1
