 Ortofon Q.BERT

Submitted by jannickv  Flag on 26-03-2008 23:56
Last edited by Lead  Flag on 02-06-2018

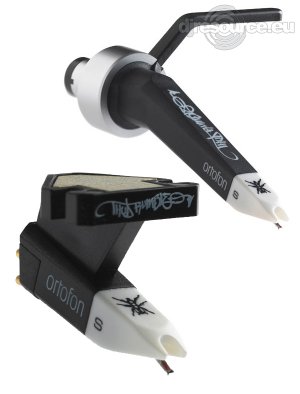

Ortofon Q.BERT Stylus & Cartridge

Ortofon

Model : Q.BERT

Brand : Ortofon
Brand website :  www.ortofon.com

Category : Stylus & Cartridge



Vote :

Nobody voted this as Favourite Stylus & Cartridge yet.






Product Information


Ortofon's latest innovative dj cartridge, designed in conjunction with DJ Q-Bert and Thud Rumble. This cartridge was created for optimal performance across the board and features Ortofon's highest specs for scratching, record wear and output. The design is a combination of two of Ortofon's best cartridges, taking the sound technology from their popular top of the line Nightclub and the performance aspects of the Scratch, while improving on both in certain areas.

To begin with, initial testing shows that the QBert's stick to the groove as well as any other scratch cartidge on the market- no jumping or skipping even under the most trying circumstances. The resulting effects on record wear remain to be seen, but according to Ortofon, these are their best thus far. The output is also notable, coming in at an amazing 11-12mV, which is the highest of any dj cartridge we carry. And of course they maintain the legendary Ortofon sound quality with a wide frequency response and excellent reproduction of bass, mids, and treble. The QBerts are the first cartridge to excel in all these directions at once, bridging the gap between true scratching ability and professional grade sound quality.

Specifications

feature Output voltage at 1000 Hz, 5cm/sec. 11 mV
feature Channel balance at 1 kHz 1,5 dB
feature Channel separation at 1 kHz 22 dB
feature Channel separation at 15 kHz
feature Frequency range at - 3dB 20-20.000 Hz
feature Frequency response 20-20.000 Hz - 3 dB
feature FIM distortion at recommended tracking force, DIN 45.542 < 1%
feature Tracking ability at 315Hz at recommended tracking force 90 µm
feature Compliance, dynamic, lateral 12 µm/mN
feature Stylus type Spherical
feature Stylus tip radius R 18 µm
feature Equivalent stylus tip mass 0,6 mg
feature Tracking force range 3,0 g 30 mN
feature Tracking force, recommended 4,0 g (40 mN)
feature Tracking angle 20°
feature Internal impedance, DC resistance 1680 Ohm
feature Internal inductance 920 mH
feature Recommended load resistance 47 kOhm
feature Recommended load capacitance 200-400 pF
feature Cartridge color, body/stylus Blue/Blue
feature Cartridge weight 18,5 g
feature Replacement stylus unit Q.Bert
