 Ortofon CONCORDE DJ

Submitted by Lead  Flag on 26-03-2008 23:36

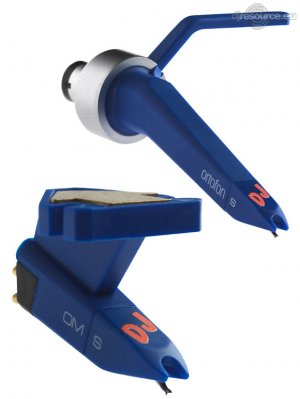

Ortofon CONCORDE DJ Stylus & Cartridge

Ortofon

Model : CONCORDE DJ

Brand : Ortofon
Brand website :  www.ortofon.com

Category : Stylus & Cartridge



Vote :

1 votes for Favourite Stylus & Cartridge






Product Information


This is probably the most widely used Ortofon cartridge, featuring high technical ratings across the board and an excellent reputation. The DJ-S is a proven professional-grade cartridge that is suitable for all types of DJs. It has a high output at 6.0mV and functions with good skip resistance, moderate record wear and durable construction. Before the Scratch came out, this was considered the best Ortofon for hip hop djs. This set one extra stylus (which offsets your initial cost).

Specifications

feature Output voltage at 1000 Hz, 5cm/sec. 6 mV
feature Channel balance at 1 kHz 2 dB
feature Channel separation at 1 kHz 23 dB
feature Channel separation at 15 kHz 15 dB
feature Frequency range at - 3dB 20-20.000 Hz
feature Frequency response 20-18.000 Hz + 3 / - 2 dB
feature FIM distortion at recommended tracking force, DIN 45.542 < 1%
feature Tracking ability at 315Hz at recommended tracking force 80 µm
feature Compliance, dynamic, lateral 9 µm/mN
feature Stylus type Spherical
feature Stylus tip radius R 18 µm
feature Equivalent stylus tip mass 0,6 mg
feature Tracking force range 2,0-4,0 g (20-40 mN)
feature Tracking force, recommended 3,0 g (30 mN)
feature Tracking angle 20°
feature Internal impedance, DC resistance 750 Ohm
feature Internal inductance 450 mH
feature Recommended load resistance 47 kOhm
feature Recommended load capacitance 200-600 pF
feature Cartridge colour, body/stylus Blue/Blue
feature Cartridge weight 18,5 g
feature Replacement stylus unit DJ S
