Ortofon ARKIV Stylus & Cartridge



Ortofon

Model : ARKIV

Brand : Ortofon
Brand website :  www.ortofon.com

Category : Stylus & Cartridge



Vote :

Nobody voted this as Favourite Stylus & Cartridge yet.






Product Information

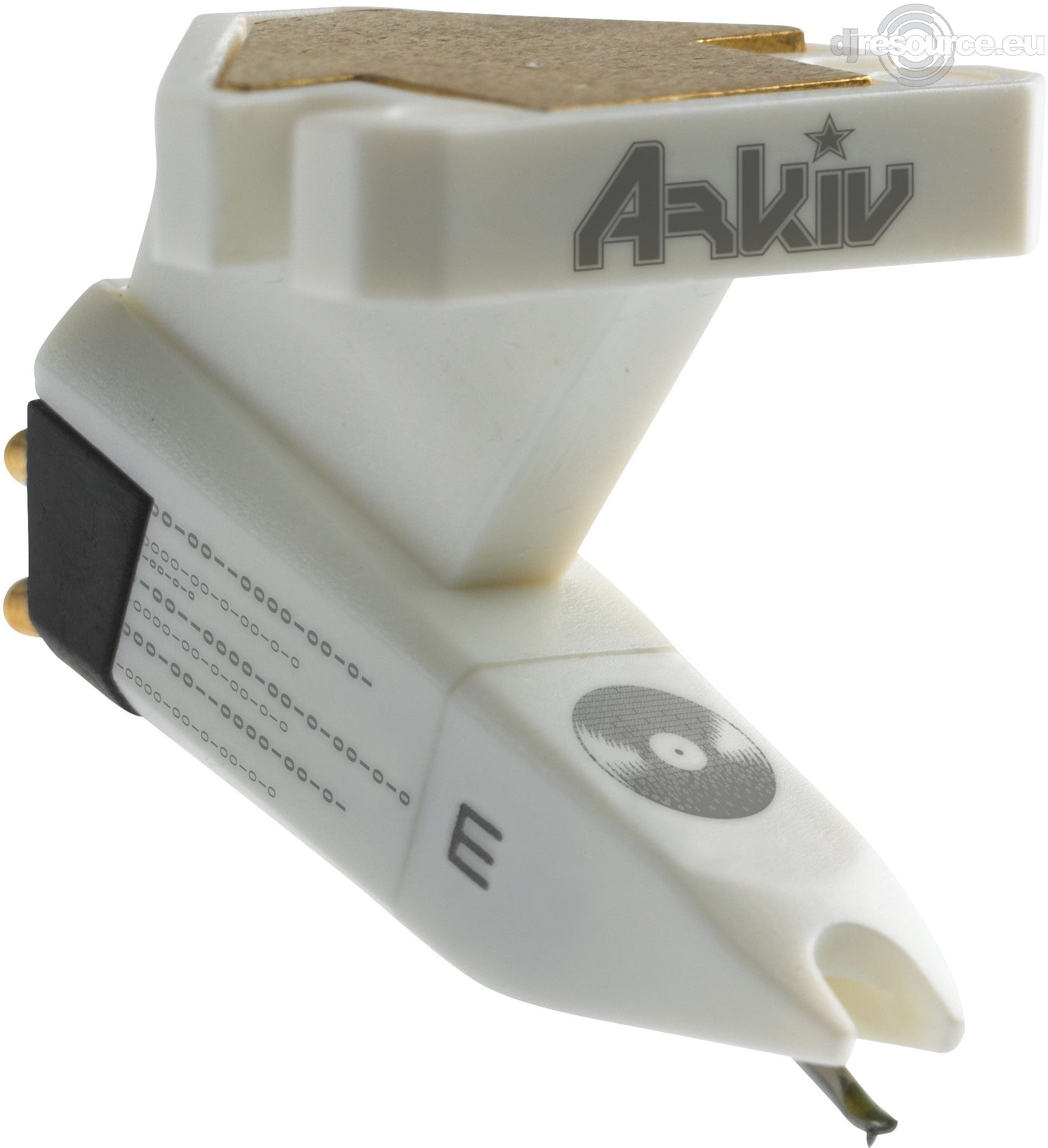

The Arkiv cartridge is the first Ortofon cart specifically design to provide optimized sound quality specifically for the recording process. Featuring an output of 6mV and an elliptical stylus for extended high frequency response, the Arkiv boasts clear and accurate sound reproduction and remarkable stereo imaging making it an excellent choice for any recording situation (capturing your vinyl to digital format, sampling, etc.).

Scratching and back cueing is not recommended with this cartridge.

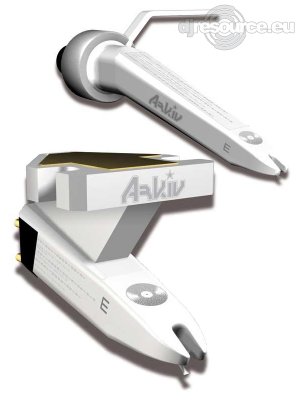

Set includes one extra stylus (which offsets your initial cost).

Specifications

feature Output voltage at 1000 Hz, 5cm/sec. 6 mV
feature Channel balance at 1 kHz 2 dB
feature Channel separation at 1 kHz 23 dB
feature Channel separation at 15 kHz 15 dB
feature Frequency range at - 3dB 20-22.000 Hz
feature Frequency response 20-20.000 Hz ± 2 dB
feature Tracking ability at 315Hz at recommended tracking force 80 µm
feature Compliance, dynamic, lateral 9 µm/mN
feature Stylus type Special elliptical
feature Stylus tip radius r/R 13/25 µm
feature Tracking force range 2,0-4,0 g (20-40 mN)
feature Tracking force, recommended 3,0 g (30 mN)
feature Tracking angle 20°
feature Internal impedance, DC resistance 750 Ohm
feature Internal inductance 450 mH
feature Recommended load resistance 47 kOhm
feature Recommended load capacitance 200-600 pF
feature Cartridge colour, White/White
feature Cartridge weight 18,5 g
feature Replacement stylus unit Arkiv
