Synq PE2400

Submitted by jannickv  Flag on 15-03-2008 @ 23:05
Synq

Model : PE2400

Brand : Synq
Brand website :  synq-audio.com

Category : Amplifier



Vote :

Nobody votes this as Favourite yet.

Equipment not yet in use by any of our members

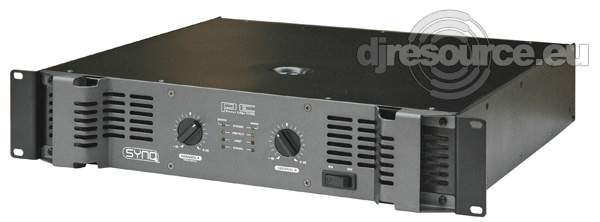

Synq PE2400  Amplifier

:: Product Description
The Power Edge “Class H” amplifiers are designed for pure power. Thanks to the big power reserve, excellent limiters and protections they can be used in all kinds of different applications such as discotheques, clubs, mobile audio, PA, rental, theater, …
Very compact housing, only 2U high
PE-series can be driven in 2Ω
Soft start
Very efficient cooling using variable speed fans
Automatic current limiter
Short circuit protection
DC fault protection
High temperature protection
Overload protection
Can be used in stereo, bridge and mono mode
Balanced inputs with combo connectors
Balanced XLR signal outputs for daisy chaining
Input sensitivity correction: 0,775V / 1,0V / 1,44V
3 Speakon outputs.

:: Technical Information
Power stereo 8Ω: 2x 800Wrms
Power stereo 4Ω: 2x 1200Wrms
Power stereo 2Ω: 2x 1440Wrms
Power bridge 8Ω: 1x 2400Wrms
Power bridge 4Ω: 1x 2800Wrms
Freq. Resp. (+/-0,5dB): 20 - 20000Hz
Input Sensitivity: 0,775V~1,00dB~1.44V
Input impedance: 20 kΩ
S/R ratio (A-Weighted): >100dB
Damping factor: >450
Slew Rate: 60V/uS
Cooling: variable speed fans
Signal inputs: Balanced XLR/Jack
Signal outputs: Balanced XLR
Speaker outputs: Speakon®
Power supply: AC230V / 50Hz
Dimensions(WxHxD): 483x88x440mm (19"/2U)
Weight(kg): 25kg
