JB-Systems MSD 900

Submitted by jannickv  Flag on 15-03-2008 @ 21:29
Last edited by Lead  Flag on 07-11-2008

Model : MSD 900

Brand : JB-Systems
Brand website :  www.jb-systems.eu

Category : All-in-One System

Vote :

1 votes for Favourite All-in-One System

Equipment not yet in use by any of our members

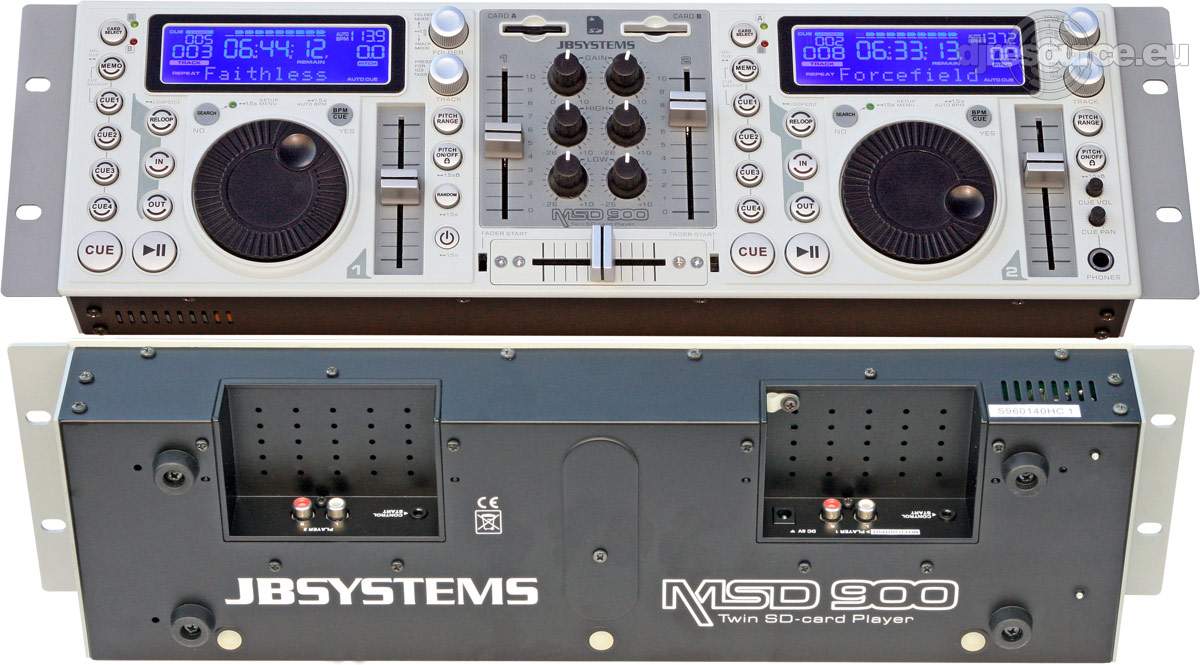

JB-Systems MSD 900  All-in-One System

Features Controller
feature Twin MP3-player for DJ’s with built-in audio mixer.
feature Supports 2 SD memory cards up to 4GB
feature Both players can read simultaneously from 1 card
feature Alphanumeric LCD display supports ID3V2 tags
feature MP3 Supports both CBR and VBR bit rate
feature Ultra fast memory start within 10msec
feature Real-time cue (“Cue on the fly&rdquoWinking my eye
feature 4 Hot Cue buttons can hold cue points and/or seamless loops
feature Up to 4 Seamless loops for every track with reloop/stutter
feature Seamless real-time loop edit function for both begin and end points!
feature Full automatic beat counters with extra TAP-function
feature Pitch Lock (Master Tempo):
feature Pitch ranges: +/-4% +/-8% +/-16% +16%/-100%
feature Pitch bend on jog wheel with adjustable pitch bend parameter
feature 100% anti-shock (No CD's are used)
feature 1/75sec frame search
feature Fader start: on internal mixer or via external inputs
feature Auto Cue function (-48dB)
feature Random play (all tracks on the memory card are played in random order)
feature Selectable elapsed and remain time display
feature Single/continuous play
feature Folder mode: track search limited to one folder
feature Track mode: track search on the entire memory card

Features Internal 2 channel mixer
feature Both channels have gain and digital treble/bass controls
feature Both channels equipped with “easy glide” VCA-DJ-faders
feature Removable VCA crossfader with faderstarts
feature Headphone with volume and high power amplifier
feature PFL monitoring with mixing of cue and master signals in headphone
feature Several working modes
 - With internal mixer: just connect the mixed output to an amplifier or powered loudspeakers
 - No internal mixer but with tone controls: 2 separate outputs, both with tone controls active.
 - No internal mixer or tone controls: 2 separate outputs, both without tone controls.

feature Easy firmware updates via internet downloads.
feature Power Supply: DC 6V / 1,5A ~ Special AC/DC adapter should be used!
feature Frequency response: 20-20.000Hz (+/-0.5dB)
feature THD + noise: <0.011% @ 1kHz, 0dB
feature S/N Ratio (IHF-A): >99dB @ 1kHz.
feature Player outputs: 2V @ 100kΩ
feature Mixer output: 2V @ 100kΩ
feature Tone controls: +10/-26dB @ 10kHz / 100Hz
feature Headphone: 80mW@32Ω
feature Dimensions: 482 (W) x 132 (D) x 74.8 (H)mm
feature Weight: 2,2kg
